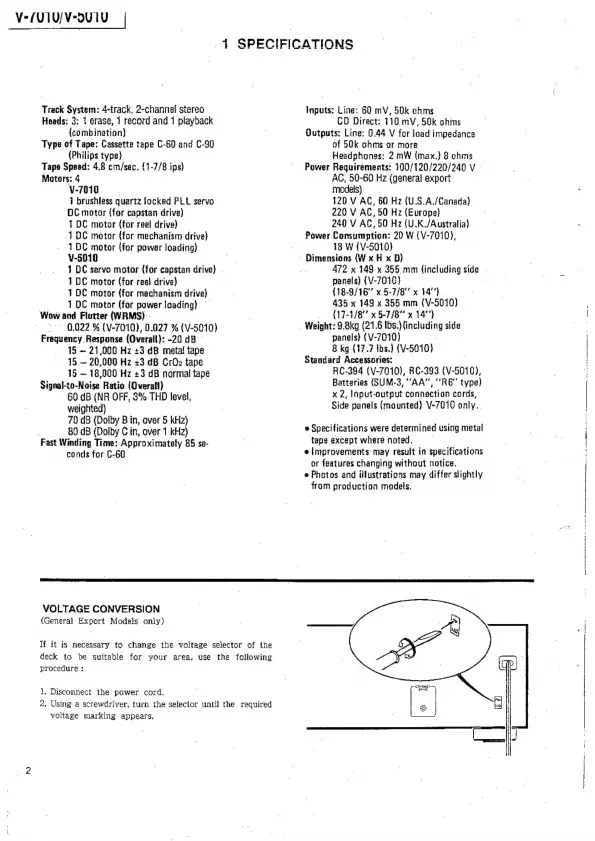

-1 SPECIFICATIONS
Track System: 4-track, 2-channel stereo
Heads: 3: 1 erase, 1 record and 1 playback
{combination)
Type of Tape: Cassette tape C-60 and C-90
{Philips type)
Tape Speed: 4.8 cm/sec. {1-7/8 ips)
Motors: 4
¥-7010
1 brushless quartz focked PLL servo
DC motor {for capstan drive)
1 BC motor (for reel drive)
.1 OC motor (for mechanism drive)
1 DC motor (for power loading)
v-5010
1 DC servo motor (for capstan drive) -
1 DE motor (for reel drive}
1 DC motor (for mechanism drive)
. 1 DC motor (for power loading)
Wow and Flutter (WRMS)-
- 0,022 % {V-7010), 0.027 % (V-5010)
Frequency Response (Overall}: -20 dB
15 ~ 21,000 Hz +3 dB metal tape
15.— 20,000 Hz +3 dB GrOz tape
15 ~ 18,000 Hz +3 dB normal tape
Signal-ta-Noise Ratio (Overal!}
60 dB (NR OFF, 3% THD level,
weighted)
70 dB (Dolby B in, over 5 kHz)
80 dB (Dolby C in, over 1 kHz)
Fast Winding Time: Approximately 85 se-
conds for C-60
Inputs: Line: 60 mV, 50k chms
CD Direct: 110 mV, 50k ohms
Outputs: Line: 0.44 V for load impedance
of 50k ohms or more
Headphones: 2 mW (max.}) 8 ohms
Power Requirements: 100/120/220/240 V -
AC, 50-60 Hz (general export
models)
120 V AC, 60 Hz {U.S.A./Canada)
220 V AC, 50 Hz (Europe)
240 V AC, 50 Hz (U.K./Australia)
Power Consumption: 20 W {V-7010),
18 W (V-5010)
’ Dimensions (Wx H x D)
472 x 149 x 355 mm {including side .
panels) {V-7010}
{18-9/16" x 5-7/8" x 14’7}
435 x 149 x 355 mm (V-5010)
(17-1/8" x 5-7/8" x 14°)
: Weight: 9.8kg (21.6 Ids.) (including side
panels) (V-7010)
8 kg (17.7 ibs.} (V-5010)
Standard Accessories:
RC-394 (V-7010), RC-393 (V-5010),
Batteries (SUM-3, “AA”, “R&’' type)
x 2, Input-output connection cords,
Side panels (mounted) Y-7010 only.
e Specifications were determined using metal
‘tape except where noted.
improvements may result in specifications
or features changing without notice.
e Photos and illustrations may differ slightly
fram production modets.
VOLTAGE CONVERSION
(General Export Models only)
If it is necessary to change the voltage selector of the
deck to be suitable for your area, use the following
procedure :
1, Disconnect the pawer cord.
2. Using a screwdriver, turn the selector until the required
voltage marking appears.
