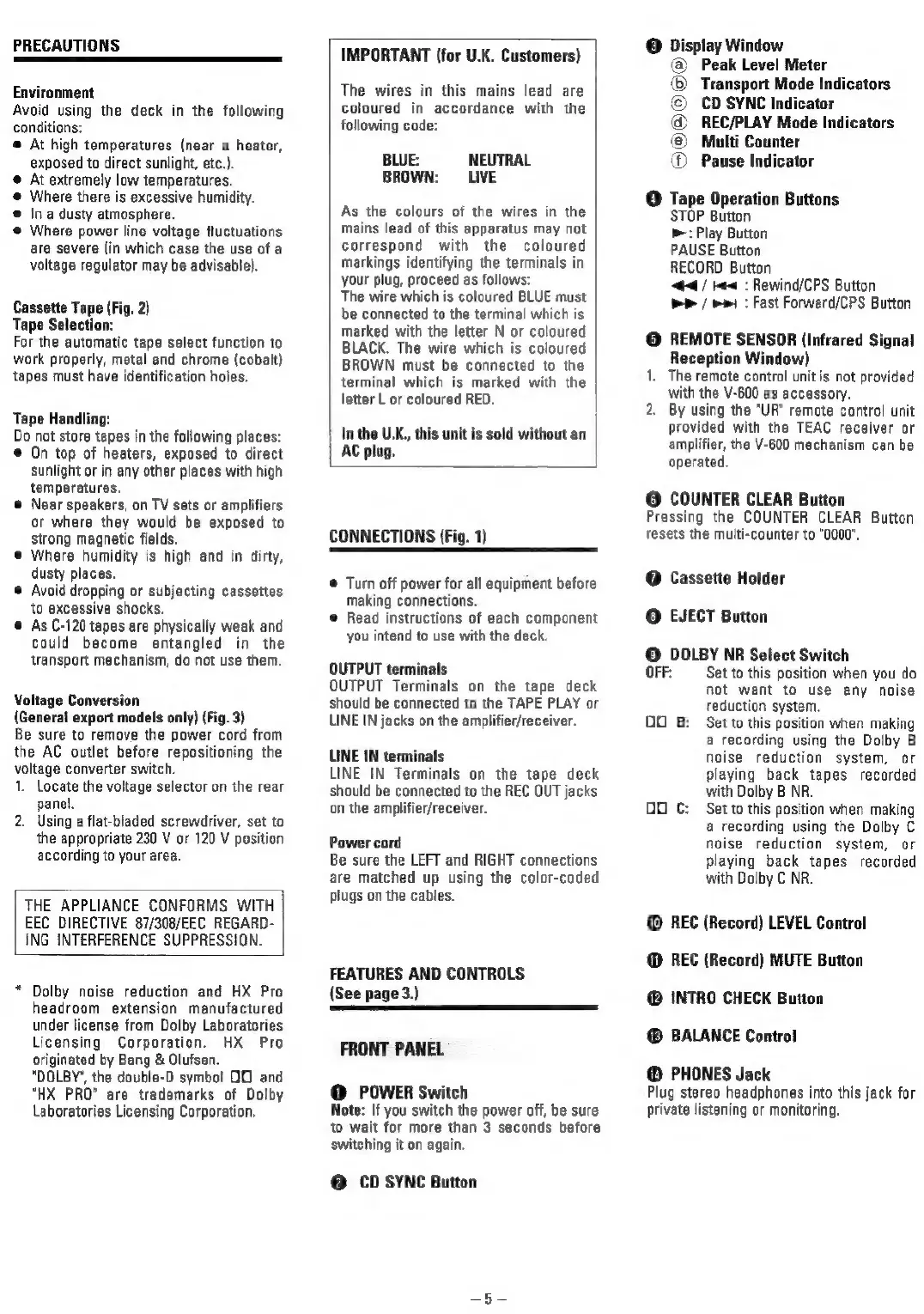

PRECAUTIONS
Environment
Avoid using the deck in the following
conditions:
© At high temperatures (near a heater,
exposed to direct sunlight, etc.).
@ At extremely low temperatures.
@ Where there is excessive humidity.
@ Ina dusty atmosphere.
@ Where power line voltage fluctuations
are severe (in which case the use of a
voltage regulator may be advisable).
Cassette Tape (Fig. 2)
Tape Selection:
For the automatic tape select function to
work properly, metal and chrome (cobalt)
tapes must have identification holes.
Tape Handling:
oe not store tapes in the following places:
© On top of heaters, exposed to direct
sunlight or in any other places with high
temperatures.
© Near speakers, on TV sets or amplifiers
or where they would be exposed to
strong magnetic fields.
@ Where humidity is high and in dirty,
dusty places.
Avoid dropping or subjecting cassettes
to excessive shocks.
© As C-120 tapes are physically weak and
could become entangled in the
transport mechanism, do not use them.
Voltage Conversion
(General export models only) (Fig. 3)
Be sure to remove the power cord from
the AC outlet before repositioning the
voltage converter switch.
1. Locate the voltage selector on the rear
panel.
2. Using a flat-bladed screwdriver, set to
the appropriate 230 V or 120 V position
according to your area.
THE APPLIANCE CONFORMS WITH
EEC DIRECTIVE 87/308/EEC REGARD-
ING INTERFERENCE SUPPRESSION.
* Dolby noise reduction and HX Pro
headroom extension manufactured
under license from Dolby Laboratories
Licensing Corporation. HX Pro
originated by Bang & Olufsen.
"DOLBY", the double-D symbol OO and
“HX PRO" are trademarks of Dolby
Laboratories Licensing Corporation.
IMPORTANT (for U.K. Customers)
The wires in this mains lead are
coloured in accordance with the
following code:
BLUE: NEUTRAL
BROWN: LIVE
As the colours of the wires in the
mains lead of this apparatus may not
correspond with the coloured
markings identifying the terminals in
your plug, proceed as follows:
The wire which is coloured BLUE must
be connected to the terminal which is
marked with the letter N or coloured
BLACK. The wire which is coloured
BROWN must be connected to the
terminal which is marked with the
letter L or coloured RED. |
In the U.K,, this unit is sold without an
AC plug.
CONNECTIONS (Fig. 1)
© Turn off power for all equipment before
making connections.
e Read instructions of each component
you intend to use with the deck.
OUTPUT terminals
OUTPUT Terminals on the tape deck
should be connected to the TAPE PLAY or
LINE IN jacks on the amplifier/receiver.
LINE IN terminals
LINE IN Terminals on the tape deck
should be connected to the REC OUT jacks
on the amplifier/receiver.
Power cord
Be sure the LEFT and RIGHT connections
are matched up using the color-coded
plugs on the cables.
FEATURES AND CONTROLS
(See page 3.)
FRONT PANEL
@ POWER Switch
Note: If you switch the power off, be sure
to wait for more than 3 seconds before
switching it on again.
@ CD SYNC Button
(3) Display Window
Peak Level Meter
Transport Mode Indicators
CD SYNC Indicator
REC/PLAY Mode Indicators
Multi Counter
Pause Indicator
@®
DAOC
@
© Tape Operation Buttons
STOP Button
>: Play Button
PAUSE Button
RECORD Button
44 / Ha: Rewind/CPS Button
bP / mei : Fast Forward/CPS Button
@ REMOTE SENSOR (Infrared Signal
Reception Window)
1. The remote control unit is not provided
with the V-600 as accessory.
2. By using the "UR" remote control unit
provided with the TEAC receiver or
amplifier, the V-600 mechanism can be
operated.
@ COUNTER CLEAR Button
Pressing the COUNTER CLEAR Button
resets the multi-counter to "0000".
© Cassette Holder
© EJECT Button
© DOLBY NR Select Switch
OFF: Set to this position when you do
not want to use any noise
reduction system.
DO B: Set to this position when making
a recording using the Dolby B
noise reduction system, or
playing back tapes recorded
with Dolby B NR.
OO C: Set to this position when making
a recording using the Dolby C
noise reduction system, or
playing back tapes recorded
with Dolby C NR.
@ REC (Record) LEVEL Control
@ REC (Record) MUTE Button
@ INTRO CHECK Button
@® BALANCE Control
@ PHONES Jack
Plug stereo headphones into this jack for
private listening or monitoring.
