Teac V-7000 Service Manual

——veTo00/v-5000 |

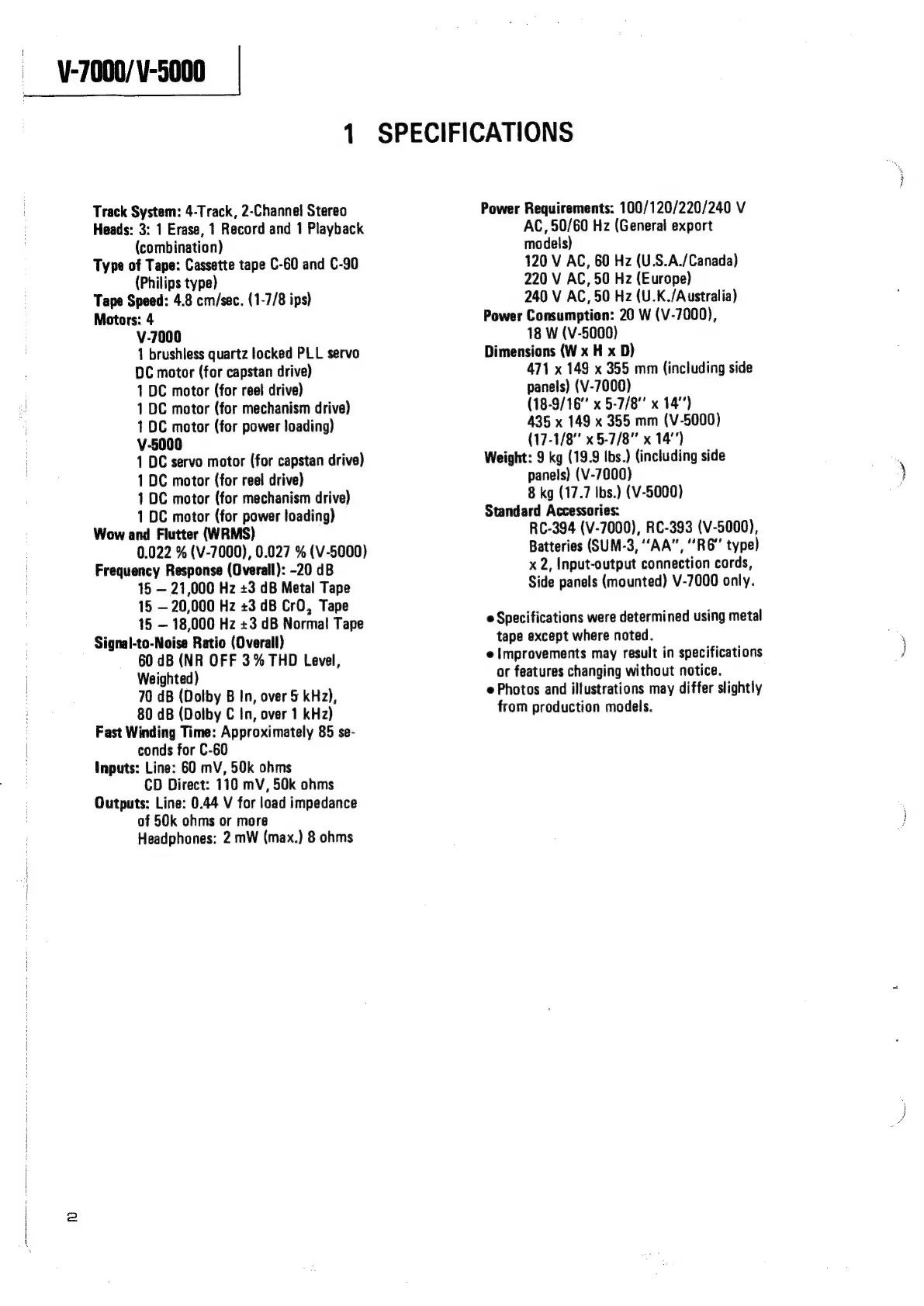

1 SPECIFICATIONS
Track System: 4-Track, 2-Channel Stereo
Heads: 3: 1 Erase, 1 Record and 1 Playback
(combination)
Type of Tape: Cassette tape C-60 and C-90
(Philips type)
Tape Speed: 4.8 cm/sec. (1-7/8 ips)
Motors: 4
V-7000
1 brushless quartz locked PLL servo
DC motor (for capstan drive)
1 DC motor (for reel drive)
1 DC motor (for mechanism drive)
1 DC motor (for power loading)
v-5000
1 DC servo motor (for capstan drive)
1 DC motor (for reel drive)
1 DC motor (for mechanism drive)
1 DC motor (for power loading)
Wow and Flutter (WRMS)
0.022 % (V-7000), 0.027 % (V-5000)
Frequency Response (Overall): -20 dB
15 — 21,000 Hz +3 dB Metal Tape
15 — 20,000 Hz +3 dB CrO, Tape
15 — 18,000 Hz +3 dB Normal Tape
Signal-to-Noise Ratio (Overall)
60 dB (NR OFF 3% THD Level,
Weighted)
70 dB (Dolby B In, over 5 kHz),
80 dB (Dolby C In, over 1 kHz)
Fast Winding Time: Approximately 85 se-
conds for C-60
Inputs: Line: 60 mV, 50k ohms
CD Direct: 110 mV, 50k ohms
Outputs: Line: 0.44 V for load impedance
of 50k ohms or more
Headphones: 2 mW (max.) 8 ohms
Power Requirements: 100/120/220/240 V
AC, 50/60 Hz (General export
models)
120 V AC, 60 Hz (U.S.A./Canada)
220 V AC, 50 Hz (Europe)
240 V AC, 50 Hz (U.K./Australia)
Power Consumption: 20 W (V-7000),
18 W (V-5000)
Dimensions (W x H x D)
471 x 149 x 355 mm (including side
panels) (V-7000)
(18-9/16"" x 5-7/8" x 14")
435 x 149 x 355 mm (V-5000)
(17-1/8" x 5-7/8" x 14")
Weight: 9 kg (19.9 Ibs.) (including side
panels) (V-7000)
8 kg (17.7 Ibs.) (V-5000)
Standard Accessories:
RC-394 (V-7000), RC-393 (V-5000),
Batteries (SUM-3, “AA”, “RG” type)
x 2, Input-output connection cords,
Side panels (mounted) V-7000 only.
io”
e Specifications were determined using metal
tape except where noted.
e Improvements may result in specifications
or features changing without notice.
e Photos and illustrations may differ slightly
from production models.
Reet
