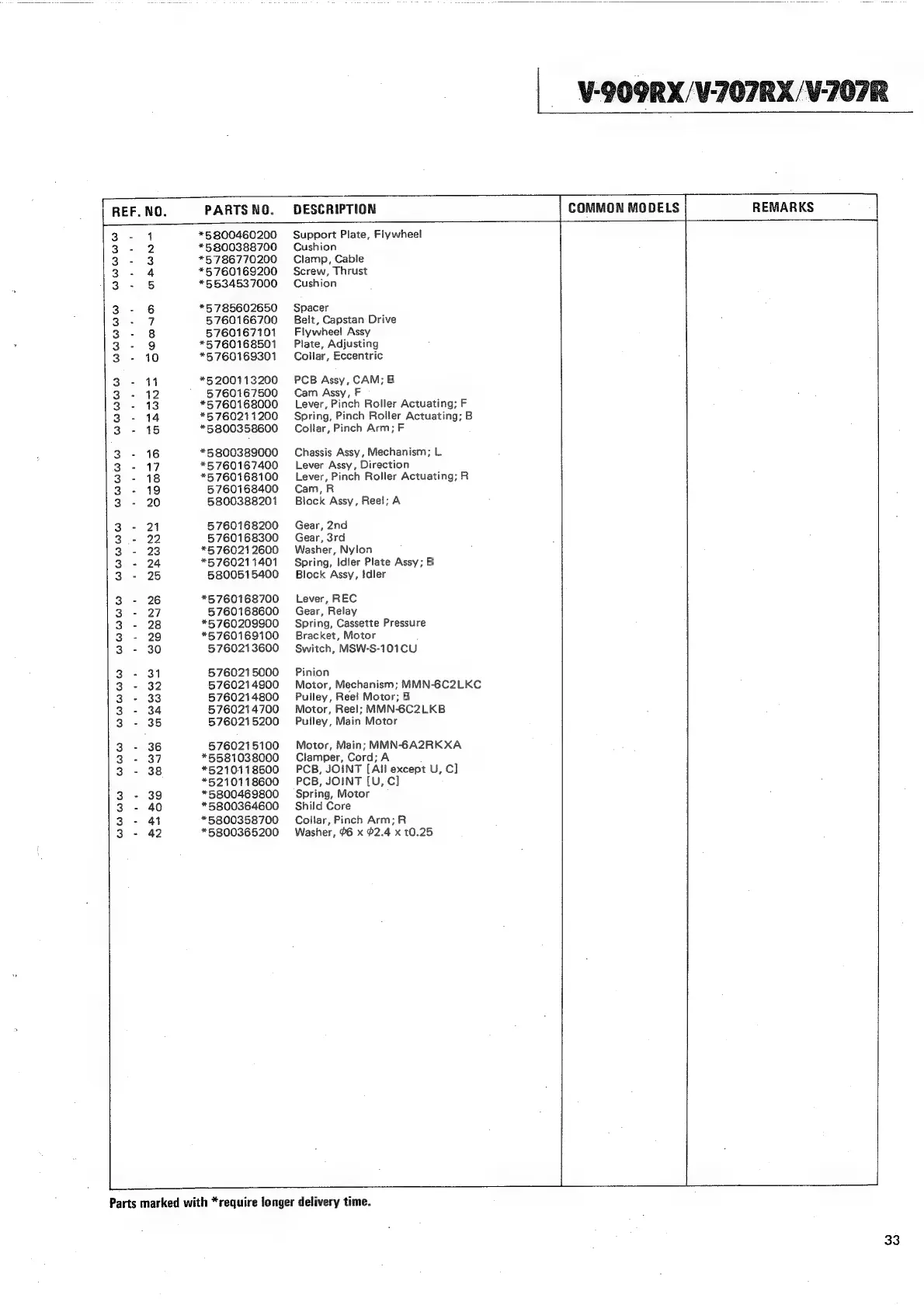

Teac V-909RX - Page 31

|
REF. NO. PARTS NQ.
L - 4 *5800460200
3-2 *5300388700
Bos. *5 786770200
3-4 *5760169200
3-5 *5534537000
3-6 *5 785602650
3-7 5760166700
3 - 8 5760167101
3-9 *5760168501
3 - 10 *5760169301
3-11 *5 200113200
3-12 5760167500
3 - 13 *5 760168000
3 - 14 *5 760211200
3 - 15 *5800358600
3 - 16 *5800389000
3-17 *5760167400
3 - 18 *5760168100
3 - 19 5760168400
3 - 20 5800388201
3 - 21 5760168200
3 - 22 5760168300
3 - 23 *576021 2600
3 - 24 *576021 1401
3 - 25 5800515400
3 - 26 *5760168700
3 - 27 5760168600
3 - 28 *5760209900
3 - 29 *5760169100
3 - 30 5760213600
3 - 31 5760215000
3 - 32 5760214900
3 - 33 5760214800
3 - 34 5760214700
3 - 35 5760215200
3 - 36 5760215100
3 - 37 *5581038000
3 - 38 *5210118500
*5210118600
3 - 39 *5800469800
3 - 40 *5800364600
3-41 *5800358700
3 .- 42 *5800365200
V-909RX/V-707RX/V-707R
DESCRIPTION
COMMON MODELS
Support Plate, Flywheel
Cushion
Clamp, Cable
Screw, Thrust
Cushion
Spacer
Belt, Capstan Drive
Flywheel! Assy
Plate, Adjusting
Collar, Eccentric
PCB Assy, CAM; B
Cam Assy, F
Lever, Pinch Roller Actuating; F
Spring, Pinch Roller Actuating; B
Collar, Pinch Arm; F
Chassis Assy, Mechanism; L.
Lever Assy, Direction
Lever, Pinch Roller Actuating; R
Cam, R
Block Assy, Reel; A
Gear, 2nd
Gear, 3rd
Washer, Nylon
Spring, Idler Plate Assy; B
Block Assy, idler
Lever, REC
Gear, Relay
Spring, Cassette Pressure
Bracket, Motor
Switch, MSW-S-101CU
Pinion
Motor, Mechanism; MMN-6GC2LKC
Pulley, Reel Motor; B
Motor, Reel; MMN-6C2LKB
Pulley, Main Motor
Motor, Main; MMN-6A2RKXA
Clamper, Cord; A
PCB, JOINT [All except U, C]
PCB, JOINT [U, C]
Spring, Motor
Shild Core
Collar, Pinch Arm; R
Washer, 6 x $2.4 x t0.25
Parts marked with *require longer delivery time.
