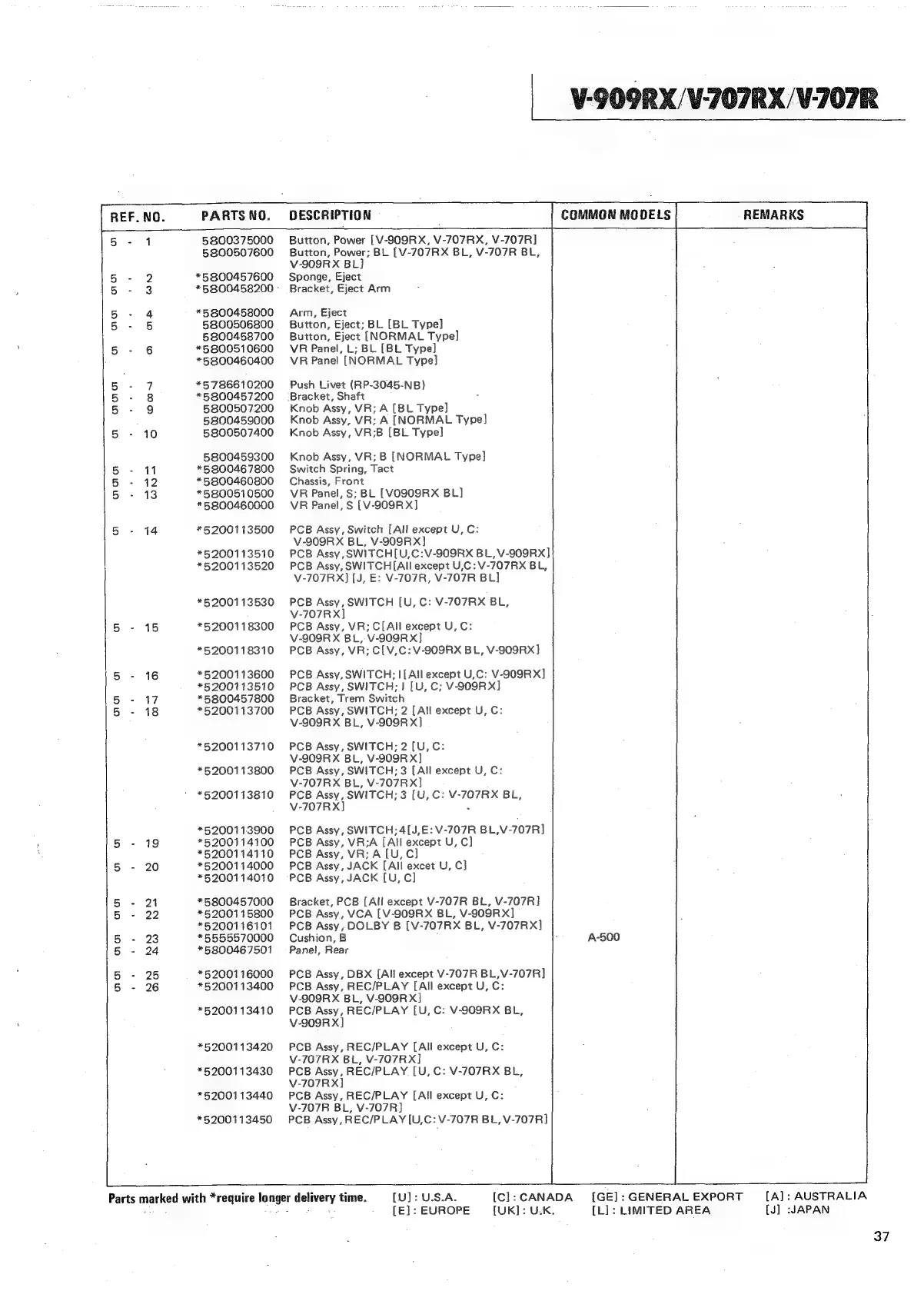

| V-909RX/V-707RX/V707R
|
kt
[ REF. NO. PARTS NO. DESCRIPTION COMMON MODELS REMARKS |
5 - 4 5800375000 Button, Power [V-909RX, V-707RX, V-707R]
5800507600 = Button, Power; BL [V-707RX BL, V-707R BL,
V-909RX BL} : :
5 - 2 *5800457600 Sponge, Eject
5 - 3 *5800458200 _ =‘ Bracket, Eject Arm :
5 - 4 *5800458000 Arm, Eject
5 - 5 5800506800 _ Button, Eject; BL [BL Type]
5800458700 Button, Eject [NORMAL Type]
5 - 6 *5800510600 VR Panel, L; BL [BL Type]
*5800460400 VR Panel [NORMAL Type]
5 - 7 *5786610200 Push Livet (RP-3045-NB)
5 - 8 *5800457200 ~=— Bracket, Shaft
5 - 9 5800507200 Knob Assy, VR; A [BL Type]
5800459000 Knob Assy, VR; A [NORMAL Type]
5 - 10 5800507400 Knob Assy, VR;B [BL Type]
5800459300 Knob Assy, VR; B [NORMAL Type]
5 - 11 *5800467800 Switch Spring, Tact
5 - 12 *5800460800 Chassis, Front
5 - 13 *5800510500 VR Panel, S; BL [VO909RX BL]
*5800460000 VR Panel, S [V-909RX]
5 - 14 *5200113500 PCB Assy, Switch [AI] except U,C:
V-909RX BL, V-909RX]
*5200113510 PCB Assy, SWITCH[U,C:V-909RX BL, V-909RX]
*5200113520 PCB Assy, SWITCHI[AII except U,C: V-707RX BL,
V-707RX] [J, E: V-707R, V-707R BL]
*5200113530 PCB Assy, SWITCH [U, C: V-707RX BL,
V-707RX]
5 - 15 *5200118300 PCB Assy, VR; C[AIl except U, C:
V-909R X BL, V-909RX]
*5200118310 PCB Assy, VR; C[V,C:V-909RX BL, V-909RX]
5 - 16 *5200113600 PCB Assy, SWITCH; I[Ail except U,C: V-909RX]
*5200113510 PCB Assy, SWITCH; |! [U, C; V-909RX]
5 - 17 *5800457800 Bracket, Trem Switch
5 - 18 *5200113700 PCB Assy, SWITCH; 2 [All except U, C:
V-909R X BL, V-909R X]
*5200113710 PCB Assy, SWITCH; 2 [U,C:
V-909RX BL, V-909R X}
*5200113800 PCB Assy, SWITCH; 3 [All except U, C:
V-707RX BL, V-707RX]
*5200113810 PCB Assy, SWITCH; 3 [U, C: V-707RX BL,
V-707RX] y
*5200113900 PCB Assy, SWITCH; 4[J,E:V-707R BL,V-707R]
So 49 *5200114100 PCB Assy, VR;A [All except U, C]
*5200114110 PCB Assy, VR; A ([U,C]
5 - 20 *5200114000 PCB Assy, JACK [All excet U, C]
*5200114010 PCB Assy, JACK [U, C]
B= 21 *5800457000 Bracket, PCB [All except V-707R BL, V-707R]
5 - 22 *5200115800 PCB Assy, VCA [V-909RX BL, V-909RX]
*5200116101 PCB Assy, DOLBY B [V-707RX BL, V-707RX]
5 - 23 *5555570000 Cushion, B : A-500
5 - 24 *5800467501 = Panel, Rear
5 - 25 *5200116000 PCB Assy, DBX [All except V-707R BL,V-707R]
5 - 26 *5200113400 PCB Assy, REC/PLAY [All except U, C:
V-909RX BL, V-909RX]
*5200113410 PCB Assy, REC/PLAY [U, C: V-909RX BL,
V-909RX]
*5200113420 PCB Assy, REC/PLAY [All except U, C:
V-707RX BL, V-707RX]
*5200113430 PCB Assy, REC/PLAY [U, C: V-707RX BL,
V-707RX]
*5200113440 PCB Assy, REC/PLAY [Ail except U,C:
V-707R BL, V-707R)
*5200113450 PCB Assy, REC/PLAY[U,C:V-707R BL, V-707R]
=
Parts marked with *require longer delivery time.
[U]: U.S.A.
[E]: EUROPE
[C]: CANADA
[UK]: U.K.
[GE] : GENERAL EXPORT
[L]: LIMITED AREA
[A]: AUSTRALIA
[J] JAPAN
37
