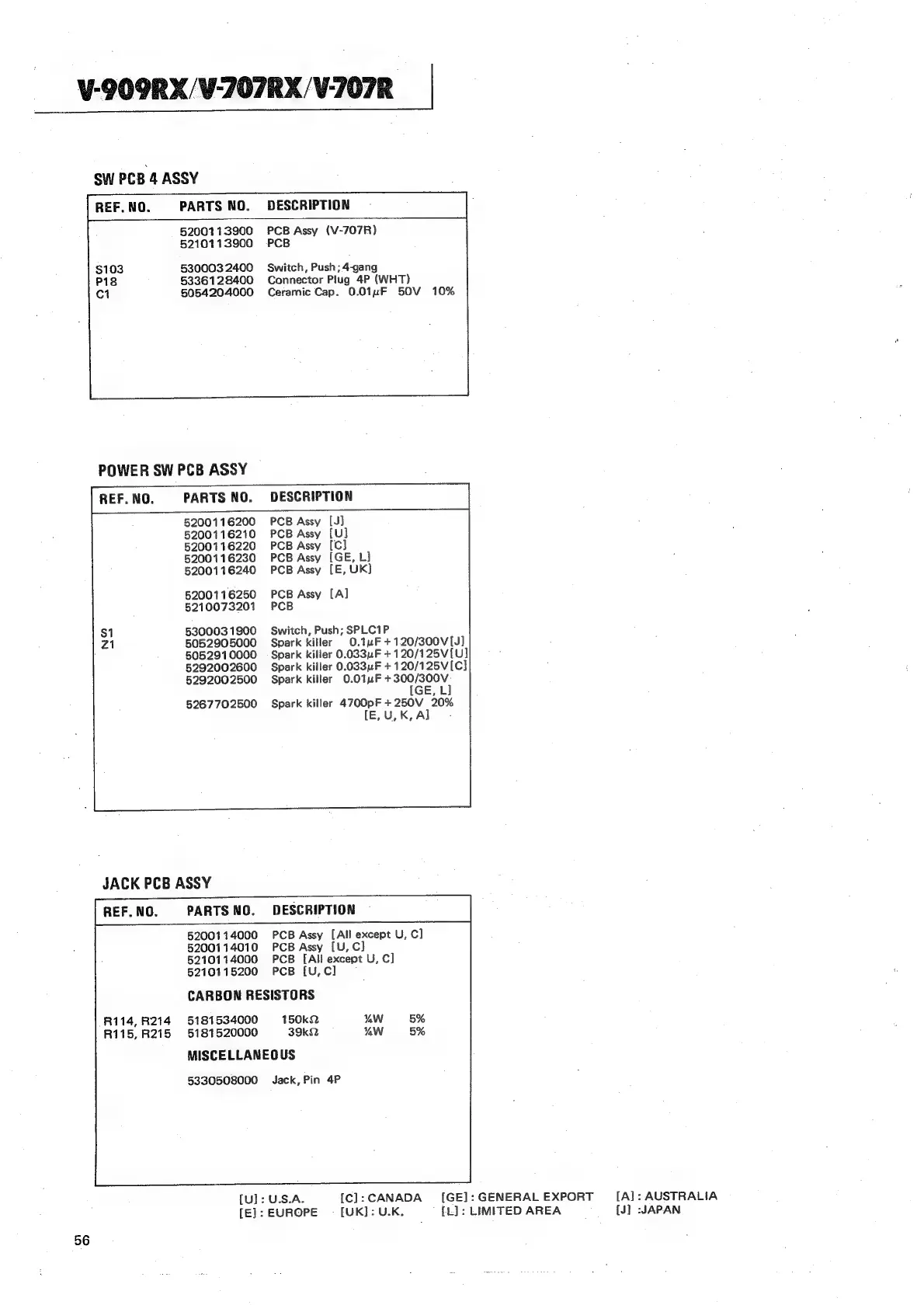

V-909RX/V-707RX/V-707R
SW PCB 4 ASSY
REF. NO. PARTS NO. DESCRIPTION
5200113900 PCB Assy (V-707R)
5210113900 PCB
5300032400 Switch, Push; 4-gang
5336128400 Connector Plug 4P (WHT)
5054204000 Ceramic Cap. 0.0inF 50V 10%
POWER SW PCB ASSY
PARTS NO. DESCRIPTION
5200116200 PCB Assy
5200116210 PCB Assy
5200116220 PCB Assy
5200116230 PCB Assy
5200116240 PCB Assy
5200116250 PCB Assy
5210073201 PCB
5300031800 Switch, Push; SPLC1P
5052905000 Spark killer 0.14F +120/300V[J)
5052910000 Spark killer 0.033uF +120/125V[U]
5292002600 Spark killer 0.033uF + 120/125V[C]}
5292002500 Spark killer 0.01uF + ee
[GE,L
5267702500 Spark killer 4700pF + 250V 20%
{E, U, K, A]
JACK PCB ASSY
REF. NO. PARTS NO. DESCRIPTION
5200114000 PCB Assy [All except U, C]
5200114010 PCB Assy [U, C]
5210114000 PCB [All except U, C]
5210115200 PCB [U,C]
CARBON RESISTORS
R114,R214 5181534000 150k2 *W
R115,R215 5181520000 39kKQ %W
MISCELLANEOUS
5330508000 Jack, Pin 4P
[U]:
U.S.A.
[C]:
CANADA
[GE]:
GENERAL
EXPORT
[A]:
AUSTRALIA
[E]:
EUROPE
[UK]:
U.K,
’
[L]:
LIMITED
AREA
[J]
JAPAN
