V-970X/R-919X
Ra2
|
Back
tension
R11/R21
|
Playback
equalization
R12/R22
|
Playback
output
level
R13/R23
R14/R24
|
Record
equalization
R15/R25
|
Record
level
(NORMAL)
R16/R26
|
Record
level
(METAL)

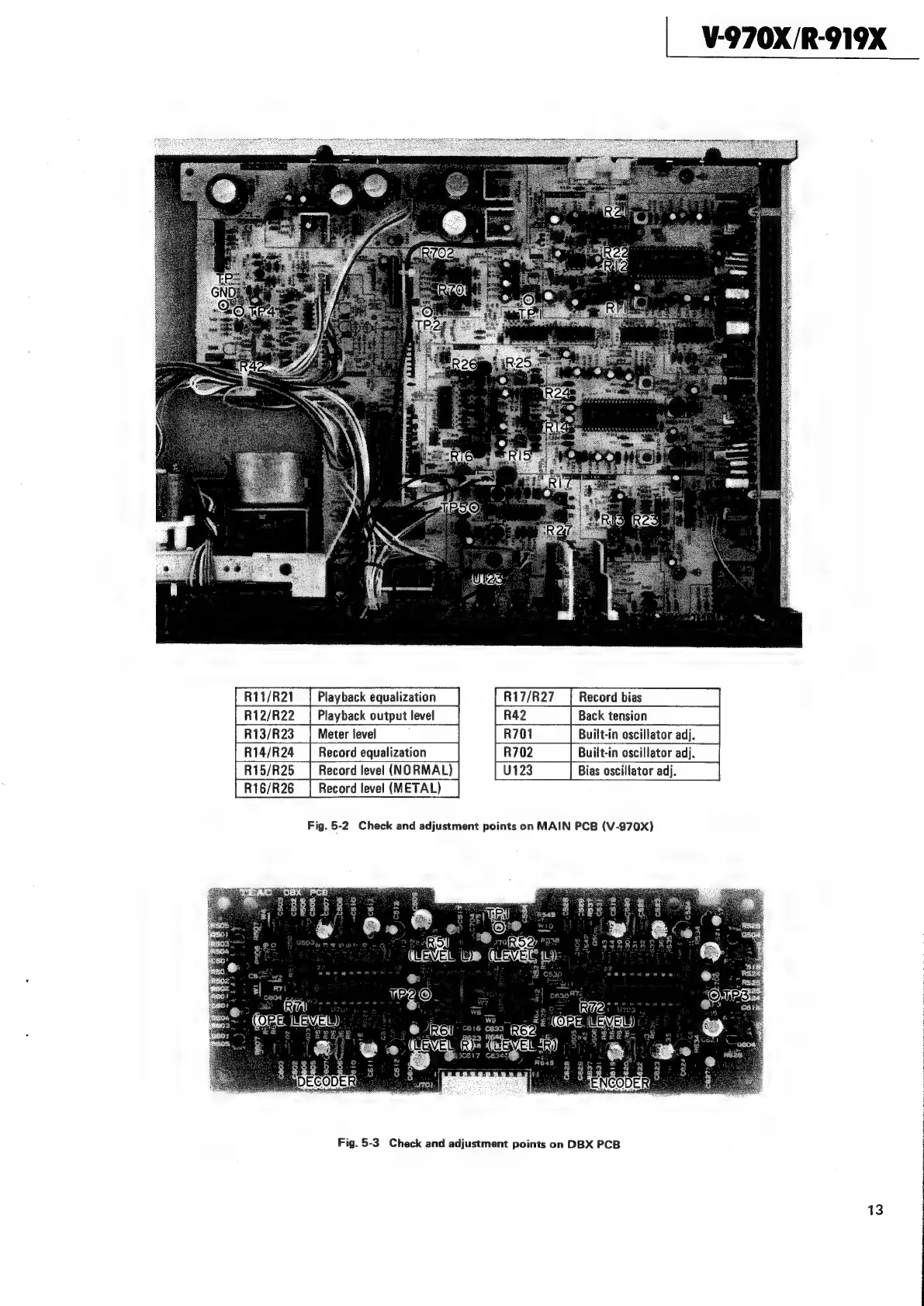

Fig.
5-2
Check
and
adjustment
points
on
MAIN
PCB
(V-970X)
Fig.
5-3
Check
and
adjustment
points
on
DBX
PCB
13
