Teac V-970X - Main PCB (R-919 X) and Azimuth Setup

V-970X/R-919X
14
Back tension (FWD)
R74
R83 Quick sensor (FWD)
Quick sensor (REV)
R701
R16/R26 | Record level (METAL)
[Raz
[R74 | Back tension (REV) |
R17/R27 Record bias
. U123 Bias oscillator adj.

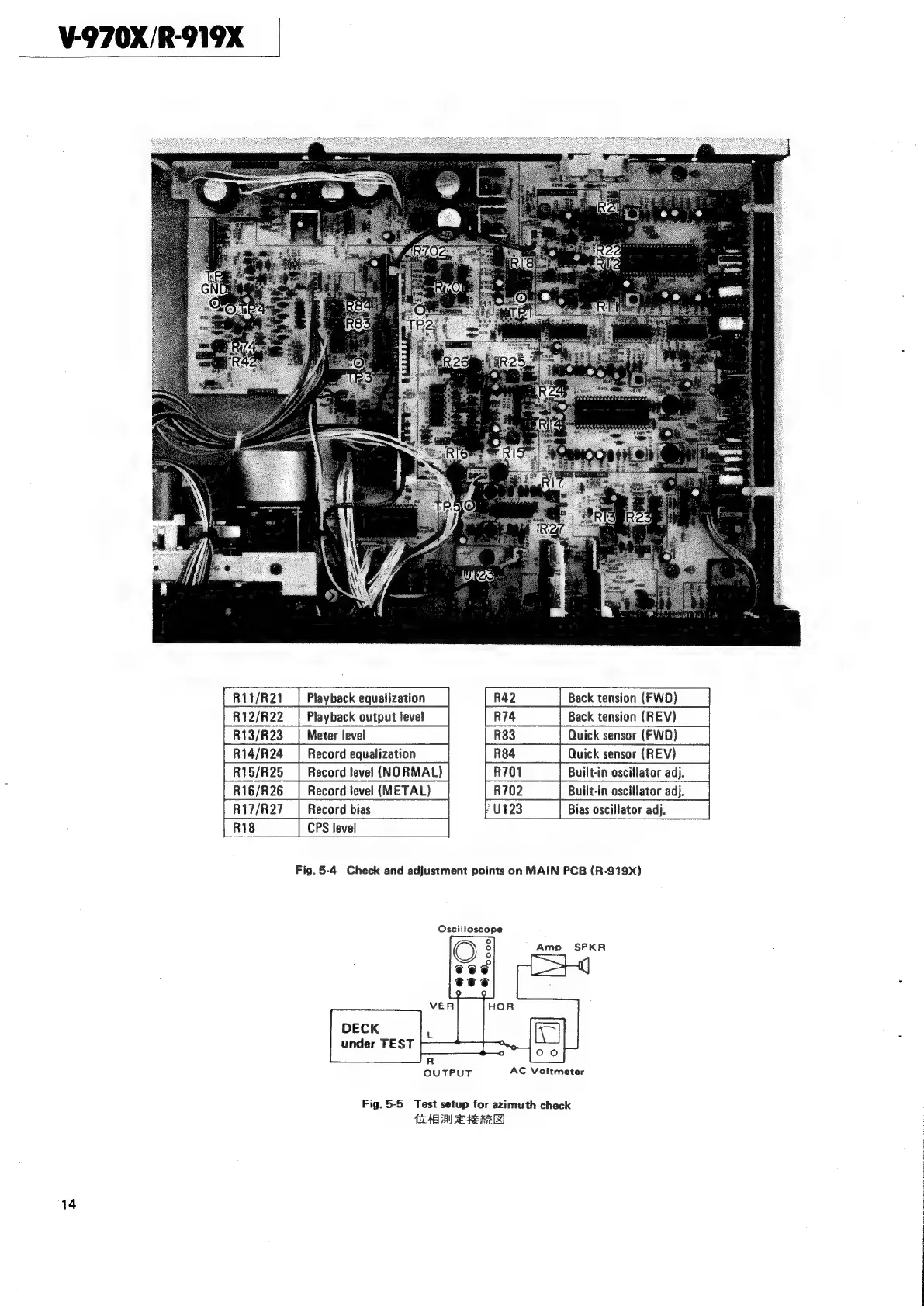

Fig. 5-4 Check and adjustment points on MAIN PCB (R-919X)
Oscilloscope
under TEST
OUTPUT AC Voitmeter
Fig. 5-5 Test setup for azimuth check
