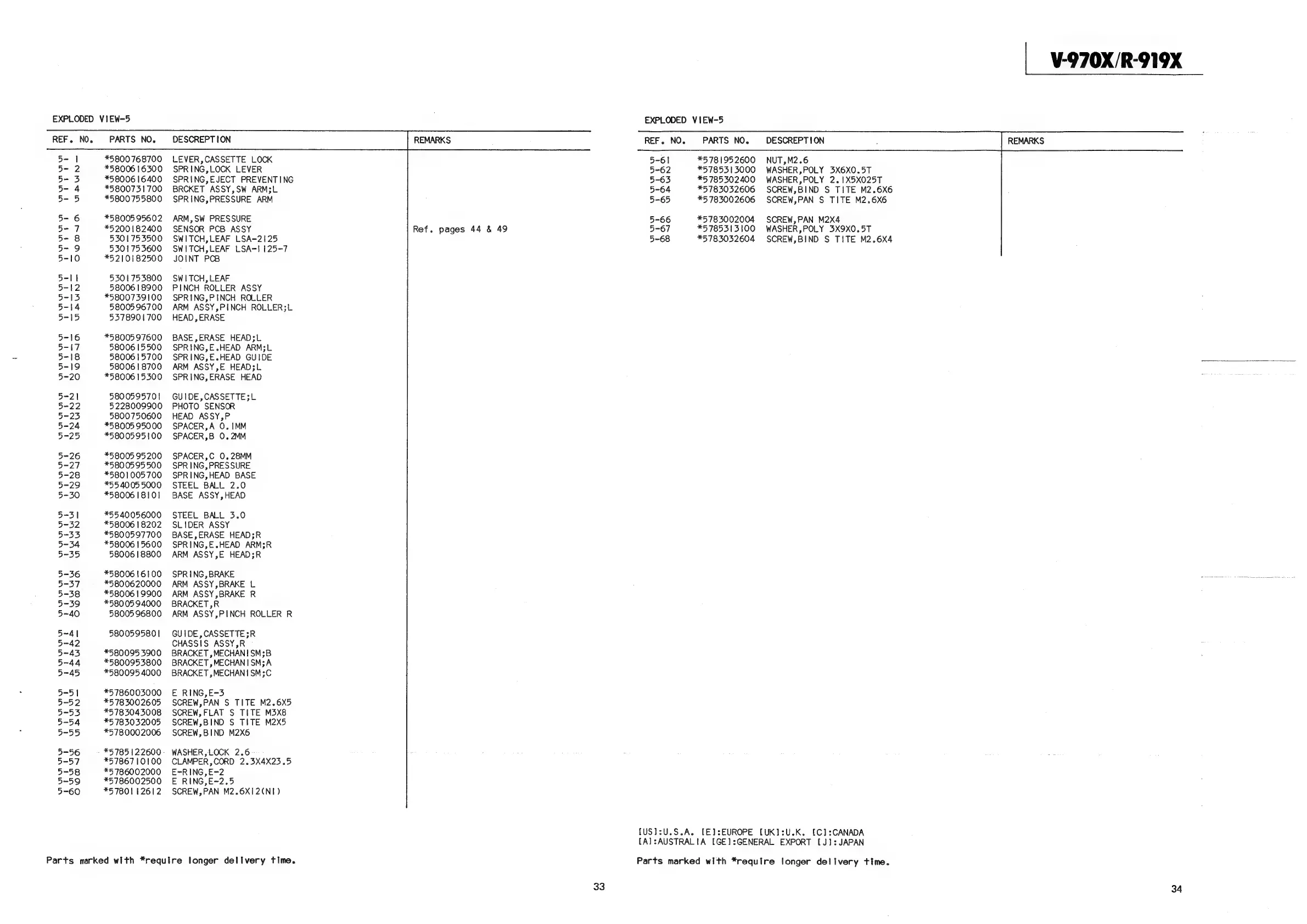

Teac V-970X - Exploded View-5 Parts List

EXPLODED VIEW-5
PARTS NO.
REF. NO.
*5800 768700
*58006 16300
*58006 16400
*5800731700
*5800 755800
|
2
3
4
5
5- 6 *58005 95602
7
8
9
10
5- *5200182400
5- 5301753500
2= 5301753600
5- *5210182500
5-I1 5301753800
5-12 58006 | 8900
5-13 *5800739100
5-14 5800596700
5-15 5378901700
5-16 *5800597600
5-17 58006 15500
5-18 5800615700
5-19 5800618700
5-20 *5800615300
5-21 5800595701
5-22 5228009900
5-253 5800750600
5-24 *58005 95000
5-25 *5800595 100
5-26 *58005 95200
5-27 *5800595 500
5-28 *5801005700
5-29 *55 40055000
5-30 *58006 18101
5-31 *55 40056000
5-32 *58006 18202
5-33 *5800597700
5-34 *58006 15600
5-35 5800618800
5-36 *58006 16100
5-37 *5800620000
5-38 *58006 | 9900
5-39 *5800594000
5-40 58005 96800
5-41 5800595801
5-42
5-43 *580095 3900
5-44 *5800953800
5-45 *580095 4000
5-5 | *5786003000
5-52 *5 783002605
5-53 *5783043008
5-54 *5 783032005
5-55 *5780002006
5-56 *5 785 122600
5-57 *57867 10100
5-58 *5 786002000
5-59 *5786002500
5-60 *5 780112612
DESCREPTION
LEVER,CASSETTE LOCK
SPRING,LOCK LEVER
SPRING, EJECT PREVENTING
BRCKET ASSY,SW ARM;L
SPRING,PRESSURE ARM
ARM,SW PRESSURE
SENSOR PCB ASSY
SWITCH,LEAF LSA=2125
SWITCH,LEAF LSA-1 125-7
JOINT PCB
SWITCH, LEAF
PINCH ROLLER ASSY
SPRING,PINCH ROLLER
ARM ASSY,PINCH ROLLER;L
HEAD , ERASE
BASE, ERASE HEAD;L
SPRING,E.HEAD ARM;L
SPRING,E.HEAD GUIDE
ARM ASSY,E HEAD;L
SPRING,ERASE HEAD
GUIDE,CASSETTE;L
PHOTO SENSOR
HEAD ASSY,P
SPACER,A 0.1MM
SPACER,B 0. 2MM
SPACER,C 0.28MM
SPRING, PRESSURE
SPRING,HEAD BASE
STEEL BALL 2.0
BASE ASSY,HEAD
STEEL BALL 3.0
SLIDER ASSY
BASE, ERASE HEAD;R
SPRING,E.HEAD ARM;R
ARM ASSY,E HEAD;R
SPRING, BRAKE
ARM ASSY,BRAKE L
ARM ASSY,BRAKE R
BRACKET,R
ARM ASSY,PINCH ROLLER R
GUIDE, CASSETTE ;R
CHASSIS ASSY,R
BRACKET , MECHANISM ;B
BRACKET, MECHANISM; A
BRACKET , MECHANISM ;C
E RING,E-3
SCREW,PAN S TITE M2.6X5
SCREW, FLAT S TITE M3X8
SCREW,BIND S TITE M2X5
SCREW,BIND M2X6
WASHER, LOCK 2.6
CLAMPER,CORD 2.3X4X23.5
E+RING,E-2
E RING,E-2.5
SCREW,PAN M2.6X12(NI)
Parts marked with *require longer delivery time.
Ref. pages 44 & 49
33
EXPLODED VIEW-5
REF. NO.
5-62
5-63
5-64
5-65
5-66
5-67
5-68
PARTS NO.
*5 781952600
*57853 13000
*5 785302400
*5783032606
*5 783002606
*5 783002004
*5 785313100
*5783032604
DESCREPTION
NUT,M2.6
WASHER,POLY 3X6X0.5T
WASHER,POLY 2. 1X5X025T
SCREW,BIND S TITE M2.6X6
SCREW,PAN S TITE M2.6X6
SCREW, PAN M2X4
WASHER,POLY 3X9X0.5T
SCREW,BIND S TITE M2.6X4
[US}:U.S.A. [E]:EUROPE [UK]:U.K. [C]:CANADA
[A]:AUSTRALIA [GE]:GENERAL EXPORT [J]: JAPAN
Parts marked with *require longer delivery time.
| V-970X/R-919X
34
