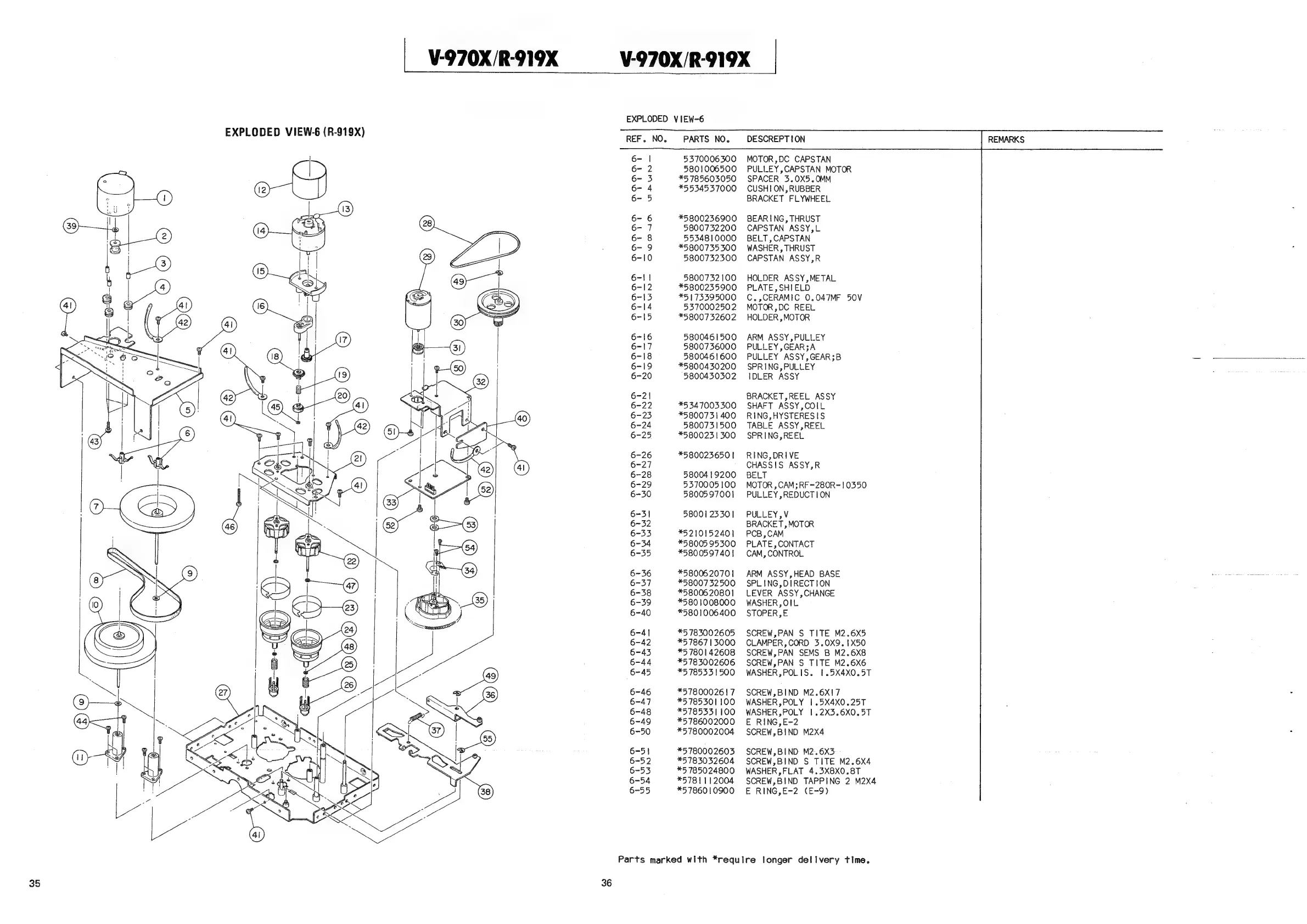

EXPLODED VIEW-6 (R-919X)
fe
V-970X/R-919X
V-970X/R-919X
EXPLODED VIEW-6
REF. NO. PARTS NO.
5370006300
|
6- 2 5801006500
6- 3 *5 785603050
6- 4 *5534537000
6- 5
6- 6 *5800236900
6- 7 5800732200
6- 8 5534810000
6- 9 *5800735300
6-10 5800732300
6-11 5800732100
6-12 *5800235900
6-13 *5 173395000
6-14 5370002502
6-15 *5800732602
6-16 5800461500
6-17 5800736000
6-18 5800461600
6-19 *5800430200
6-20 5800430302
6-2|
6-22 *5 347003300
6-23 *5800731 400
6-24 5800731500
6-25 *580023 1 300
6-26 *580023650 |
6-27
6-28 58004 19200
6-29 5370005 100
6-30 5800597001
6-31 58001 23301
6-32
6-33 *5210152401
6-34 *58005 95300
6-35 *580059740 1
6-36 *58006 20701
6-37 *58007 32500
6-38 *5800620801
6-39 *580 1008000
6-40 *5801006400
4 *5 783002605
42 *5 7867 | 3000
6-43 *5 780142608
44 *5783002606
6-45 *5 785331500
6-46 *5780002617
6-47 *5 785301 100
6-48 *5785331100
6-49 *5786002000
6-50 *5780002004
6-51 *5 780002603
6-52 *5783032604
6-53 *5 785024800
6-54 *578 1112004
6-55 *5 786010900
DESCREPTION
MOTOR ,DC CAPSTAN
PULLEY ,CAPSTAN MOTOR
SPACER 3.0X5.0MM
CUSHION, RUBBER
BRACKET FLYWHEEL
BEARING, THRUST
CAPSTAN ASSY,L
BELT, CAPSTAN
WASHER , THRUST
CAPSTAN ASSY,R
HOLDER ASSY,METAL
PLATE, SHIELD
C.,CERAMIC 0.047MF 50V
MOTOR,DC REEL
HOLDER , MOTOR
ARM ASSY,PULLEY
PULLEY, GEAR;A
PULLEY ASSY,GEAR;B
SPRING, PULLEY
IDLER ASSY
BRACKET,REEL ASSY
SHAFT ASSY,COIL
RING, HYSTERESIS
TABLE ASSY,REEL
SPRING, REEL
RING, DRIVE
CHASSIS ASSY,R
BELT
MOTOR , CAM;RF-280R-10350
PULLEY , REDUCTION
PULLEY, V
BRACKET, MOTOR
PCB,CAM
PLATE, CONTACT
CAM, CONTROL
ARM ASSY,HEAD BASE
SPL ING, DIRECTION
LEVER ASSY,CHANGE
WASHER, OIL
STOPER,E
SCREW,PAN S TITE M2.6X5
CLAMPER,CORD 3.0X9. 1X50
SCREW,PAN SEMS B M2.6X8
SCREW,PAN S TITE M2.6X6
WASHER, POLIS. 1.5X4X0.5T
SCREW,BIND M2,6X17
WASHER, POLY 1.5X4X0.25T
WASHER,POLY |.2X3.6X0.5T
E RING,E-2
SCREW,BIND M2X4
SCREW, BIND M2.6X3
SCREW,BIND S TITE M2.6X4
WASHER, FLAT 4.3X8X0.8T
SCREW,BIND TAPPING 2 M2X4
E RING,E-2 (E-9)
Parts marked with *require longer delivery time.
36
REMARKS
