Steering Servo
3
2
1
1
3
4
3
1
2

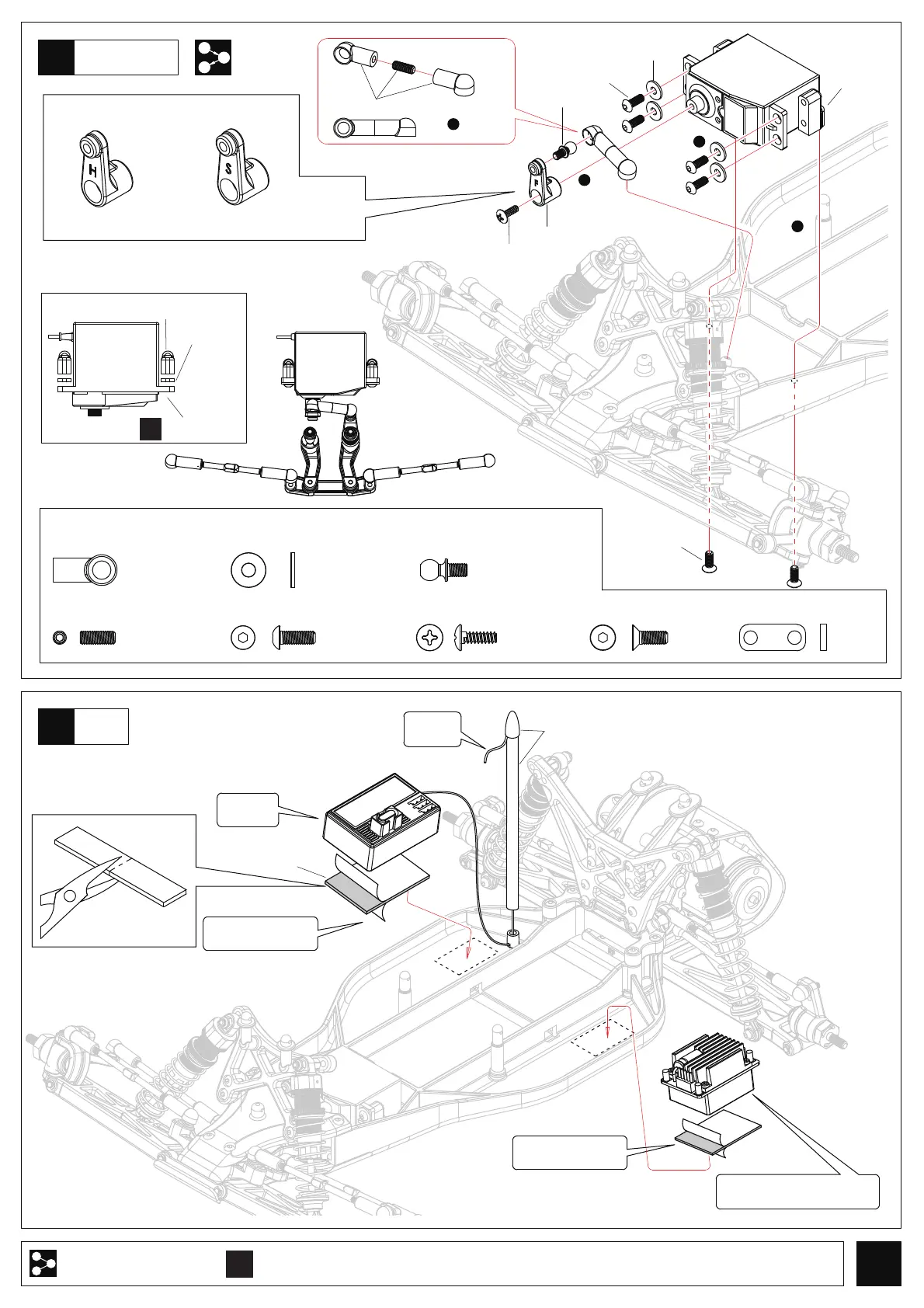

Assemble in the specified order
Radio
Electronic speed controller
Antenna
T02087
Receiver
Double-sided Tape
T02113
T02110(25T)
T02111
T02136
T02081
T02082
Double-sided Tape
2
T02083
SANWA
T02116
Steering Servo-H(24T)
Steering Servo-S(23T)
Select for your servo
Sanwa servo
T02111
T02087
T02113 4.8 Ball End(Short)
……………2
T02113 M3x10 Screw
……………1
T02081 3x7x0.8 Washer
………………4
T02082 M3x8 Screw
…………4
T02136 Ball stud - silvery
…………………1
……2
T02083 M3x8 Screw
T02116 1.5 Servo spacer
……2
T02082 M2.6x8 Screw
…………1
T02082(2.6x8)
X
Must be purchased separately
Steering Servo
X
