Team C TC10 - Chassis and Mounts Assembly; Motor Mount and Side Panel Installation; Center Gear Adaptor Installation

5
........................13
T01118 M3x6 Screw
M3x6螺絲

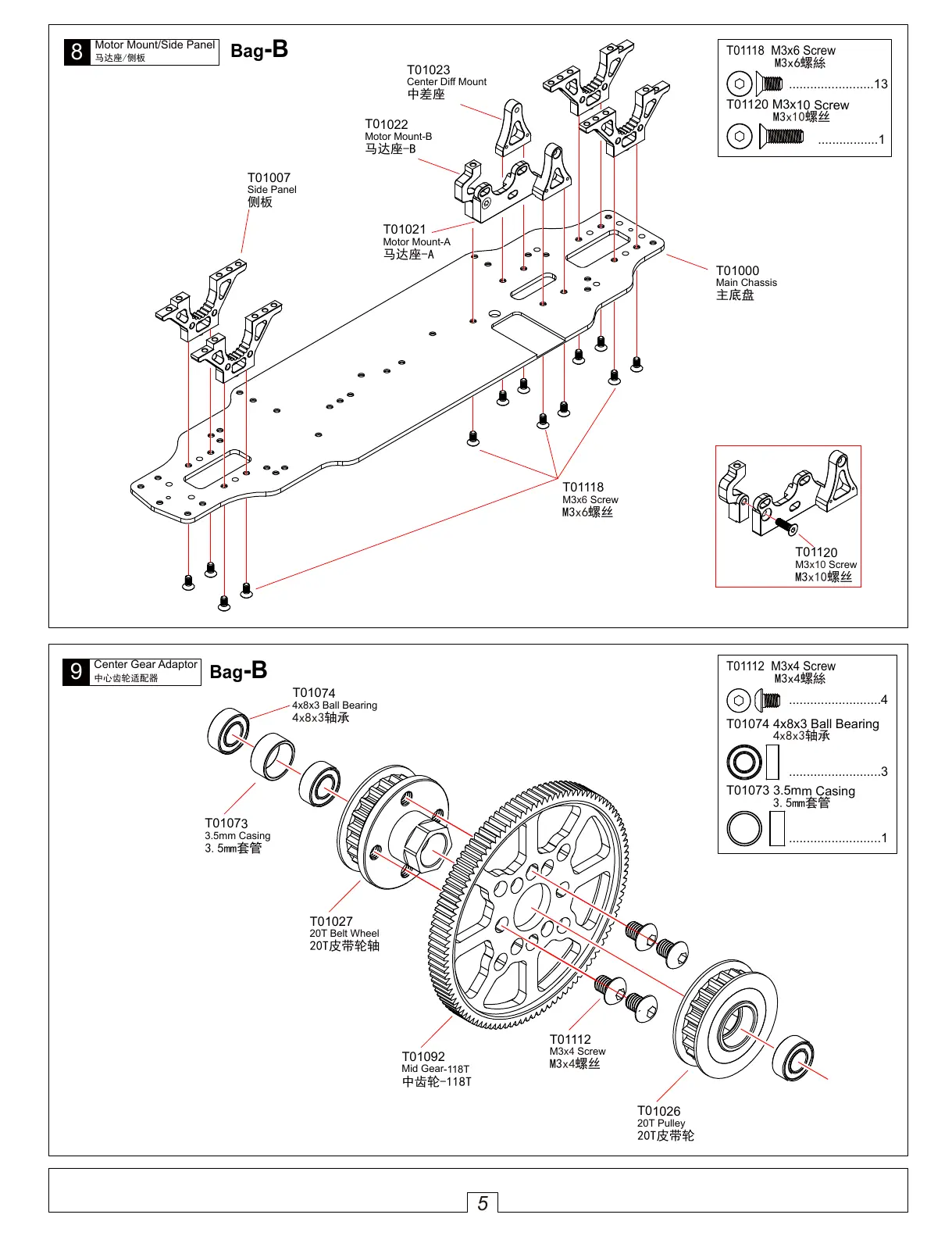

Motor Mount/Side Panel
马达座/侧板
Center Gear Adaptor
中心齿轮适配器
8
9
Bag-B
Bag-B
侧板
Side Panel
T01007
马达座-A
Motor Mount-A
T01021
马达座-B
Motor Mount-B
T01022
M3x6螺丝
M3x6 Screw
T01118
主底盘
Main Chassis
T01000
M3x4螺丝
M3x4 Screw
T01112
中齿轮-118T
Mid Gear-118T
T01092
20T皮带轮轴
20T Belt Wheel
T01027
20T皮带轮
20T Pulley
T01026
3.5mm套管
3.5mm Casing
T01073
4x8x3轴承
4x8x3 Ball Bearing
T01074
..........................4
T01112 M3x4 Screw
M3x4螺絲
..........................3
4x8x3轴承
T01074 4x8x3 Ball Bearing
..........................1
3.5mm套管
T01073 3.5mm Casing
中差座
Center Diff Mount
T01023
M3x10螺丝
M3x10 Screw
T01120
.................1
M3x10螺丝
T01120
M3x10 Screw
