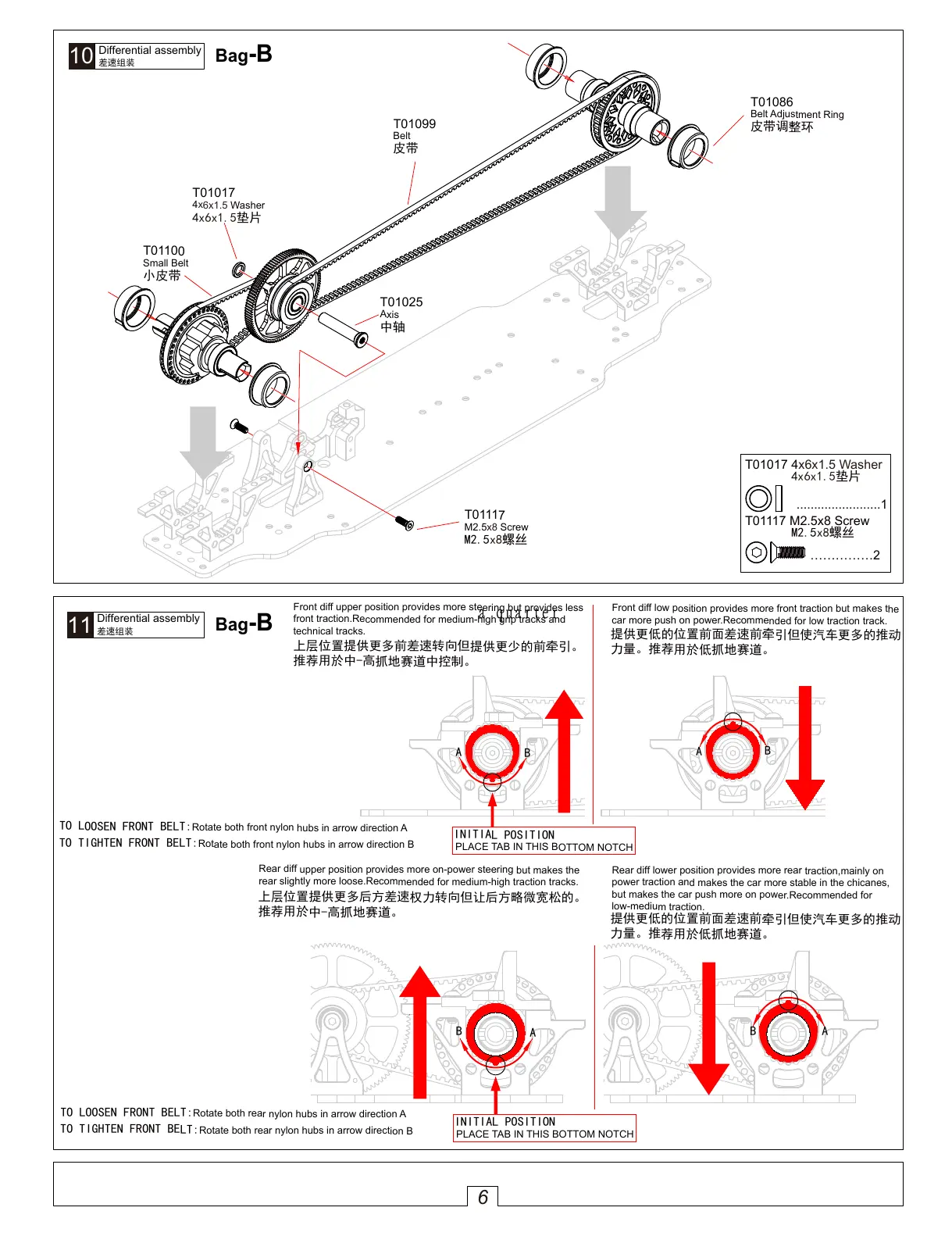

Team C TC10 - Differential Assembly - Bag-B; Differential Assembly - Steps 10 & 11

6
11
Differential assembly
10
Differential assembly
差速组装
差速组装
Bag-B
Bag-B
ａ ｑｕａｒｔｅｒａ ｑｕａｒｔｅｒ
皮带调整环
Belt Adjustment Ring
T01086
小皮带
Small Belt
T01100
皮带
Belt
T01099
M2.5x8螺丝
M2.5x8 Screw
T01117
……………2
M2.5x8螺丝
T01117
M2.5x8 Screw
上层位置提供更多前差速转向但提供更少的前牵引。
推荐用於中-高抓地赛道中控制。
Front diff upper position provides more steering but provides less
front traction.Recommended for medium-high grip tracks and
technical tracks.
提供更低的位置前面差速前牵引但使汽车更多的推动
力量。推荐用於低抓地赛道。
Front diff low position provides more front traction but makes the
car more push on power.Recommended for low traction track.
INITIAL POSITION
PLACE TAB IN THIS BOTTOM NOTCH
TO LOOSEN FRONT BELT:
Rotate both front nylon hubs in arrow direction A
TO TIGHTEN FRONT BELT:
Rotate both front nylon hubs in arrow direction B
上层位置提供更多后方差速权力转向但让后方略微宽松的。
推荐用於中-高抓地赛道。
Rear diff upper position provides more on-power steering but makes the
rear slightly more loose.Recommended for medium-high traction tracks.
提供更低的位置前面差速前牵引但使汽车更多的推动
力量。推荐用於低抓地赛道。
Rear diff lower position provides more rear traction,mainly on
power traction and makes the car more stable in the chicanes,
but makes the car push more on power.Recommended for
low-medium traction.
TO LOOSEN FRONT BELT:
Rotate both rear nylon hubs in arrow direction A
TO TIGHTEN FRONT BELT:
Rotate both rear nylon hubs in arrow direction B
INITIAL POSITION
PLACE TAB IN THIS BOTTOM NOTCH
A
B
A
B
中轴
Axis
T01025
4x6x1.5垫片
4x6x1.5 Washer
T01017
........................1
4x6x1.5垫片
T01017 4x6x1.5 Washer
B
A
B
A
