“Ultra IBEC” Ignition Battery Eliminator Users Manual
Copyright 2010 Tech-Aero Designs
www.tech-aero.net
6

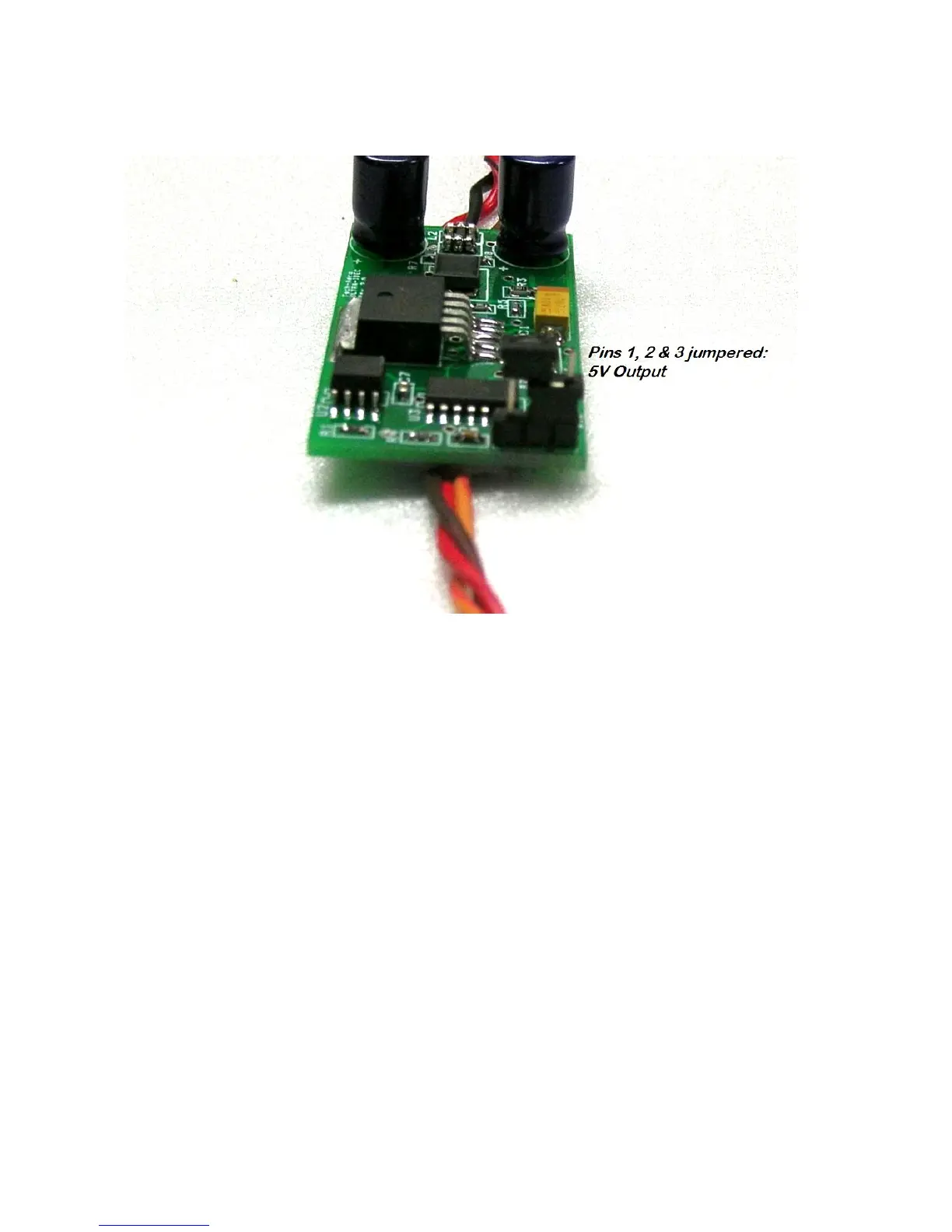

Figure 6 - Ultra IBEC 5V Jumper Configuration
Additional Usage Guidelines
Mounting the Ultra IBEC should be done with the same care needed for other airborne electronics,
such as the receiver in the model. Fasten the Ultra IBEC with a Velcro
®
strap around the mid-section A
piece with ¼” or thicker foam padding placed underneath the unit. Make the strap just snug enough to
press the unit lightly into the foam padding beneath it. Alternatively, a piece of adhesive backed
Velcro
®
can be used on the bottom side of the circuit board. The 3mm LED can be mounted by gluing
in a location that makes it easy to observe during engine starting operations. To allow easy removal to
remount in a different model, a non-acidic adhesive such as Goop can be used. Use care to avoid getting
any glue on the LED lens!
Disclaimer
Proper care and maintenance of your configuration is required for reliable and safe operation of
your model. It is your responsibility to follow these instructions, as well as those provided with all other
parts of your model aircraft that you have selected for your use. The Ultra IBEC is covered by a 1 year
limited warranty. If the Ultra IBEC is found to malfunction due to a product defect or failure, it will be
repaired or replaced during the warranty period. Tech-Aero Designs liability is strictly limited to the
replacement cost of the Ultra IBEC if it is found to be defective. Tech-Aero Designs assumes no
responsibility or liability for product misuse, neglect or crash damage, or for the careless or reckless
operation of the model aircraft in which it is installed.
