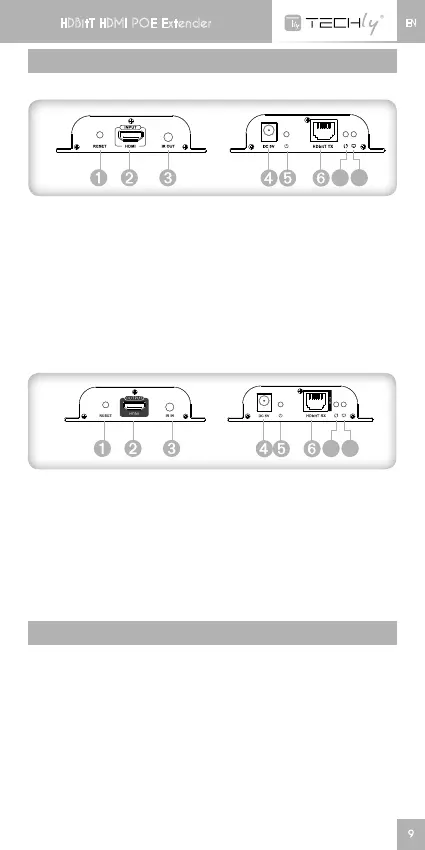

PANEL DESCRIPTION
1. HDMI EXTENDER TX (Sender)
7 8
➊
Reset
➋
HDMI signal input
➌
IRSignaloutputtoconnectwithblasterextensioncable
➍
Powerinput(DC5V)
➎
Powerlight
➏
HDBitTsignaloutput(POEInput)
➐
Data transmission light
➑
Networklinklight
2. HDMI EXTENDER RX (Receiver)
7 8
➊
Reset
➋
HDMI signal output
➌
IRSignalinputtoconnectwithIRreceiverextensioncable
➍
Powerinput(DC5V)
➎
Powerlight
➏
HDBitTsignalinput(POEInput)
➐
Data transmission light
➑
Networklinklight
INSTALLATION PROCEDURES
How to make a Cat.5/6 network cable
FollowthestandardEIA-568B:
1-Orange/white
2-Orange
3-Green/white
4-Blue
5-Blue/white
6-Green
7-Brown/white
8-Brown
