Wiring of the rearview camera

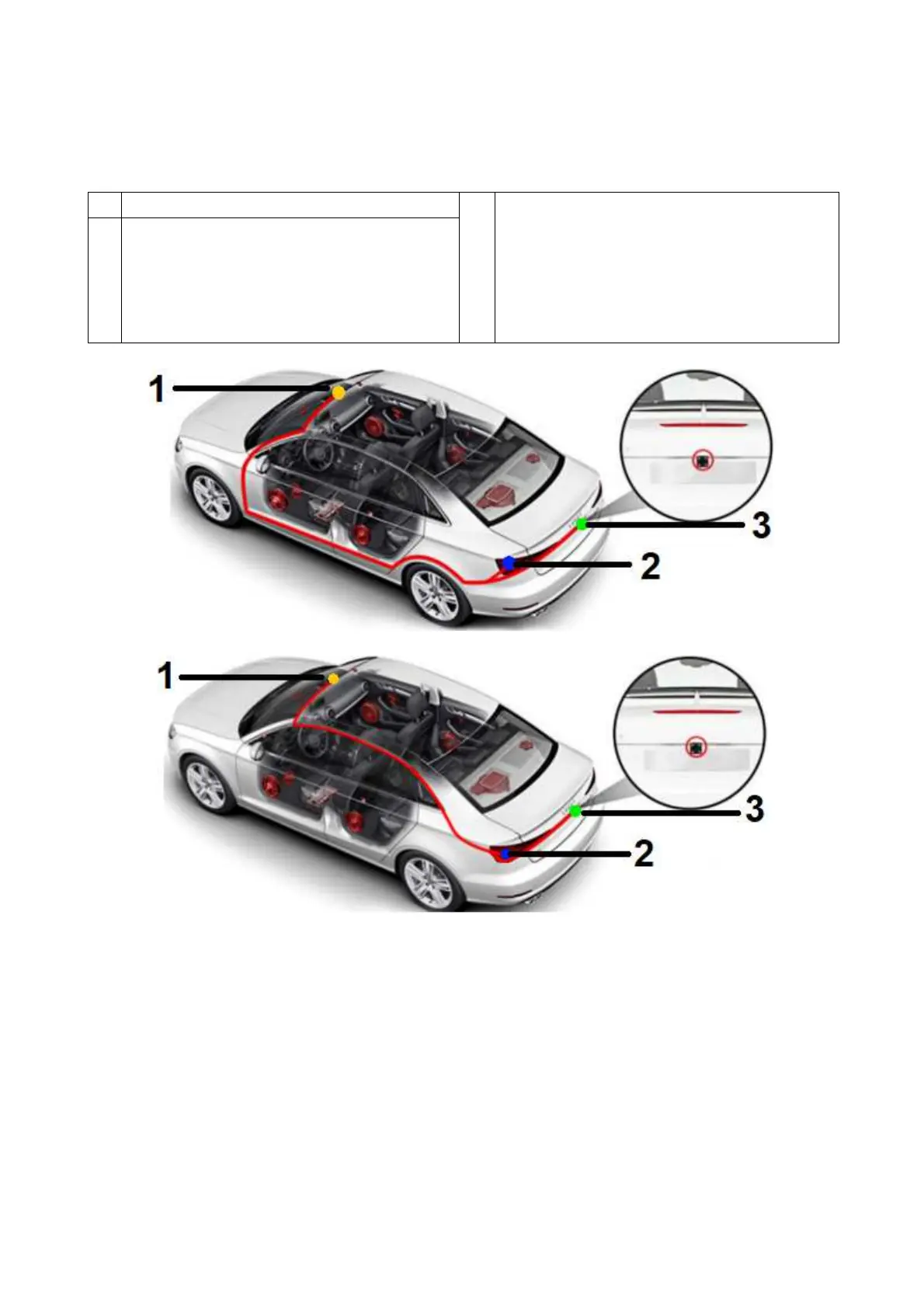

The pictures below show an example how to lay the video/power cable from
the front mirror to the back.
1 Mirror with AV–IN port
2
Connect red cable with positive
pole of reversing light
3
Attach rear view camera in the
middle of the car above/beneath
the license plate. Drill a 5mm
sized hole into the body of the car
and fasten the camera with the
screws enclosed.
The 2.5mm plug needs to be plugged in the AV IN of the mirror. Camera plug
and the red cable of the camera need to be directed to the back of the car.
Connect the red cable with the positive pole of the reversing light.
Note: The image of the rear view camera is not automatically displayed in full
screen of the rearview mirror, when you go into reverse gear without the
connection to the reversing light.
