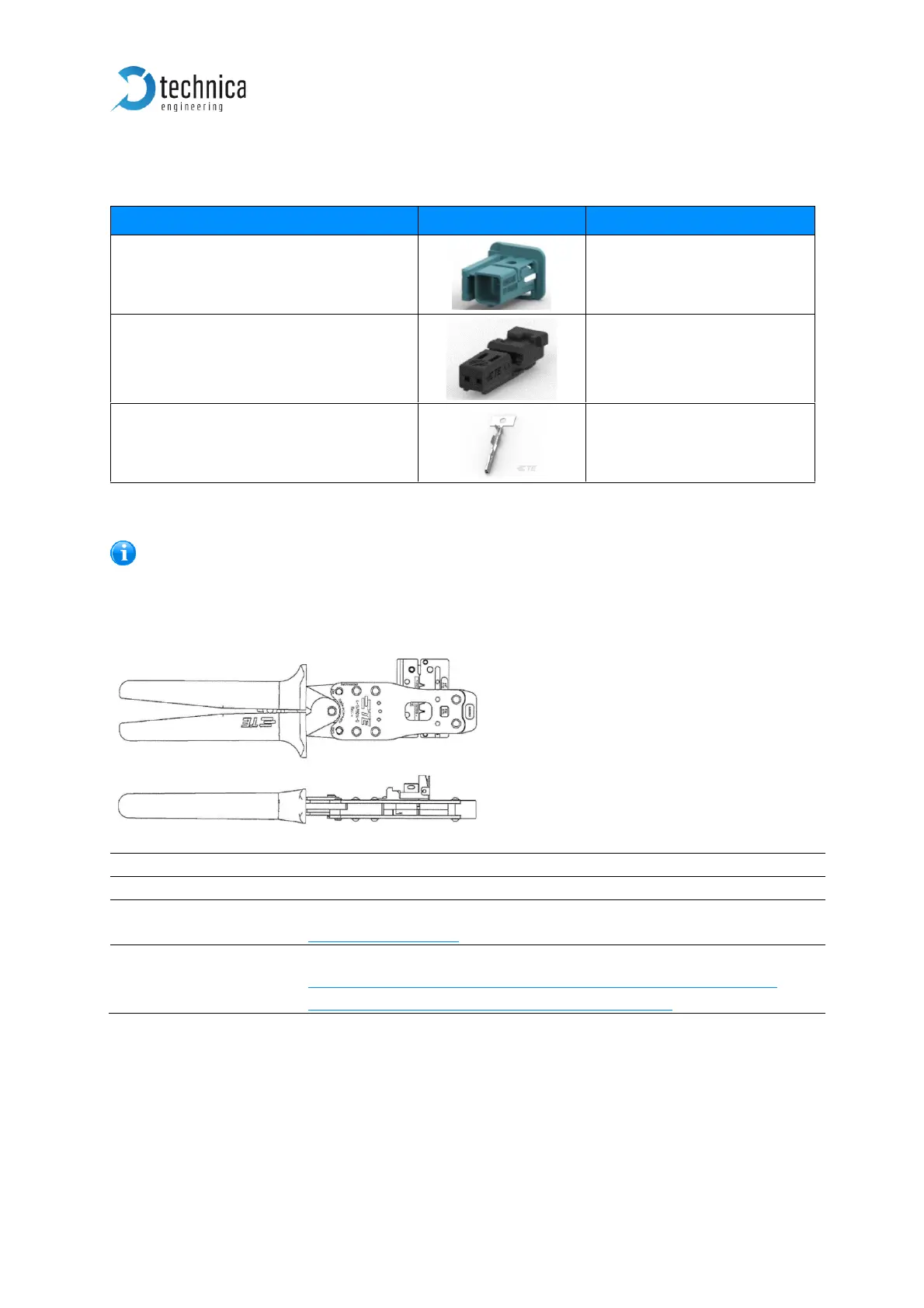

2.1.2 MATEnet connector (2)
Name
Part Number
Tyco 1-PORT MATENET HDR ASSY
90DEG
2302454-9
Tyco MATENET, FEMALE INSERT MODUL,
BLACK
2302450-1
Tyco Nano MQS crimp contact
1-1703930-2
Table 2-1: Parts of Tyco MATEnet Connector
You can use the official Tyco tool for these crimp contacts. But we recommend
purchasing a ready-to-use cord set.
Official Crimp Tool:
Name
TE CONNECTIVITY CS11K NANO-MQS, 0.13-0.35 SQ.M
TE Internal Number
4 -1579014 – 0
Distributor
Börsig GmbH
www.boersig.com
Distributor
Digikey
https://www.digikey.de/product-detail/de/te-application-
tooling/4-1579014-0/A141876-ND/5121549
