Technica Engineering TE-1402 User Manual

100/1000BASE-T1 Media Converter MATEnetUser Manual
12
2.1.4 Debug connector (4)
The debug connector can be used as a serial interface to interact with the device. This
interface enables the user to read TX/RX register counters, SQI values of the channels,
CRC errors, and other information. It can also be used for bootloader updates of the
device.
A USB-B cable is needed for connection to the service connector. This is not part of
the delivery and cannot be ordered.
This is not a video interface.

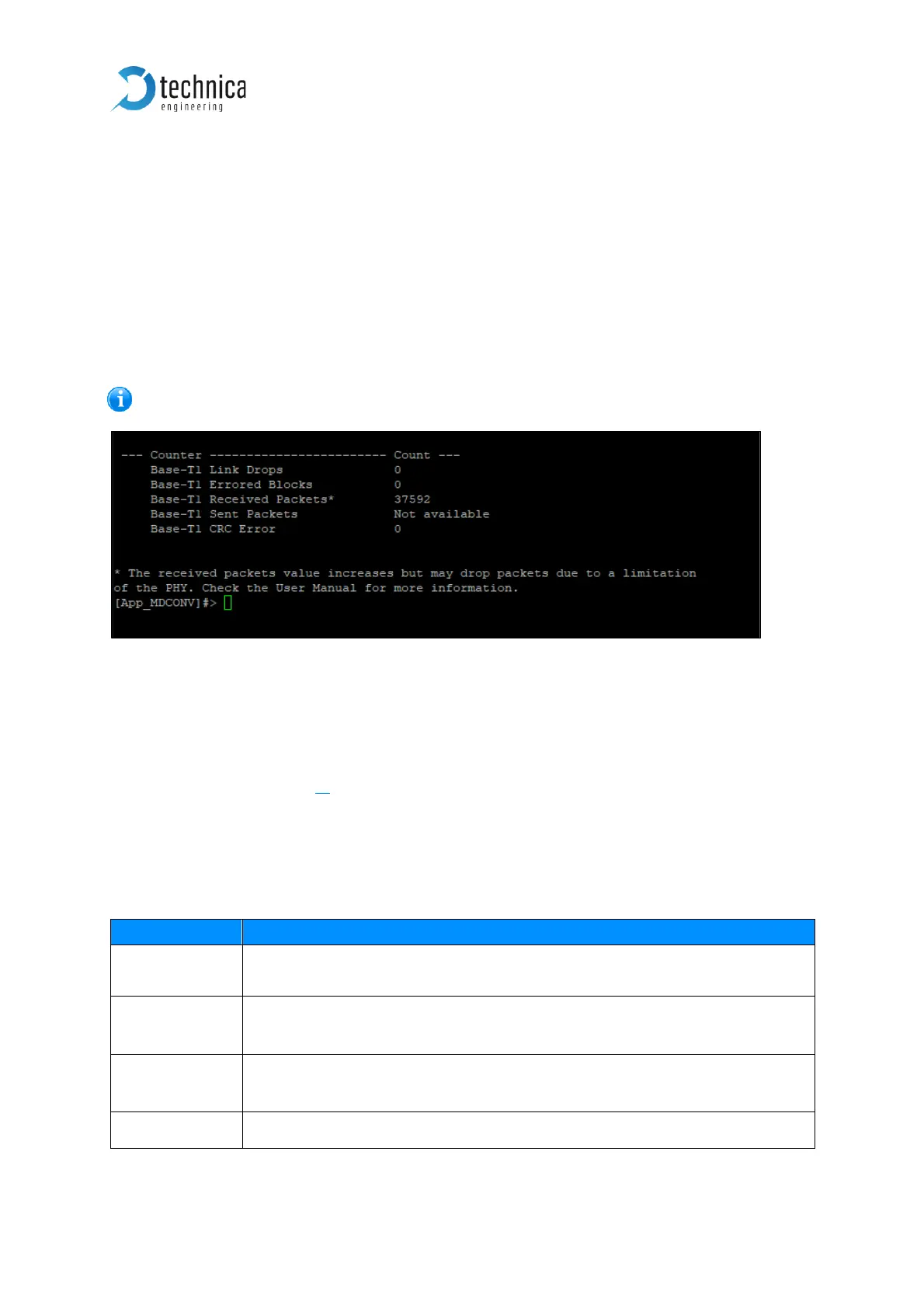

Figure 2-4 Example of information from debug connector
2.2 DIP switches (5)
These DIP Switches are for configuration. You can find more information about
configuration in CHAPTER 3
2.3 Status LEDs (6)
The 100/1000BASE-T1 MediaConverter has 5 LEDs on the front side of the case.
LED
Description
Host LED
Will blink slowly(once a second), during normal operation of the device.
GP LED
General-purpose LED. will be lit when the PHYs are configured. If the PHYs fail to
get configured this LED will be off.
Error LED (red)
Will be lit when at least one CRC error is detected. This may happen when the
MATEnet connector is plugged during operation.
Link LED
100 or 1000Base-T1 Link active.
