100/1000BASE-T1 Media Converter MATEnetUser Manual
9
2 Hardware interfaces
2.1 Connectors

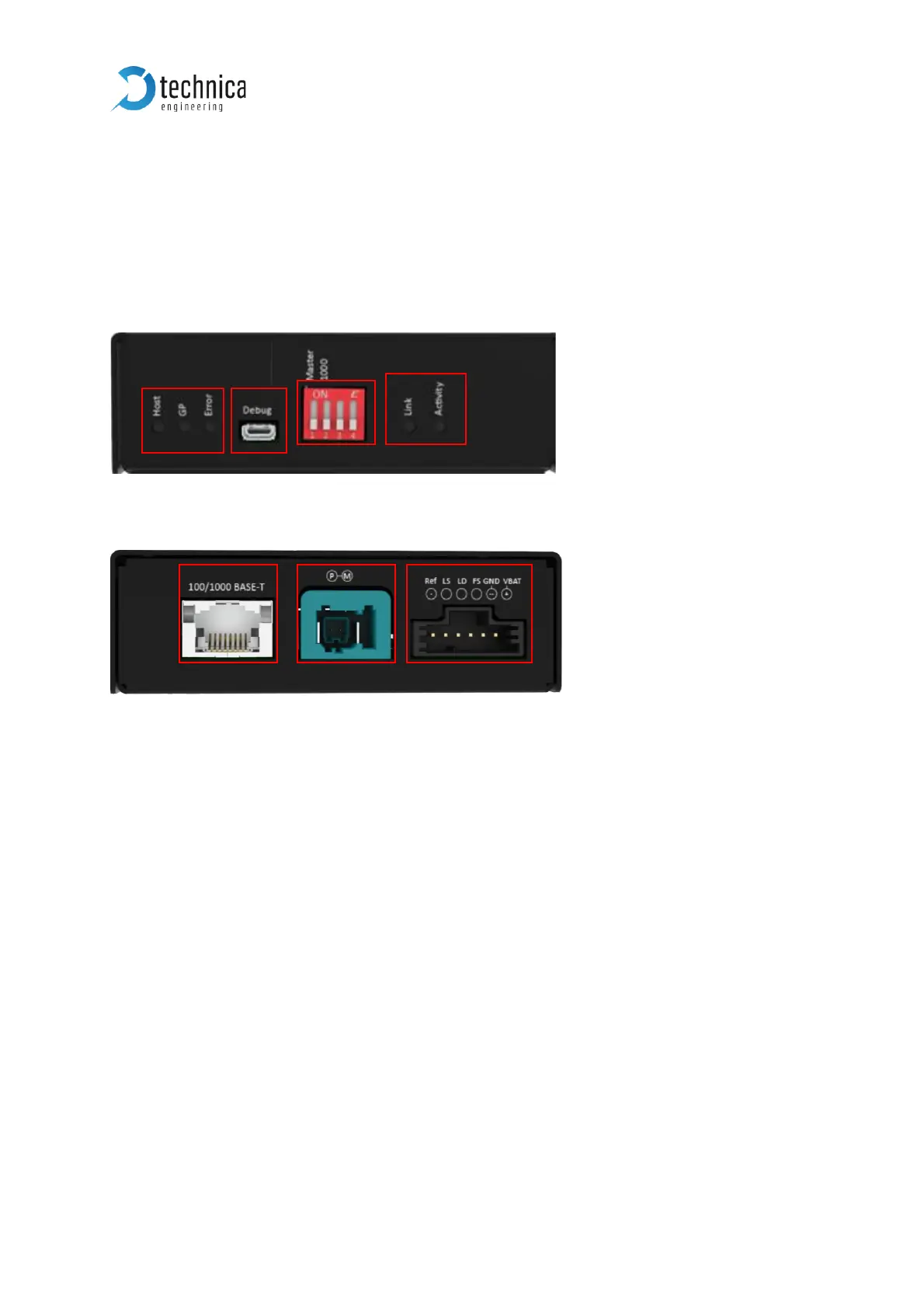

Here you can see an overview of all HW interfaces of the 100/1000BASE-T1 Media
Converter on the front side and backside.
Figure 2-1: Front side of MediaConverter
Figure 2-2: Backside of MediaConverter
2.1.1 RJ-45 connector (1)
This is a standard RJ-45 connector to be used with CAT5e STP cable for 100BASE-TX
or 1000BASE-T connections.
1
2
3
6
4
5
6
