Technica Engineering TE-1402 User Manual

100/1000BASE-T1 Media Converter MATEnetUser Manual
4
1 Product description
1.1 Functionality

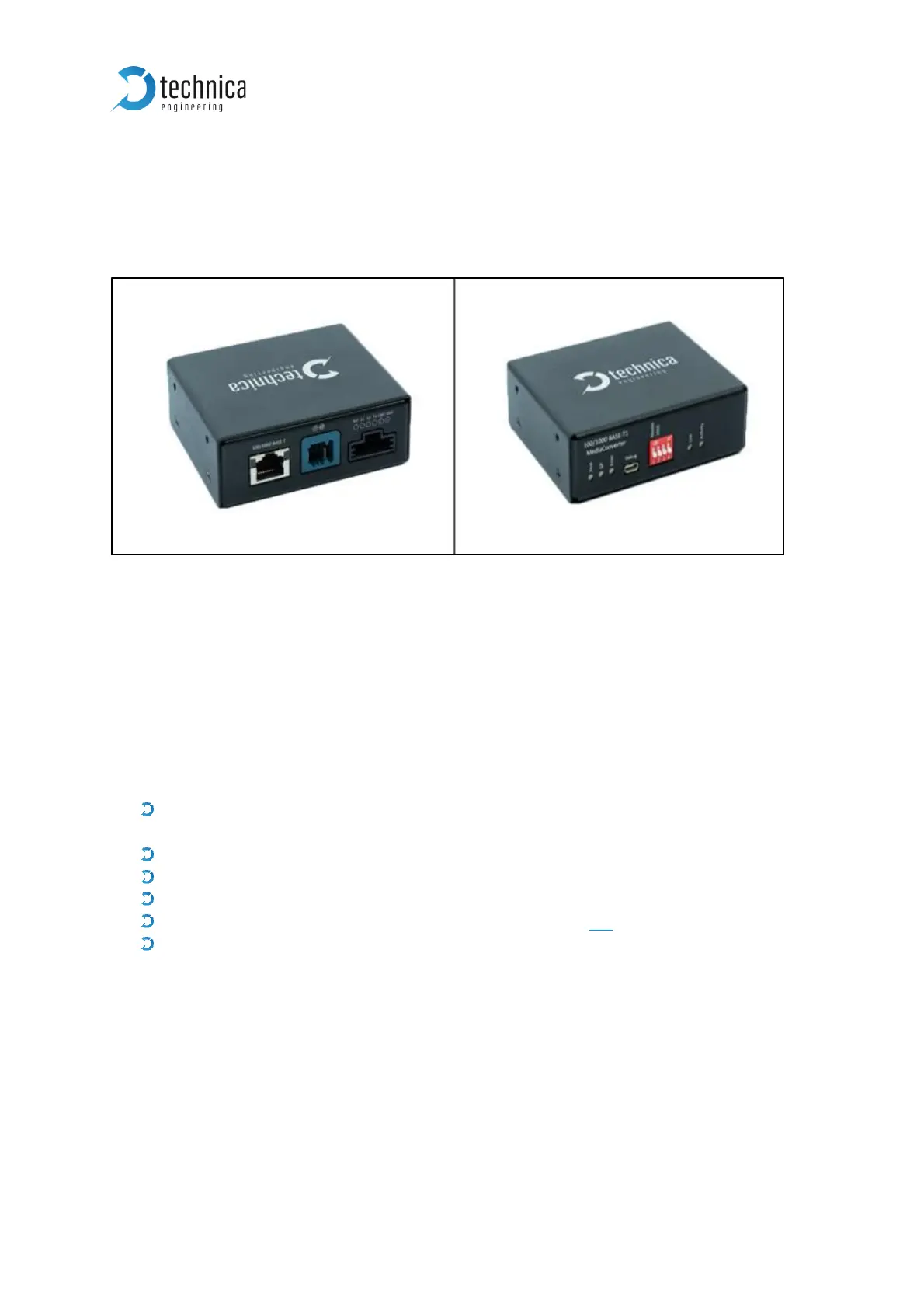

Figure 1-1: 100/1000BASE-T1 MediaConverter MATEnet
Automotive ethernet though similar in functionality has some differences in
comparison to standard ethernet. To interact between the two technologies, a
converter is needed. The Technica Engineering 100/1000BASE-T1 MediaConverter
MATEnet is a physical layer converter providing conversion between100/1000BASE-
T1 and 100 BASE-TX or 1000BASE-T with a constant delay of about 2 µs.
1.1.1 Features
1 Port 100/1000Base-T1 Ethernet with Marvell 88Q2112 A2 Transceiver, 100/1000 MBit/s
Fullduplex on a single unshielded twisted pair with MATEnet Connector
1 Port 100BASE-TX / 1000BASE-T1 Ethernet with RJ-45 connector
Robust steel case
4 DIP Switches for easy configuration
Support of 1000BASE-T1 Marvell IEEE Mode (See CHAPTER 6.1) and Marvell Legacy Mode
Frame generator

Technica Engineering TE-1402 Specifications

General

Brand	Technica Engineering
Model	TE-1402
Category	Media Converter
Language	English
