MM3000

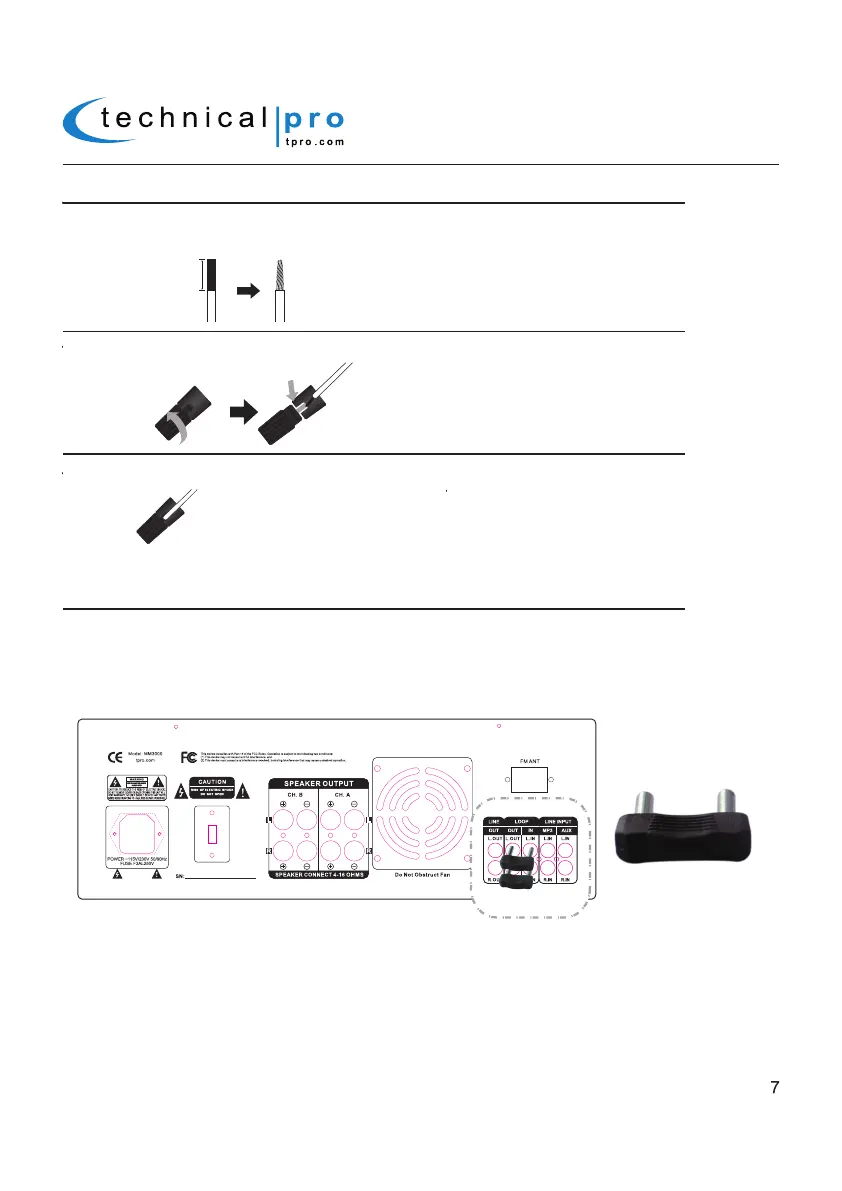

1.Remove approximately 10 mm (0.4 in) of insulation from the end of each speaker
cable and twist the exposed wires of the cable together to prevent short circuits.
2.Unscrew the main speaker output terminal on the rear of the MM3000. Insert the
exposed speaker wire into the opening.
10 mm (0.4 in)
3.Tighten the knob.
Connecting the speaker wire to the MM3000’s main speaker outputs
Connecting the EQ plugs to the MM3000’s Loop Input & output
The Loop Input & Output jackes on the rear panel of MM3000 are for equalizer. The Loop Input
should be connected to the output of the equalizer and the Loop Output should be connected to
the input of this same equalizer. If there is no equalizer connected to the MM3000, the EQ plugs
packed with the unit must be pluged into the Loop Input and Output jacks like the diagram below.
Otherwise there won’t be any volume output from the speakers.
EQ Plug
EQ Plug Connection
NOTE: WHEN MAKING THESE CONNECTIONS THE POWER OF THE MM3000 AND THE
SIGNAL SOURCE SHOULD ALL BE IN THE OFF POSITION WITH THE VOLUME LEVELS
TURNED DOWN.
