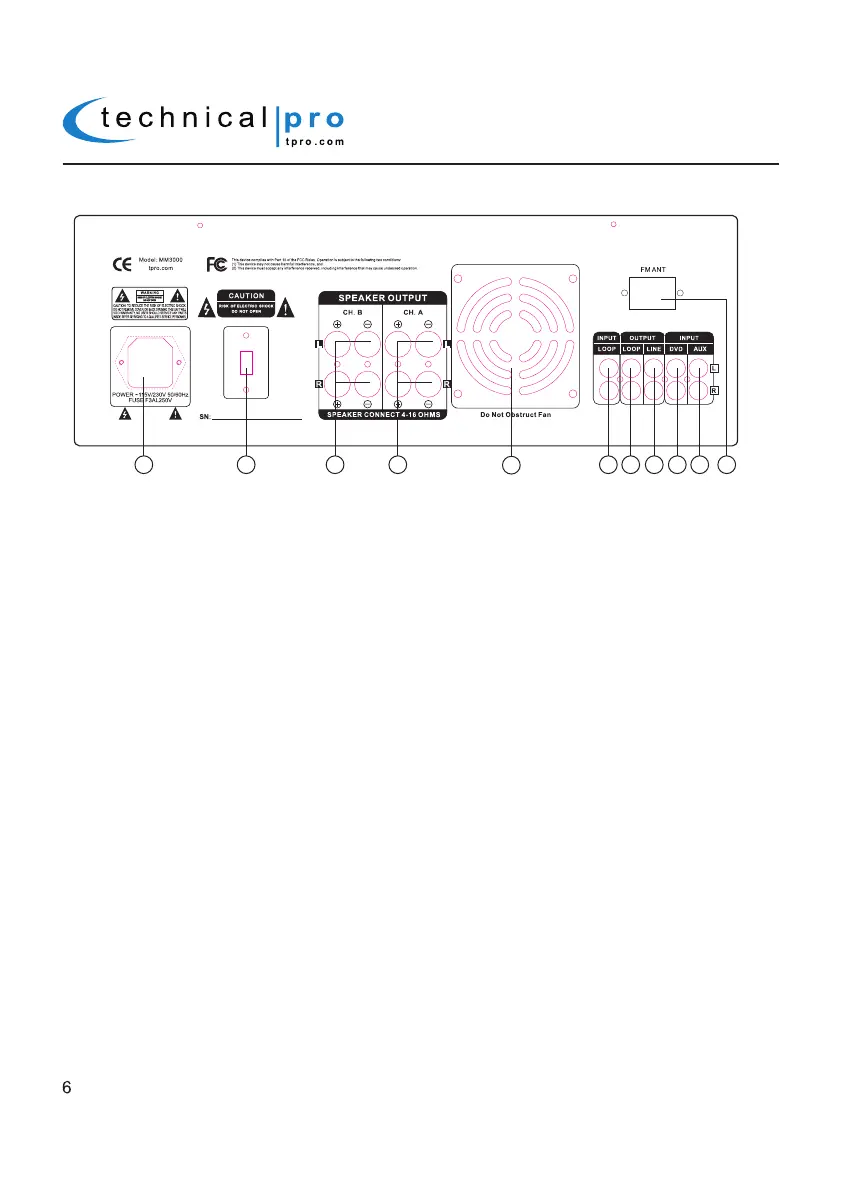

MM3000 Rear Panel
MM3000
1 2 6
5
7 8 9
10
11
3 4
1.Power Supply: Only use the power cord provided with the unit to power the unit. When connecting
and disconnecting the power cord, be sure the power of the unit is off. Connect the cord to the rear of
the unit and then connect it to the outlet.
2.Voltage selector: Select between 230V AC 50Hz / 115V AC 65Hz. When using with a 115V outlet,
the unit should be set to 115V.
3.Group B Main Speakers: Connect your main speakers to these speaker outputs. The unit should be
powered off and volume levels turned down when making these connections.THE MM3000 OPERATES
MOST EFFICIENTLY WHEN USED WITH 8 OHM SPEAKERS.
4.Group A Main Speakers: Connect your main speakers to these speaker outputs. The unit should be
powered off and volume levels turned down when making these connections.THE MM3000 OPERATES
MOST EFFICIENTLY WHEN USED WITH 8 OHM SPEAKERS.
5. Cooling Fan: Do not obstruct the fan.
6.Loop Input: The Loop input is designed to connect to the output of a separate equalizer. This
equalizer should be the same one which “Loop Output” is connected to. If the Loop Output is connected
to a different device or not used at all the there won’t be any volume output from the speakers.
7.Loop Output: The loop output is designed to connect to the input on a separate equalizer. This
equalizer should be the same one which "Loop Input" is connected to. If there is no equalizer needed,
insert in the plug provided with the unit to enable this function.
If there is no equalizer connected to this output and the plug isn’t connected, there won’t be any
volume output from the speakers connected.
8.Line Outputs: Connect the line output to either a recording device, another amplifier or a powered
(active) subwoofer.The signal from the line output is a passive output and cannot be connected directly
to a passive speaker.
9.DVD Input: Connect any stereo signal output such as a DVD, CD, TAPE, Mixer etc to this input. To
play a signal connected to this input make sure the MP3 input is selected on the front panel.
10.AUX Input: Connect any stereo signal output such as a DVD, CD, TAPE, Mixer etc to this input. To
play a signal connected to this input make sure the AUX input is selected on the front panel.
11.FM Antenna: Connect your FM antenna here.
