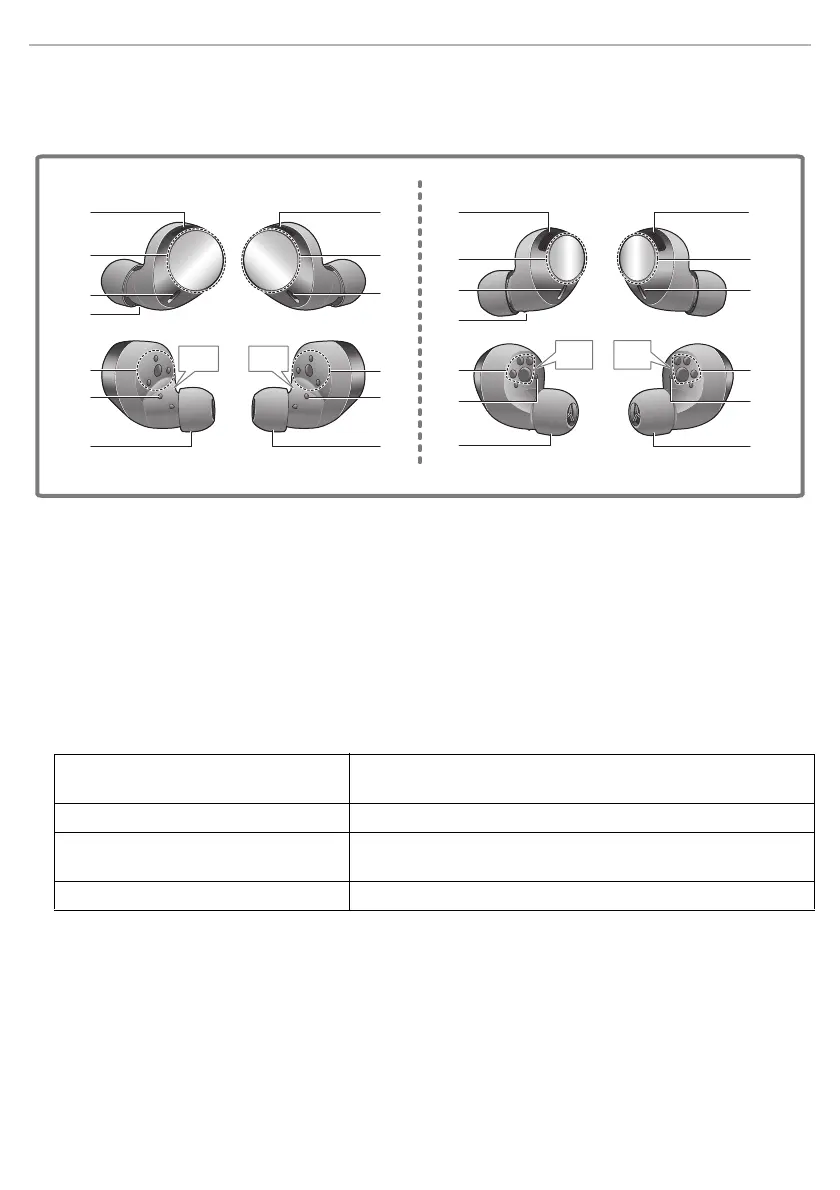

Part names
Main unit (earphones)
(“Earphones” hereafter in the instructions)
A L side earphone (left)
B R side earphone (right)
*1 Examples of earphone LED lighting/blinking patterns
*2 The battery is low when it is blinking in red. (
l 17, “Battery level notification”)
1 [EAH-AZ60] Microphone for noise cancelling
2 [EAH-AZ40] Microphone for external sounds
3 Touch sensor (L) (left)
4 Touch sensor (R) (right)
• Touching these enables you to perform a variety of
operations. (
l 28, “Operating with the touch
sensors”)
5 Microphones for calls
6 Raised dot indicating the L side
7 Charging terminals
8 Earphone LEDs
*1
9 Earpieces
Both earphone LEDs (L and R) blink
alternately in blue and red
Bluetooth
®
pairing (registration) standby
Blinking slowly (blue)
*2
Bluetooth
®
connection standby
Blinking twice about every 5 seconds
(blue)
*2
When connected with Bluetooth
®
(playing back music/in a call, etc.)
Blinking (blue)
*2
A call is being received
L
R
L
R
1
8
1
6
9
7
3
5
9
8
7
4
5
[EAH-AZ60]
2
8
2
6
7
3
5
9
7
8
4
5
9
[EAH-AZ40]
