Technics Quartz ST-G7 User Manual

ST-G7 ST-G7

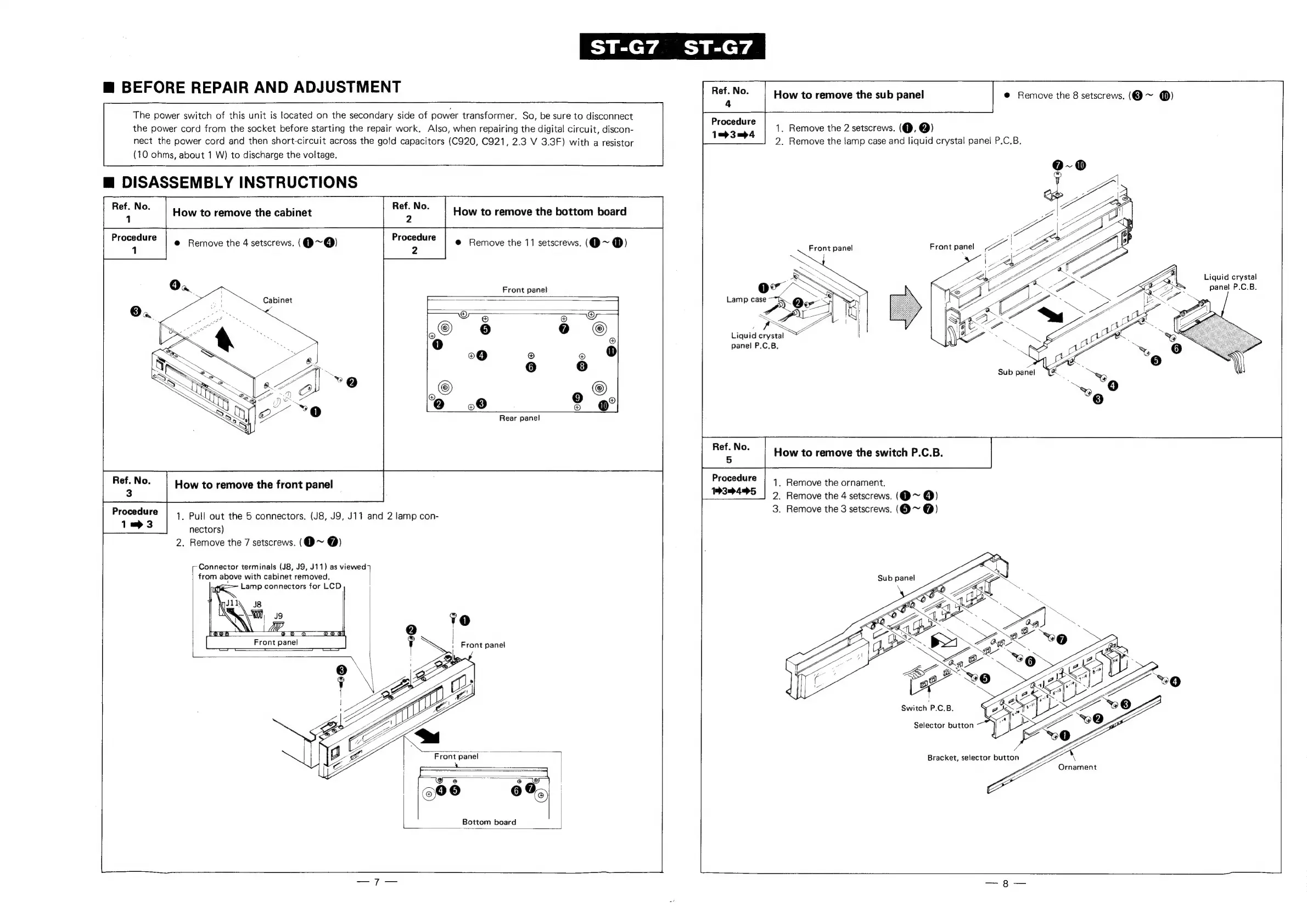

m BEFORE REPAIR AND ADJUSTMENT
The power switch of this unit is located on the secondary side of power transformer. So, be sure to disconnect
the power cord from the socket before starting the repair work. Also, when repairing the digital circuit, discon-
nect the power cord and then short-circuit across the gold capacitors (C920, C921, 2.3 V 3.3F) with a resistor
(10 ohms, about 1 W) to discharge the voltage.
m DISASSEMBLY INSTRUCTIONS
ee] How to remove the cabinet | How to remove the bottom board
Procedure
2
@ Remove the 11 setscrews. (Q@~ @)
Front pane}
Cabinet
Rear panel
1. Pull out the 5 connectors. (J8, J9, J11 and 2 lamp con-
nectors)
2. Remove the 7 setscrews. (Q@~ @)
3
Procedure
1=3
Connector terminals (J8, J9, J11) as viewed
from above with cabinet removed,
Lamp connectors for LCD
J11\, 3g
|
\ \ im) 9
A ay 7)
Front panel
Bottom board
@ Remove the 8 setscrews. (Q@~ @)
ae No. How to remove the sub panel
Procedure
1=>3=p4
1. Remove the 2 setscrews. (@, @)
2. Remove the lamp case and liquid crystal panel P.C.B.
Front panel
Liquid crystal
panel P.C.B.
: Z |
Liquid crystal! |
panel P.C.B.
Procedure
1939495
1. Remove the ornament.
2. Remove the 4 setscrews. (Q@~ @)
3. Remove the 3 setscrews. (@ ~ @)
Switch P.C.B.
Selector button
