Technics RS-630USD

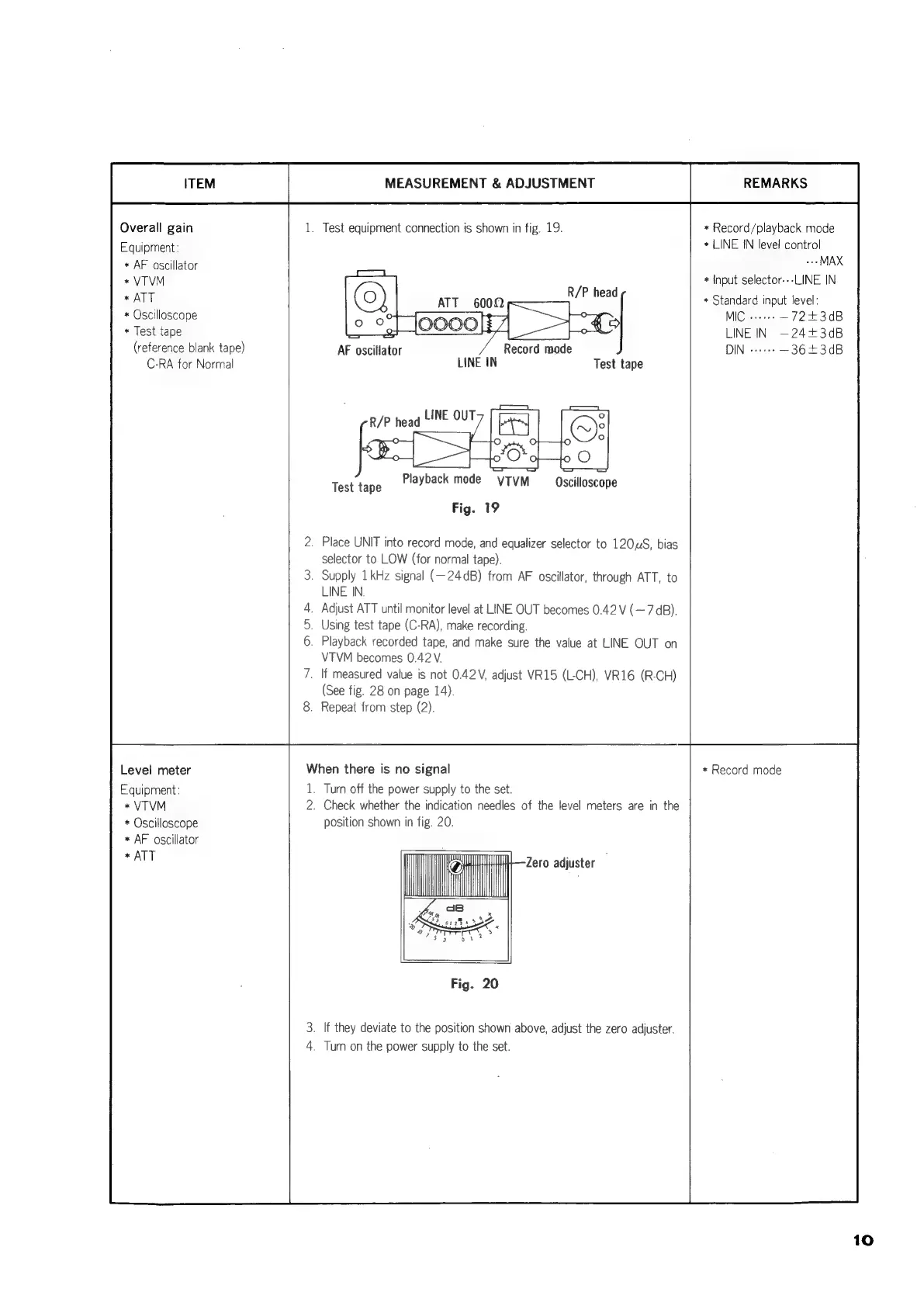

ITEM MEASUREMENT & ADJUSTMENT REMARKS
Overall gain
Equipment:
* AF oscillator
* VTVM
* ATT
* Oscilloscope
* Test tape
(reference blank tape)
C-RA for Normal
Level meter
Equipment:
* VTVM
+ Oscilloscope
* AF oscillator
* ATT
1. Test equipment connection is shown in fig. 19.
AF oscillator Record mode
LINE IN Test tape
R/P head
Playback mode yTVM Oscilloscope
Fig. 19
Test tape
. Place UNIT into record mode, and equalizer selector to 1204S, bias
selector to LOW (for normal tape).
. Supply 1kHz signal (—24dB) from AF oscillator, through ATT, to
LINE IN.
. Adjust ATT until monitor level at LINE OUT becomes 0.42 V (—7 dB).
. Using test tape (C-RA), make recording.
. Playback recorded tape, and make sure the value at LINE OUT on
VTVM becomes 0.42 V.
. If measured value is not 0.42V, adjust VR15 (L-CH), VR16 (R-CH)
(See fig. 28 on page 14).
. Repeat from step (2).
When there is no signal
1. Turn off the power supply to the set.
2. Check whether the indication needles of the level meters are in the
position shown in fig. 20.
3. If they deviate to the position shown above, adjust the zero adjuster.
4. Turn on the power supply to the set.
* Record/playback mode
* LINE IN level control
.. MAX
* Input selector---LINE IN
* Standard input level:
LINE IN —24+3dB
DIN +++ ~36+3dB
* Record mode
10
