Technics RS-630USD

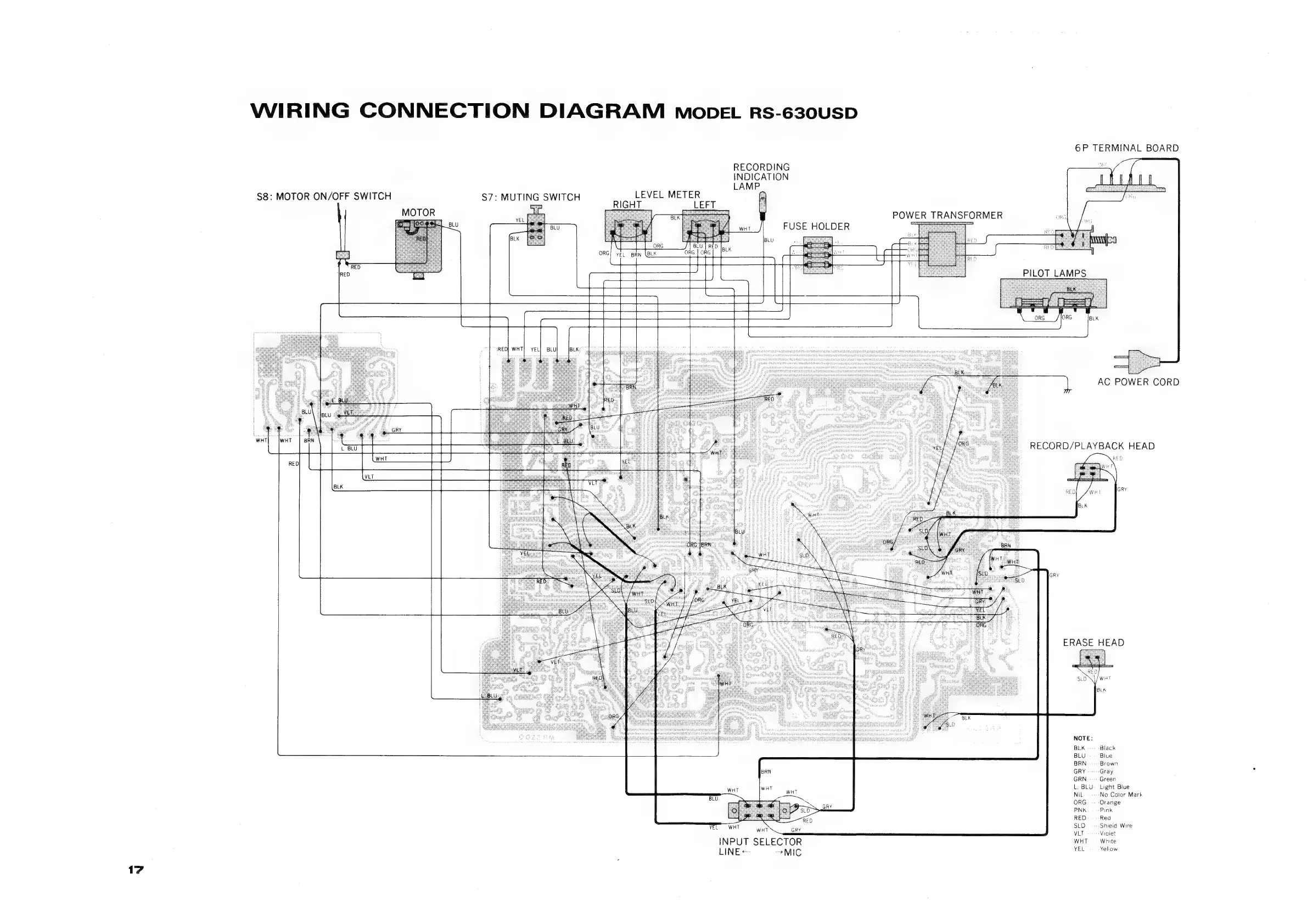

WIRING CONNECTION DIAGRAM MoDEL RS-630USD
6P TERMINAL BOARD
RECORDING
INDICATION
LAMP
LEVEL METER
S8: MOTOR ON/OFF SWITCH $7: MUTING SWITCH
POWER TRANSFORMER ORG
WHT FUSE HOLDER
AC POWER CORD
ERASE HEAD
SLO WHT
BLK
NOTE:
BLK. Black
BLU Blue
BRN Brown
GRY Gray
GRN Green
L. BLU: Light Biue
NIL. ----No Color Mark
ORG: -- Orange
PNK “Pink
RED Red
SLD Shieid Wire
VLT Violet
INPUT SELECTOR WHT White
LINE
<
->MIC
YEL
Yellow
