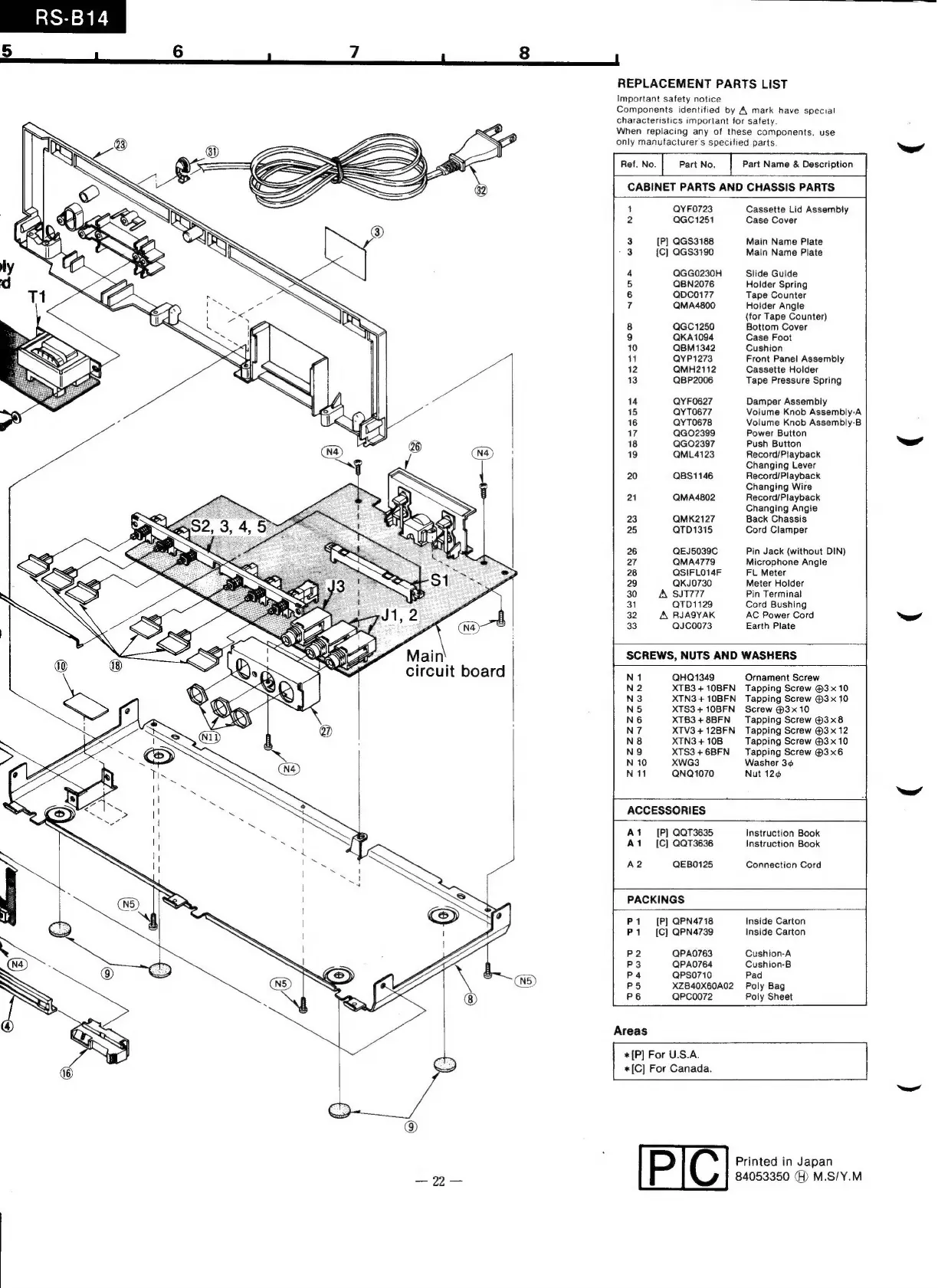

REPLACEMENT PARTS LIST
Important safety notice
Components identified by
A mark have special
characteristics important for safety.
When replacing any of th
only manufacturer's specif
ese components. use
ied parts.
Part Name & Description
CABINET PARTS AND CHASSIS PARTS
1 QYF0723
2 QGC1251
3 [P] QGS3188
3 ІСІ 0653190
4 QGG0230H
5 QBN2076
6 QDC0177
7 QMA4800
8 QGC1250
9 QKA1094
10 QBM1342
11 QYP1273
12 QMH2112
13 QBP2006
14 QYF0627
15 QYT0677
16 QYT0678
17 QGO2399
18 QGO2397
19 QML4123
20 QBS1146
21 QMA4802
23 QMK2127
25 QTD1315
26 QEJ5039C
27 QMA4779
28 QSIFLO14F
29 QKJ0730
30 A 507777
31 QTD1129
32 A RJA9YAK
33 QJC0073
Cassette Lid Assembly
Case Cover
Main Name Plate
Main Name Plate
Slide Guide
Holder Spring
Tape Counter
Holder Angle
(for Tape Counter)
Bottom Cover
Case Foot
Cushion
Front Panel Assembly
Cassette Holder
Tape Pressure Spring
Damper Assembiy
Volume Knob Assembly-A
Volume Knob Assembly-B
Power Button
Push Button
Record/Playback
Changing Lever
Record/Playback
Changing Wire
Record/Playback
Changing Angle
Back Chassis
Cord Clamper
Pin Jack (without DIN)
Microphone Angle
FL Meter
Meter Holder
Pin Terminal
Cord Bushing
AC Power Cord
Earth Plate
SCREWS, NUTS AND WASHERS
QHQ1349
XTB3 + 10BFN
XTN3 + 10BFN
XTS3 + 10BFN
XTB3 + 8BFN
XTV3 + 12BFN
XTN3 + 10B
XTS3 + 6BFN
XWG3
QNQ1070
= à OONOOWN =
ZZZZZZZZZZ -о
Ornament Screw
Tapping Screw @3 x 10
Tapping Screw @3 x 10
Screw @3x 10
Tapping Screw 03х8
Tapping Screw @3x 12
Tapping Screw 3x 10
Tapping Screw 3x6
Washer 3¢
Nut 129
ACCESSORIES
A1 ІРІ QQT3635
A1 ІСІ QQT3636
A2 QEB0125
Instruction Book
Instruction Book
Connection Cord
PACKINGS
Р1 ІРІ QPN4718
Р1 ІСІ QPN4739
P2 ОРА0763
РЗ ОРА0764
Р4 QPS0710
P5 XZB40X60A02
P6 ОРС0072
Areas
Inside Carton
Inside Carton
Cushion-A
Cushion-B
Pad
Poly Bag
Poly Sheet
x [P] For U.S.A.
*[C] For Canada.
Printed in Japan
C 84053350 (Н) M.S/Y.M
