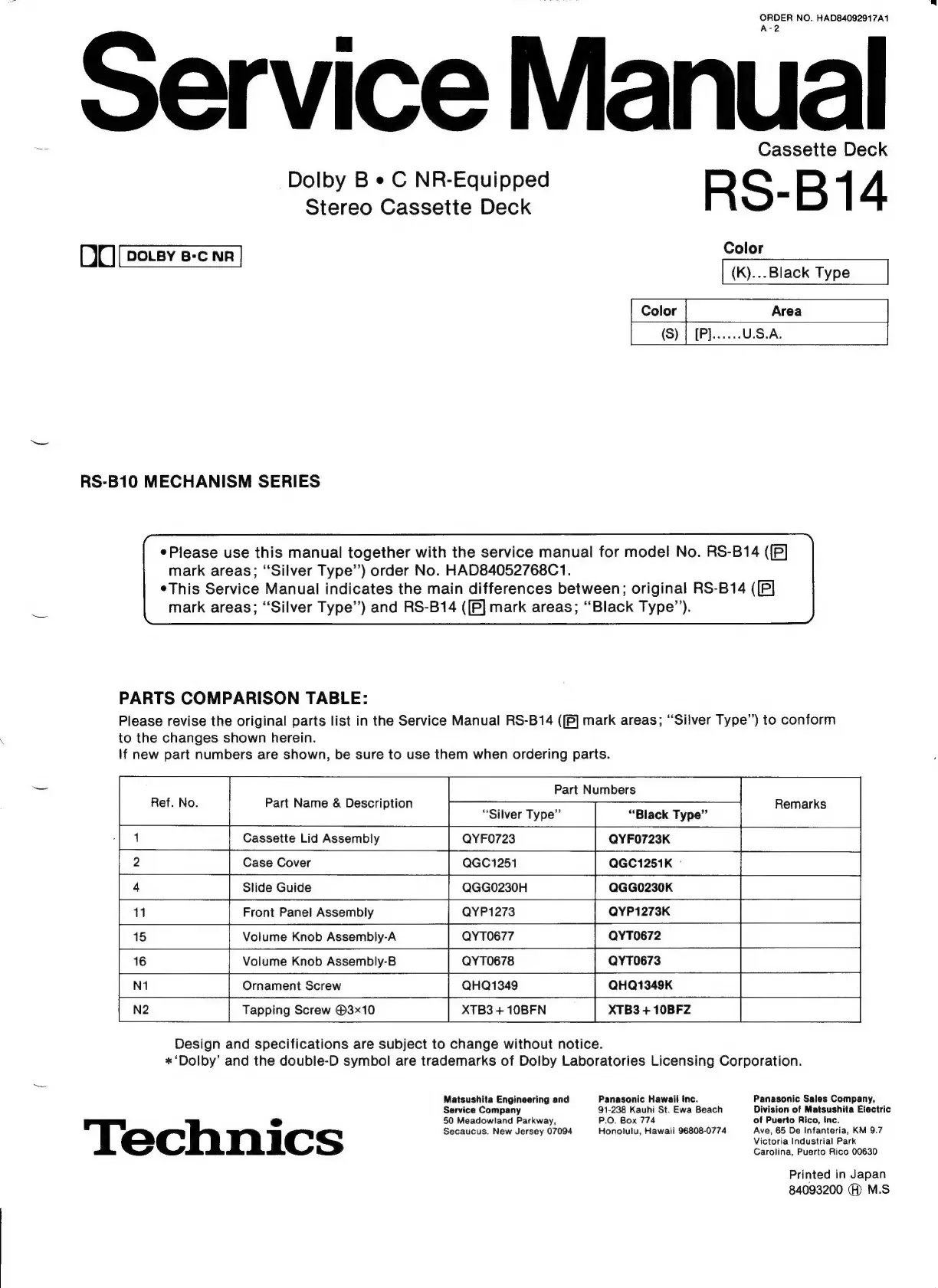

Technics RS-B14 User Manual

ORDER NO. HAD84092917A1
A-2
Service Manual
Cassette Deck
Dolby В» С NR-Equipped RS
Stereo
Cassette
Deck
B
1
4
DOCS ac wn] Color
(K)...Black Type
(S) | [P]......U.S.A.
RS-B10 MECHANISM SERIES
«Please use this manual together with the service manual for model No. RS-B14 ([P]
mark areas; “Silver Type") order No. HAD84052768C1.
*This Service Manual indicates the main differences between; original RS-B14 ([P]
mark areas; "Silver Туре”) and RS-B14 ([P] mark areas; “Black Type").
PARTS COMPARISON TABLE:
Please revise the original parts list in the Service Manual RS-B14 ((Б| mark areas; “Silver Type") to conform
to the changes shown herein.
If new part numbers are shown, be sure to use them when ordering parts.
Part Numbers
Part Name & Description Remarks
"Silver Type" “Black Type"
Cassette Lid Assembly QYF0723 QYF0723K
Case Cover QGC1251 QGC1251K :
Slide Guide QGG0230H QGG0230K
Front Panel Assembly QYP1273 QYP1273K
Volume Knob Assembly-A QYT0677 QYT0672 ee. l
Volume Knob Assembly-B QYT0678 QYT0673 AMEN
Tapping Screw 3x10 XTB3 + 10BFN XTB3 + 10BFZ
Design and specifications are subject to change without notice.
* ‘Dolby’ and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
Matsushita Engineering and Panasonic Hawaii Inc. Panasonic Sales Company,
Service Company 91-238 Kauhi St. Ewa Beach Division of Matsushita Electric
50 Meadowland Parkway, P.O. Box 774 of Puerto Rico, Inc.
e
Secaucus. New Jersey 07094 Honolulu, Hawaii 96808-0774 Ave, 65 De Infanteria, KM 9.7
Cx Í i 1. < Victoria Industrial Park
Carolina, Puerto Rico 00630
Printed in Japan
84093200 ® M.S
