Technics SA-DA15 Servise Manual

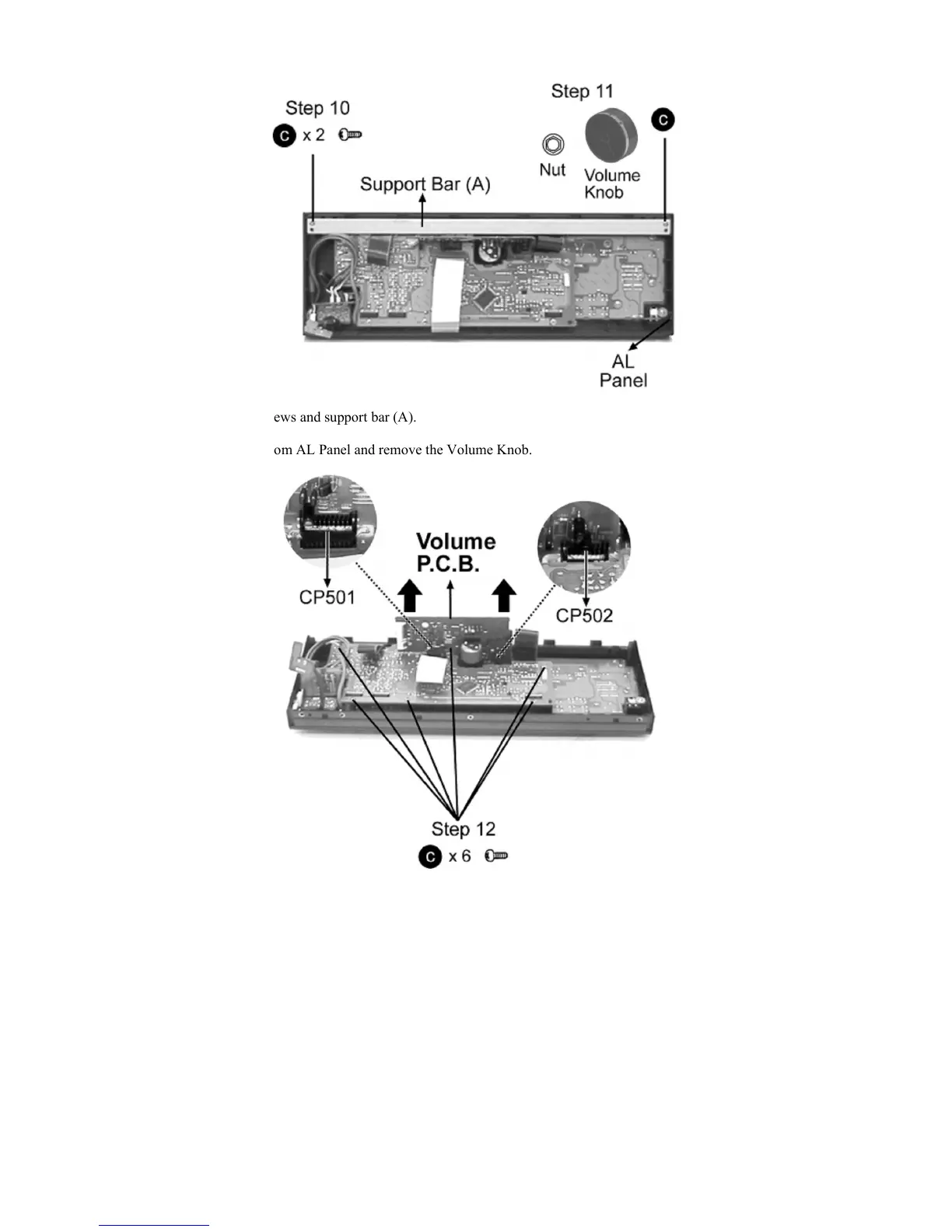

Step 10 Remove all the screws and support bar (A).
Step 11 Unscrew the nut from AL Panel and remove the Volume Knob.
Step 12 Remove ll the screws and pull the Volume P.C.B. up as shown.
Take note of CP501 and CP502.
pagina 5 van 11
29-11-2012file:///H:/Audio%20nieuw/T/Technics/viewing/SGML_VIEW_DATA/NA/SA-DA15...

Technics SA-DA15 Specifications

General

Brand	Technics
Model	SA-DA15
Category	Receiver
Language	English
