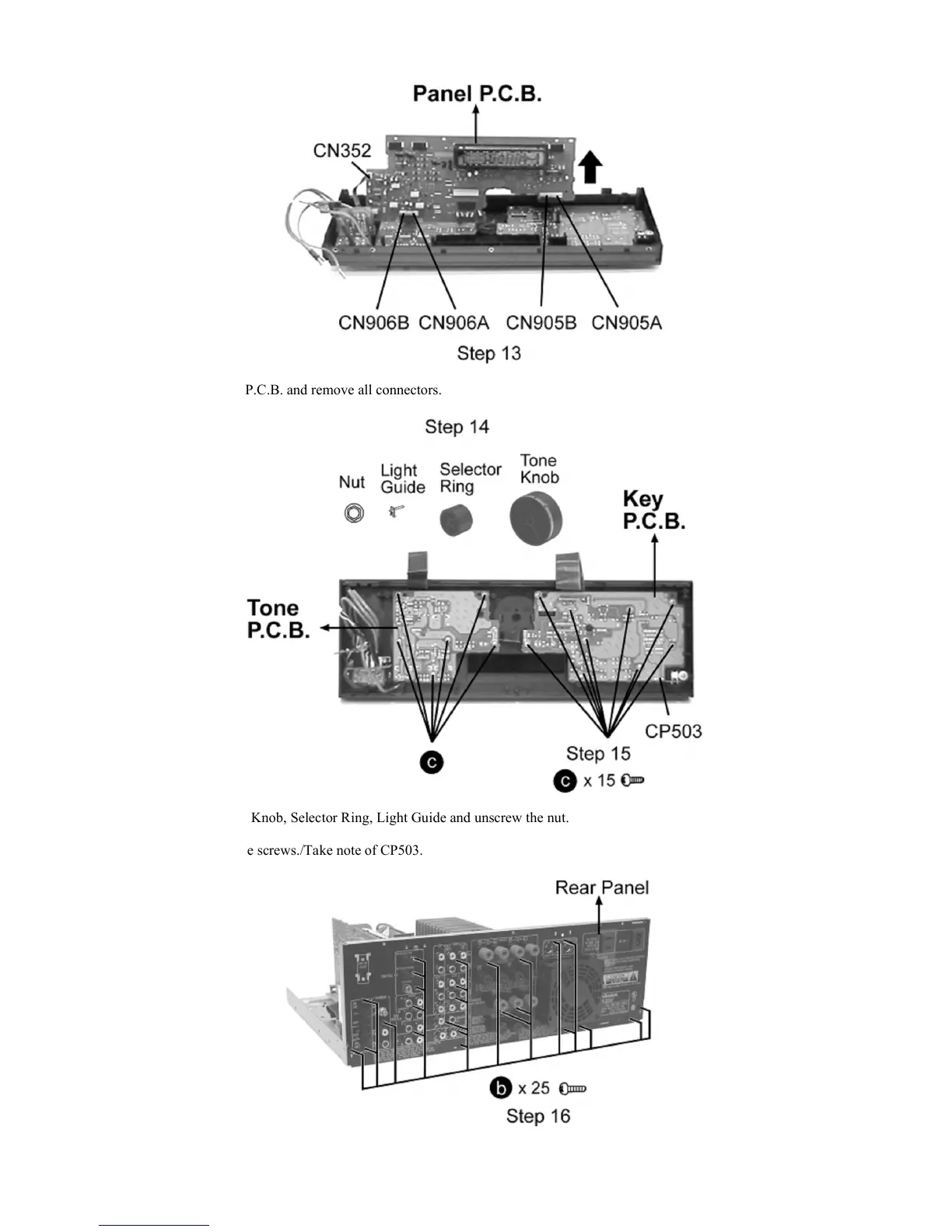

Step 13 Lift up Panel P.C.B. and remove all connectors.
Step 14 Remove Tone Knob, Selector Ring, Light Guide and unscrew the nut.
Step 15 Remove all the screws./Take note of CP503.
pagina 6 van 11
29-11-2012file:///H:/Audio%20nieuw/T/Technics/viewing/SGML_VIEW_DATA/NA/SA-DA15...
