Technics SA-DA15 Servise Manual

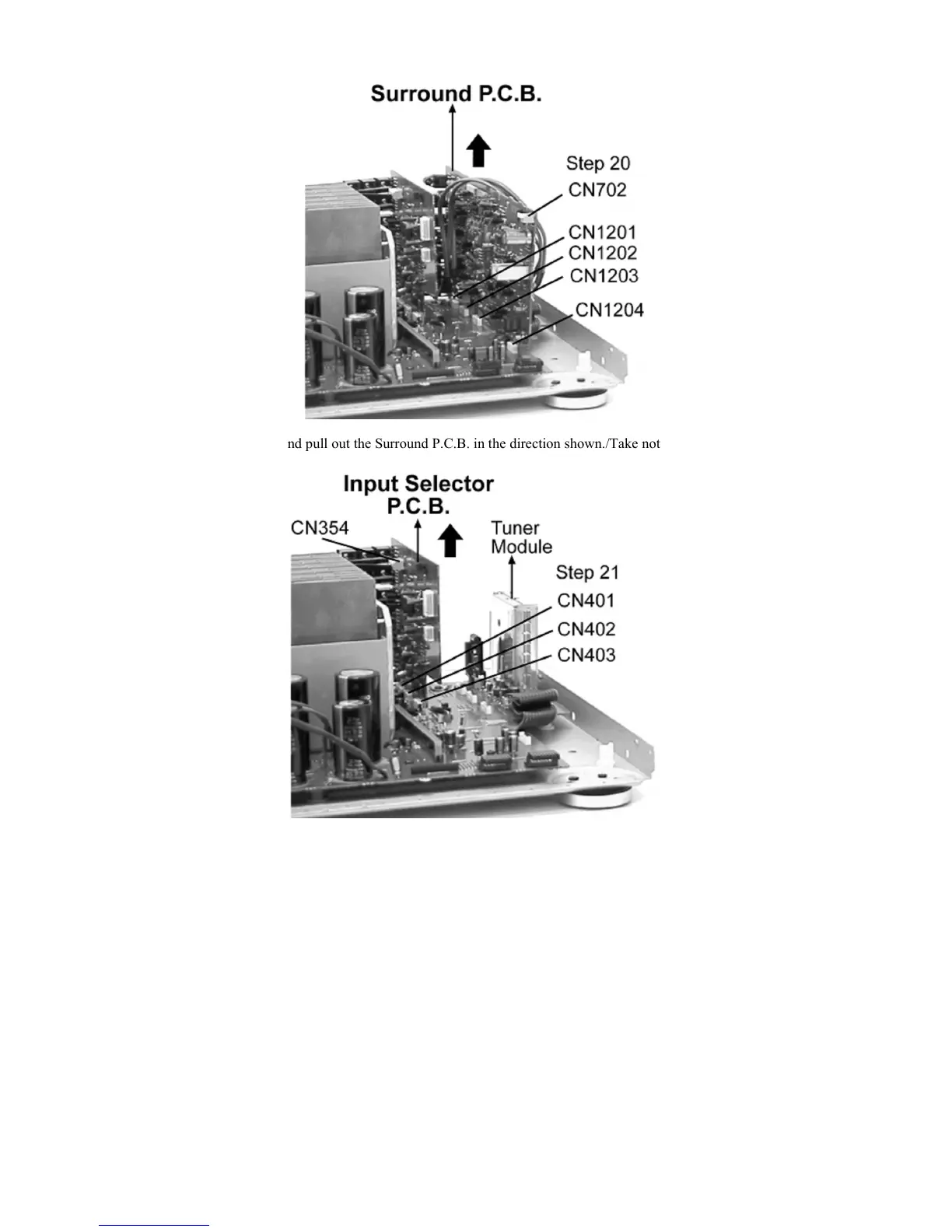

Step 20 Release the CN702 and pull out the Surround P.C.B. in the direction shown./Take note of CN1201 to CN1204.
Step 21 Release the CN354 and pull out the Input Selector P.C.B. in the direction shown./Take note of CN401 to CN403.
pagina 8 van 11
29-11-2012file:///H:/Audio%20nieuw/T/Technics/viewing/SGML_VIEW_DATA/NA/SA-DA15...

Technics SA-DA15 Specifications

General

Brand	Technics
Model	SA-DA15
Category	Receiver
Language	English
