Control reference guide
5
RQT5861
Before use
TUNED STEREO
MONO
LOW IMP
EONPS PTY RT
kHz
MHz
PRO LOGIC
PROGRAM FORMAT
DIGITAL
WAKE
SLEEP
SOUND MODE
STEREO
SURROUND SFC
LCR
LS S LFE RS
AB BI-WIRE
M
RDS
SPEAKERS
A B BI-WIRE
VOLUME
MIN MAX
DIGITAL
TUNING MEMORY
DISPLAY MODE - PTY SEARCH
WAKE
BAND
FM MODE
EON RDS
DSP SOUND MODE
VGCA
ON
VIA TONE
MIN MAX MIN MAX L R
BALANCETREBLEBASS
VCR 2
VCR 3
VIDEO IN L AUDIO IN R
TAPE MONITOR DIGITAL INPUT
PHONES
TIMER
1 3 42 5 6 7 8 9 10 11
13 14 15 18 19 20 2221 23 24 25 26 27 2812
BI-AMP
DVD 6CH INPUT
INPUT SELECTOR
VCR 3
29 30 31 32 33 3534 36
3837 39 40 41 42
MODE
TIME
PTY SELECTOR
16 17
PRESET
SPEAKERS

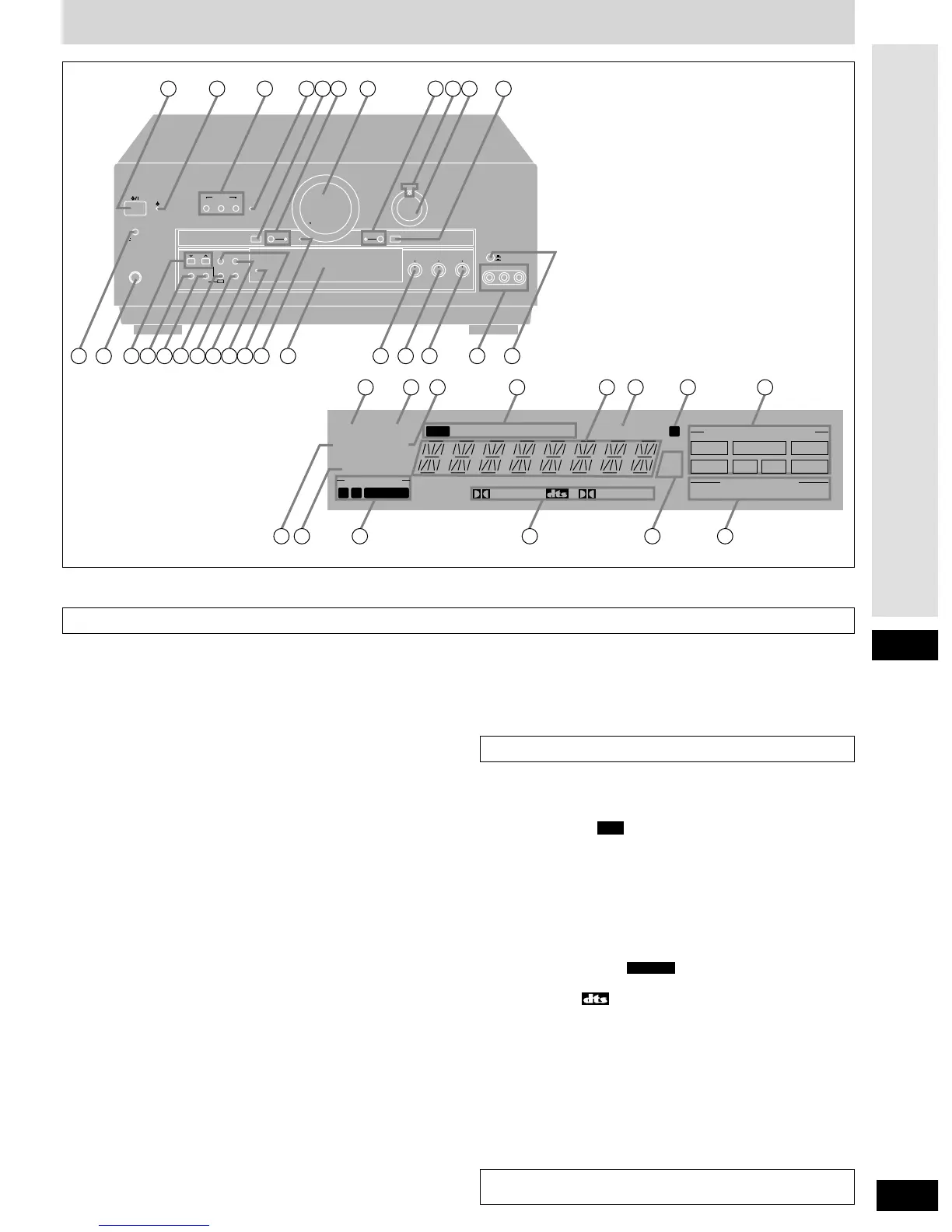

Main unit
Display section
qq
Standby/on switch [8]........................................................(13)
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
ww
Standby indicator [^]
When the unit is connected to the AC mains supply, this
indicator lights up in standby mode and goes out when the unit
is turned on.
ee
Speaker select buttons
[SPEAKERS, A, B, BI-WIRE]..........................................(13, 18)
rr
Bi-amp indicator [BI-AMP]...................................................(19)
tt
DVD 6ch input select button [DVD 6CH INPUT].................(19)
yy
VGCA button/indicator [VGCA, ON] ...................................(20)
uu
Volume control [VOLUME] ..................................................(18)
ii
Tape monitor button/indicator [TAPE MONITOR] .............(26)
oo
Digital input indicator [DIGITAL].........................................(18)
!!00
Input selector [INPUT SELECTOR]...............................(13, 18)
!!11
Digital input select button [DIGITAL INPUT]......................(18)
!!22
Timer button [TIMER, -MODE, –TIME] ................................(36)
!!33
Headphone jack [PHONES] .................................................(26)
!!44
Tuning/PTY select buttons
[TUNING, 2
, 1, PTY SELECTOR]..................................(22, 24)
!!55
Band select button [BAND] .................................................(22)
!!66
FM mode select/EON button [FM MODE, EON] ...........(22, 25)
!!77
RDS button [RDS].................................................................(24)
!!88
DSP sound mode select button
[DSP SOUND MODE]............................................................(18)
!!99
Memory/PTY search button
[MEMORY, PTY SEARCH]..............................................(23, 24)
@@00
Wake indicator [WAKE] .......................................................(36)
@@11
Preset channel/display mode button
[PRESET, DISPLAY MODE] ...........................................(23, 24)
@@22
Via tone indicator [VIA TONE].............................................(20)
@@33
Display section
@@44
Bass control [BASS] ............................................................(21)
@@99
Tuned indicator [TUNED].....................................................(22)
##00
Stereo indicator [STEREO]..................................................(22)
##11
Monaural indicator [MONO].................................................(22)
##22
RDS indicators [ , PS, PTY, RT, EON] .........................(24)
##33
Display
##44
Sleep indicator [SLEEP] ......................................................(36)
##55
Memory indicator [˜] ..........................................................(23)
##66
Program format indicators
[–PROGRAM FORMAT–, L, C, R, LS, S, LFE, RS]..............(18)
##77
Wake indicator [WAKE] .......................................................(36)
##88
Low impedance indicator [LOW IMP].................................(14)
##99
Front speaker indicators
[-SPEAKERS-, Å, ı, ]...........................................(18)
$$00
Signal format indicators
[% DIGITAL, , % PRO LOGIC]..................................(18)
$$11
Frequency unit indicators [kHz, MHz] ................................(22)
$$22
DSP sound mode indicators
[–SOUND MODE–, STEREO, SURROUND, SFC] ...............(18)
BI-WIRE
RDS
Reference pages are given in parentheses.
Refer to “Remote control”, for a guide to the remote control’s
buttons (
a pages 28–35).
@@55
Treble control [TREBLE]......................................................(21)
@@66
Balance control [BALANCE] ...............................................(21)
@@77
VCR 3 terminals [VCR 3]........................................................(6)
@@88
VCR 2/VCR 3 select button [l VCR 2, k VCR 3] ...............(21)
