Connections
8
RQT5861

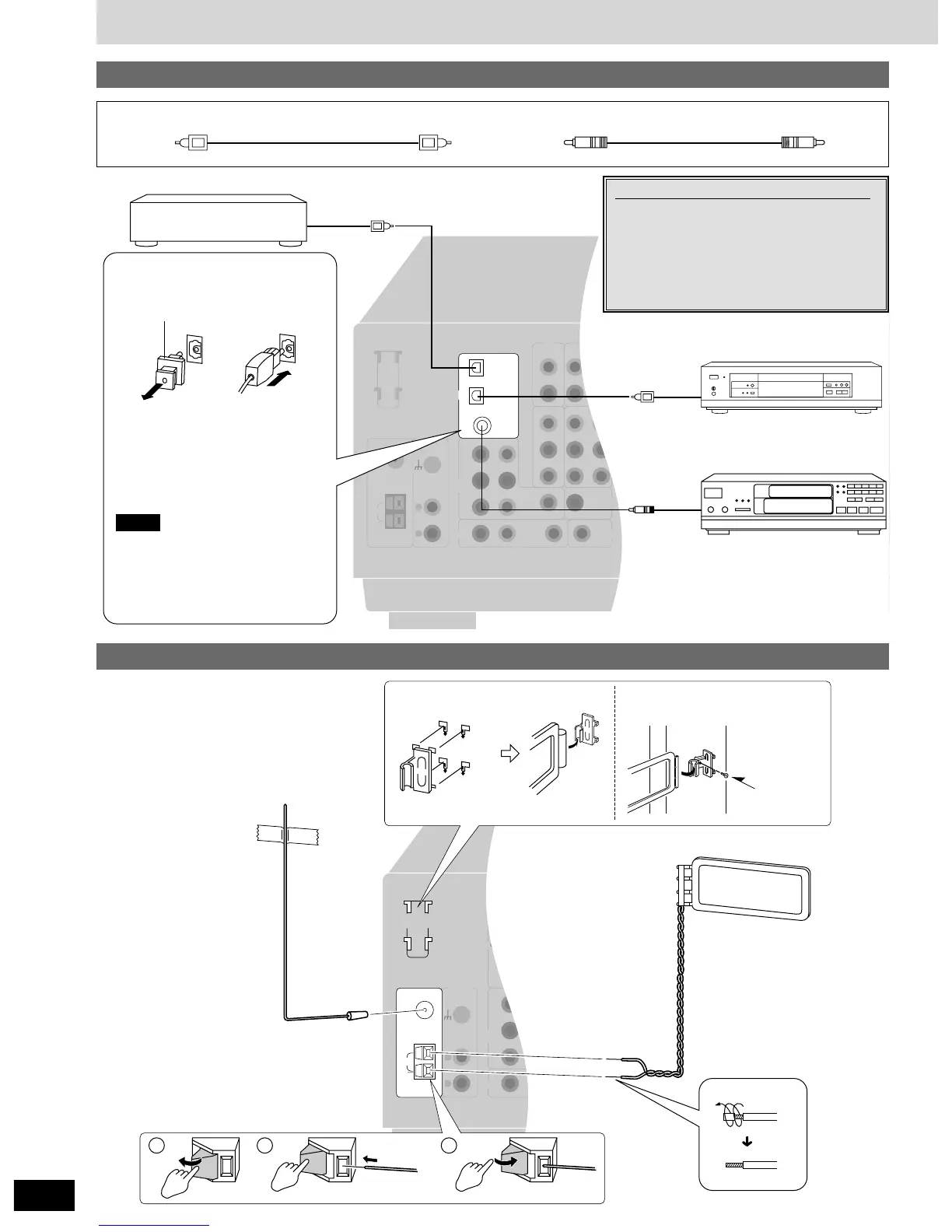

Antenna connections
AM loop antenna
¡Fit the AM loop antenna holder
(included) onto the rear panel of
this unit and then attach the AM
loop antenna to it (facing in the
direction of best reception).
¡Keep the antenna cord away
from tape decks, DVD players,
and other cords.
FM antenna
Fix the other end of the antenna where
reception is best.
When mounting the antenna
to a column, wall or rack
f
Adhesive tape
e FM indoor antenna (included)
h Screw
(included)
g AM loop antenna (included)
Optical fiber cable Coaxial cable
Connecting digital equipment
¡Do not bend the optical fiber cable.
¡If the digital optical connector is not
going to be used, be sure to attach
the dust cap to prevent exposure to
dust.
This unit cannot decode Dolby Digital
RF (radio frequency) signals from a
laser disc player.
Note
a Satellite receiver, etc.
Changing the digital input settings
You can change the input settings for the
digital terminals if necessary (for example,
if your CD player doesn’t have a coaxial
output terminal). Note the equipment you
have connected to the terminals, then
change the settings (
\
pages 12, 13).
Optical fiber cable connection
d Dust cap
c CD player
b DVD player
