Technics SA-EX100 Operating Instructions

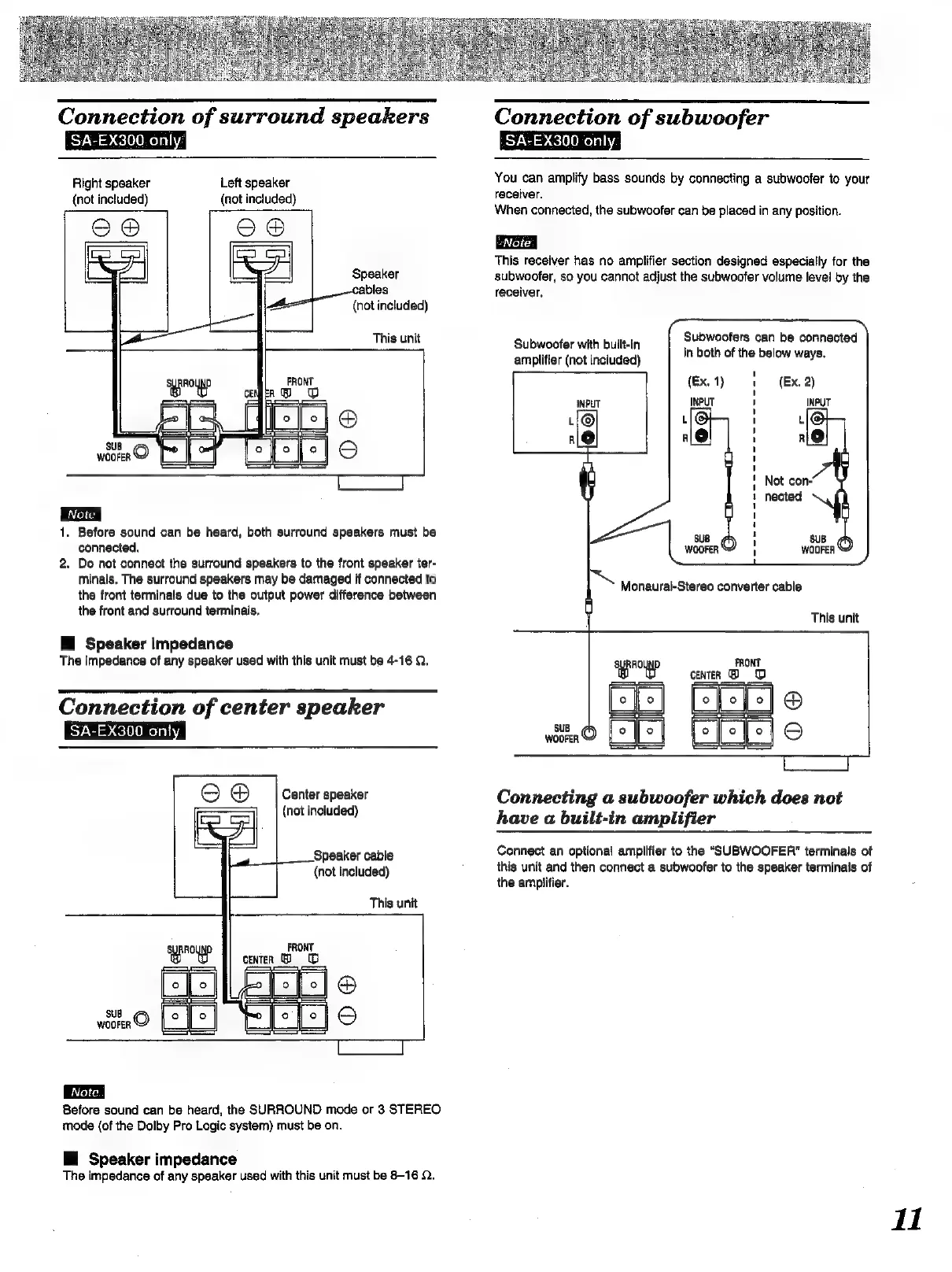

Connection of surround speakers
SA-EX300. onl
Right speaker
{not included)
68
Left speaker
(not included)
O8
es
Speaker
cables
(not included)
This unit
Sgro
SuB
WOOFER ©
1. Before sound can be heard, both surround speakers must be
connected.
2. Do not connect the surround speakers to the front speaker ter-
minals, The surround speakers may be damaged if connected to
the front terminals due to the output power difference between
the front and surround terminais.
Ml Speaker impedance
The impedance of any speaker used with this unit must be 4-16 Q,
Connection of center speaker
SA-EX300 ont
Center speaker
(not included)
Speaker cable
{not included)
SUB
WOOFER
Before sound can be heard, the SURROUND mode or 3 STEREO
mode (of the Dolby Pro Logic system) must be on.
@ Speaker impedance
The impedance of any speaker used with this unit must be 8-16 Q.
Aone
Connection of subwoofer
SA-EX300 onl
You can amplity bass sounds by connecting a subwoofer to your
receiver.
When connected, the subwoofer can be placed in any position.
This receiver has no amplifier section designed especially for the
subwoofer, so you cannot adjust the subwoofer volume lievel by the
receiver,
Subwoofers can be connected
Subwoorer with: Dull-in in both of the below ways.
amplifier (not included)
(Ex, 1)
INPUT
(Ex. 2)
'
'
'
'
t
'
'
'
'
'
'
'
'
1
1
'
‘
1
’
’
Monaural-Stereo converter cable
This unit
ee? CENTER gO
‘J GEE]
I) EEEIe
ie
Connecting a subwoofer which does not
have a built-in amplifier
SUB
WOOFER
Connect an optional amplifier to the “SUBWOOFER” terminals of
this unit and then connect a subwoofer to the speaker terminals of
the amplifier.
11
