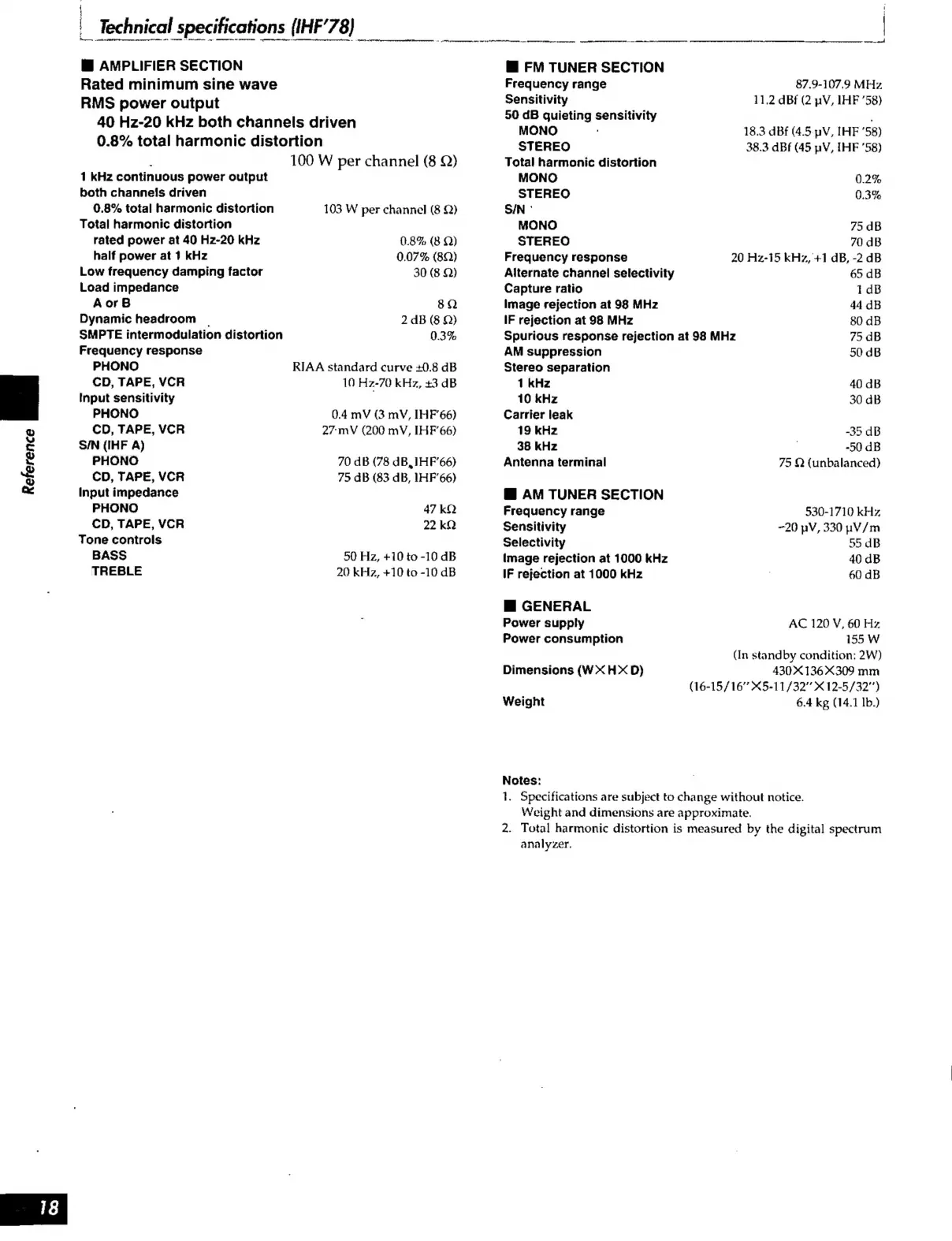

Technics SA-EX110 Operating Instructions

Reference |
A ei
@ AMPLIFIER SECTION
Rated minimum sine wave
RMS power output
|
Technical
specifications
(IHF
78)
_
40 Hz-20 kHz both channels driven
0.8% total harmonic distortion
1 kHz continuous power output
both channels driven
0.8% total harmonic distortion
Total harmonic distortion
rated power at 40 Hz-20 kHz
half power at 1 kHz
Low frequency damping factor
Load impedance
AorB
Dynamic headroom .
SMPTE intermodulation distortion
Frequency response
PHONO
CD, TAPE, VCR
Input sensitivity
PHONO
CD, TAPE, VCR
S/N (IHF A)
PHONO
CD, TAPE, VCR
Input impedance
PHONO
CD, TAPE, VCR
Tone controls
BASS
TREBLE
100 W per channel (8 Q)
103 W per channel (8 £2)
0.8% (8 Q)
0.07% (892)
30 (8 €)
840
2 dB (80)
0.3%
RIAA standard curve +0.8 dB
10 Hz-70 kHz, +3 dB
0.4 mV (3 mV, IHF'66)
27 mV (200 mV, IHF'66)
70 dB (78 dB, IHF'66)
75 dB (83 dB, IHF'66)
47 kQ
22 kQ
50 Hz, +10 to -10 dB
20 kHz, +10 to -10 dB
c^ Terme 290 wa mr nint A WM RT D E ee e n nem |
ll FM TUNER SECTION
Frequency range
al
87.9-107.9 MHz
Sensitivity 11.2 dBf (2 pV, IHF '58)
50 dB quieting sensitivity
MONO 18.3 dBf (4.5-pV, IHF '58)
STEREO 38.3 dBf (45 pV, IHF '58)
Total harmonic distortion
MONO 0.2%
STEREO 0.3%
S/N `
MONO 75 dB
STEREO 70 dB
Frequency response
20 Hz-15 kHz, +1 dB, -2 dB
Aiternate channel selectivity 65 dB
Capture ratio 1 dB
Image rejection at 98 MHz 44 dB
IF rejection at 98 MHz 80 dB
Spurious response rejection at 98 MHz 75 dB
AM suppression 50 dB
Stereo separation
1 kHz 40 dB
10 kHz 30 dB
Carrier leak
19 kHz -35 dB
38 kHz -50 dB
Antenna terminal 75 Q (unbalanced)
E AM TUNER SECTION
Frequency range
530-1710 kHz
Sensitivity 720 pV, 330 uV/m
Selectivity 55 dB
Image rejection at 1000 kHz 40 dB
IF rejection at 1000 kHz 60 dB
ll GENERAL
Power supply
Power consumption
AC 120 V, 60 Hz
155 W
(In standby condition: 2W)
Dimensions (WX HX D)
430X 136 X309 mm
(16-15/16” X5-11/32" X12-5/32"')
Weight
Notes:
6.4 kg (14.1 Ib.)
1. Specifications are subject to change without notice.
Weight and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.

Technics SA-EX110 Specifications

General

Brand	Technics
Model	SA-EX110
Category	Stereo Receiver
Language	English
