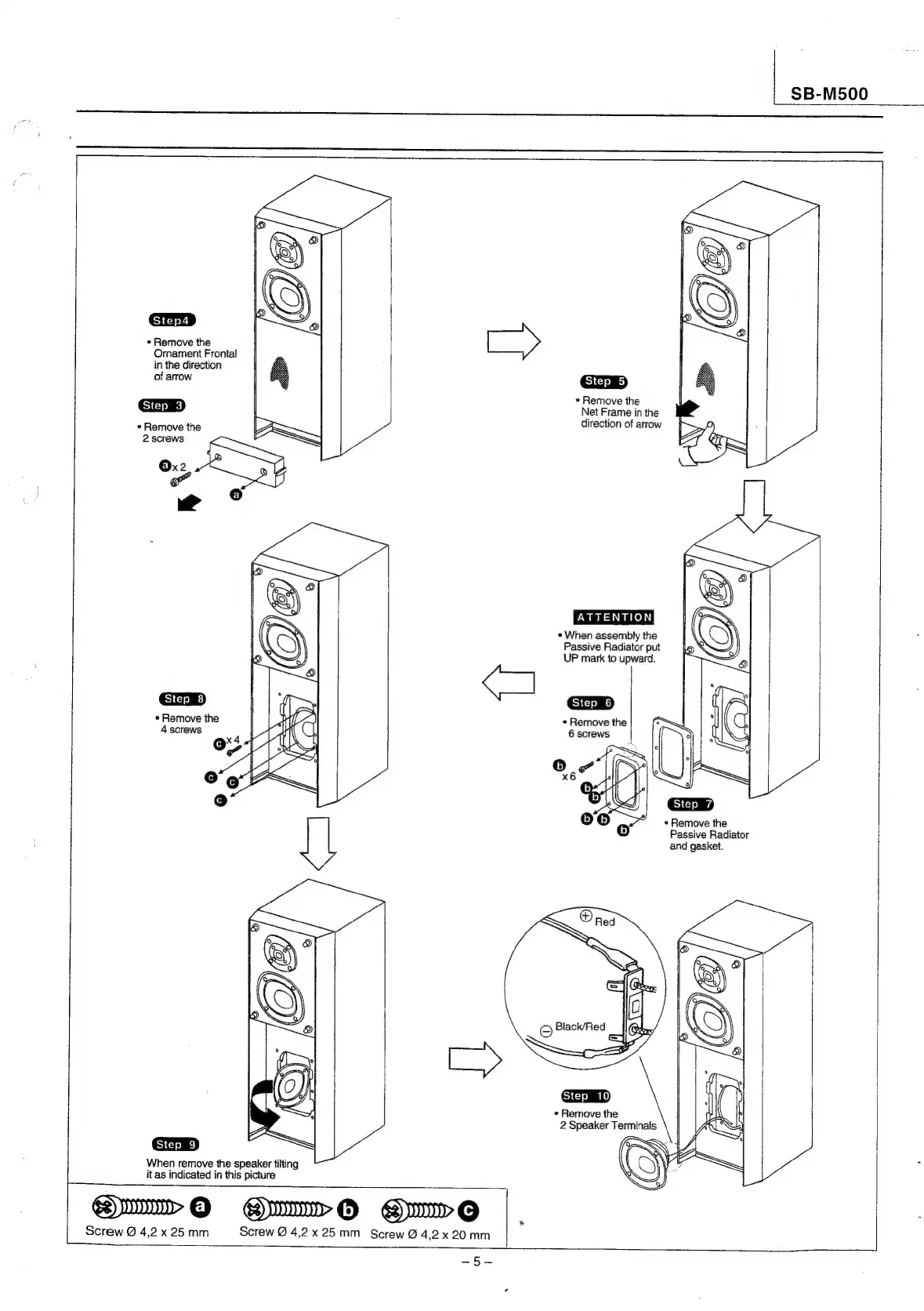

Remove
the
Omament
Frontal
in
the
direction
of
arrow
*
Remove
the
2
screws
ex
2
AS
*
Remove
the
4
screws
When
remove
the
speaker
tilting
it
as
indicated
in
this
*
Remove
the
Sm»
oe@
Oomroe
o»mwe
Screw
@
4,2
x
25
mm
Screw
0
4,2
x
25mm
Screw
@
4,2
x
20
mm
*
Remove
the
Net
Frame
in
the
direction
of
arrow
ATTENTION
¢
When
assembly
the
Passive
Radiator
put
UP
mark
to
upward.
6
screws
Step
10
¢
Remove
the
2
Speaker
Terminals
*
Remove
the
Passive
Radiator
and
gasket.
