SB-M500

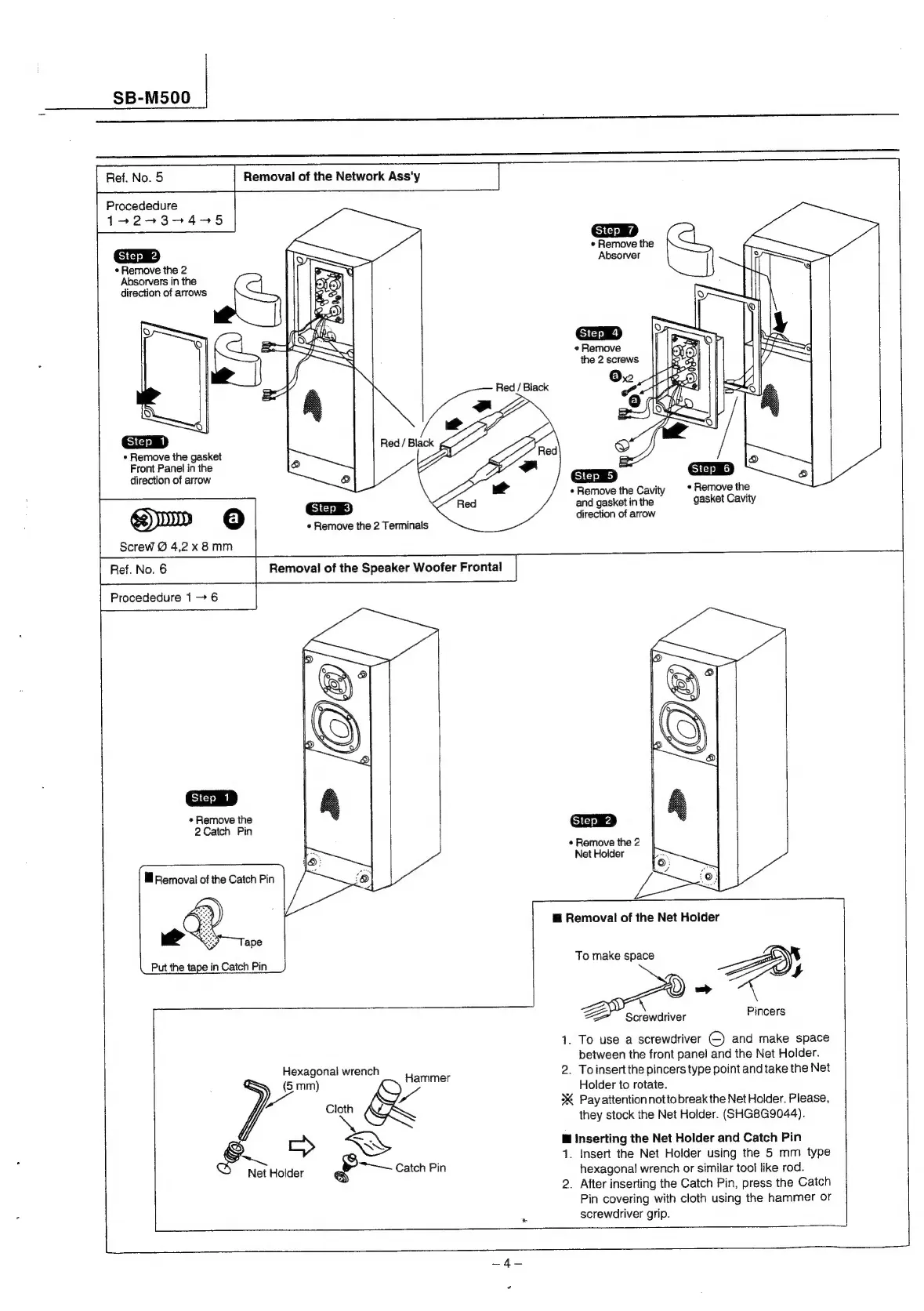

Ref. No. 5
Procededure
172737445
«Remove the 2
Absorvers in the
direction of arrows
« Remove the gasket
Front Panel in the
direction of arrow
up @O
Screw © 4,2 x 8mm
Procededure 1 — 6
* Remove the
2 Catch Pin
Put the tape
in Catch Pin
Fs
Net Holder
Removal of the Network Ass'y
« Remove the 2 Terminals
Hexagonal wrench
(5 mm) ee
Fr &
>
™——~ Catch Pin
Siep 7
* Remove the
Absorver
y
«Remove
the 2 screws
Step 5
¢ Remove the Cavity
and gasket in the
direction of arrow
« Remove the
gasket Cavity
* Remove the 2
Net Holder
@ Removal of the Net Holder
To make space
Pincers
Screwdriver
1. To use a screwdriver ©) and make space
between the front panel and the Net Holder.
2. Toinsertthe pincers type point and take the Net
Holder to rotate.
3X Pay attention notto break the Net Holder. Please,
they stock the Net Holder. (SHG8G9044).
@ inserting the Net Holder and Catch Pin
1. Insert the Net Holder using the 5 mm type
hexagonal wrench or similar tool like rod.
2. After inserting the Catch Pin, press the Catch
Pin covering with cloth using the hammer or
screwdriver grip.
a4
