LW/MW loop antenna (included)

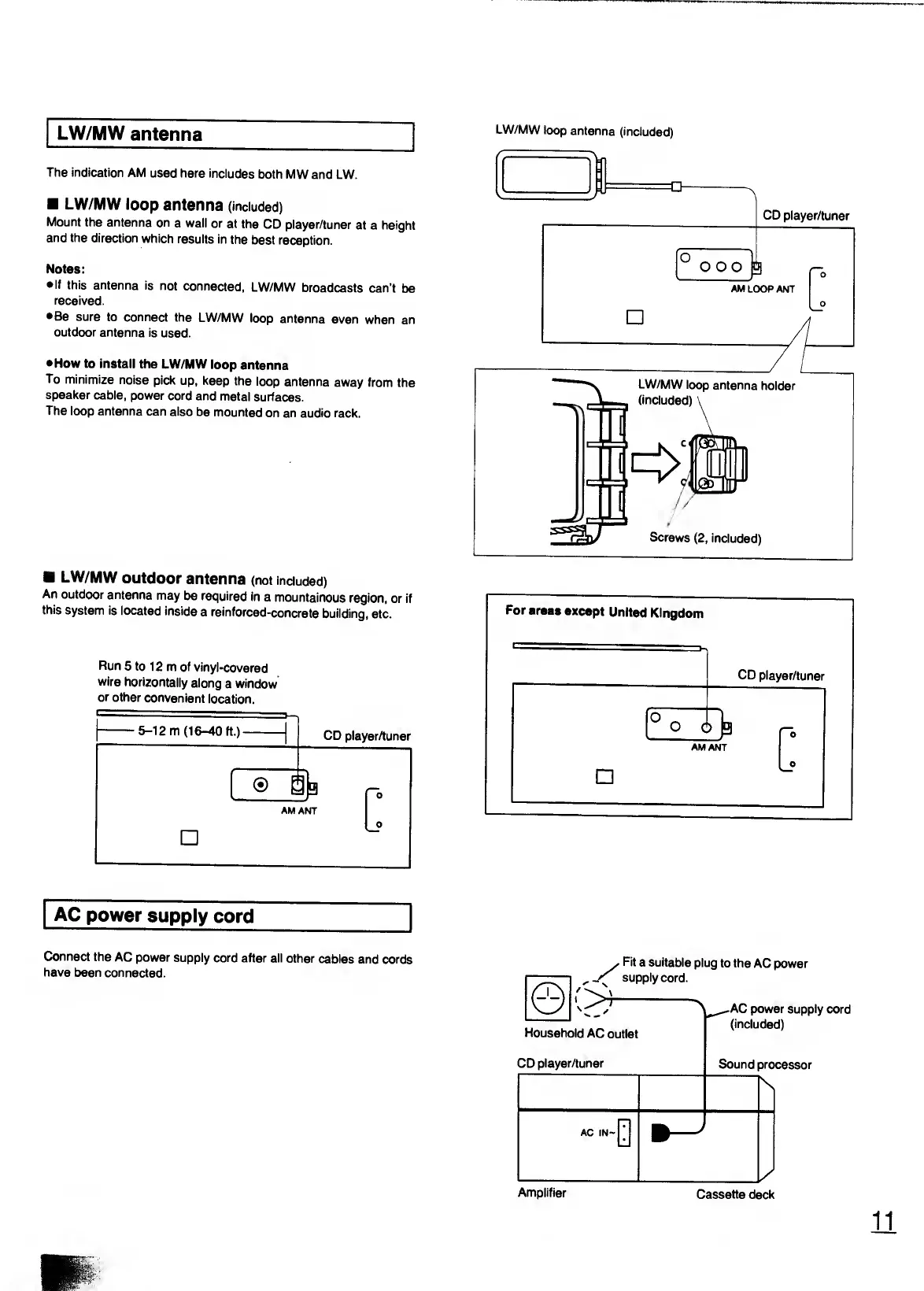

LW/MW antenna
The indication AM used here includes both MW and LW.
■ LW/MW loop antenna (included)
Mount the antenna on a wall or at the CD player/tuner at a height
and the direction which results in the best reception.
Notes:
• If this antenna is not connected, LW/MW broadcasts can't be
received.
•Be sure to connect the LW/MW loop antenna even when an
outdoor antenna is used.
•How to install the LW/MW loop antenna
To minimize noise pick up, keep the loop antenna away from the
speaker cable, power cord and metal surfaces.
The loop antenna can also be mounted on an audio rack.
■ LW/MW outdoor antenna (not included)
An outdoor antenna may be required in a mountainous region, or if
this system is located inside a reinforced-concrete building, etc.
Run 5 to 12 m of vinyl-covered
wire horizontally along a window
or other convenient location.
-5-12 m (16-40 ft.)-
CD player/tuner
<
□
ANT
AC power supply cord
Connect the AC power supply cord after all other cables and cords
have been connected.
^ Fit a suitable plug to the AC power
supply cord.
Household AC outlet
CD player/tuner
AC
Amplifier
^AC power supply cord
(included)
Sound processor
Cassette deck
