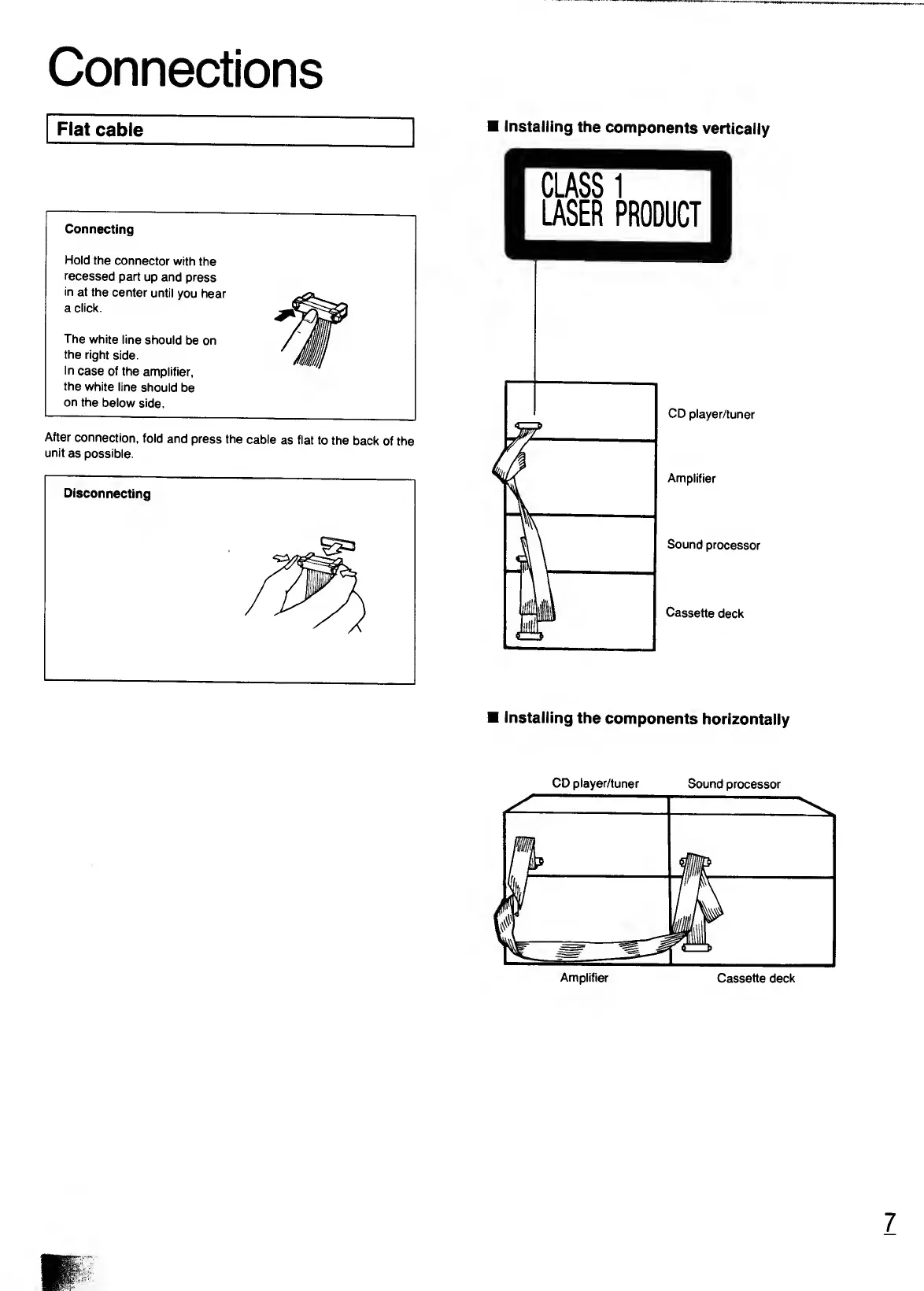

Connections
Flat cable
Connecting
Hold the connector with the
recessed part up and press
in at the center until you hear
a click.
The white line should be on
the right side.
In case of the amplifier,
the white line should be
on the below side.
After connection, fold and press the cable as flat to the back of the
unit as possible.
■ Installing the components vertically
CD player/tuner
Amplifier
Sound processor
Cassette deck
■ Installing the components horizontally
CD player/tuner Sound processor
Amplifier
Cassette deck
