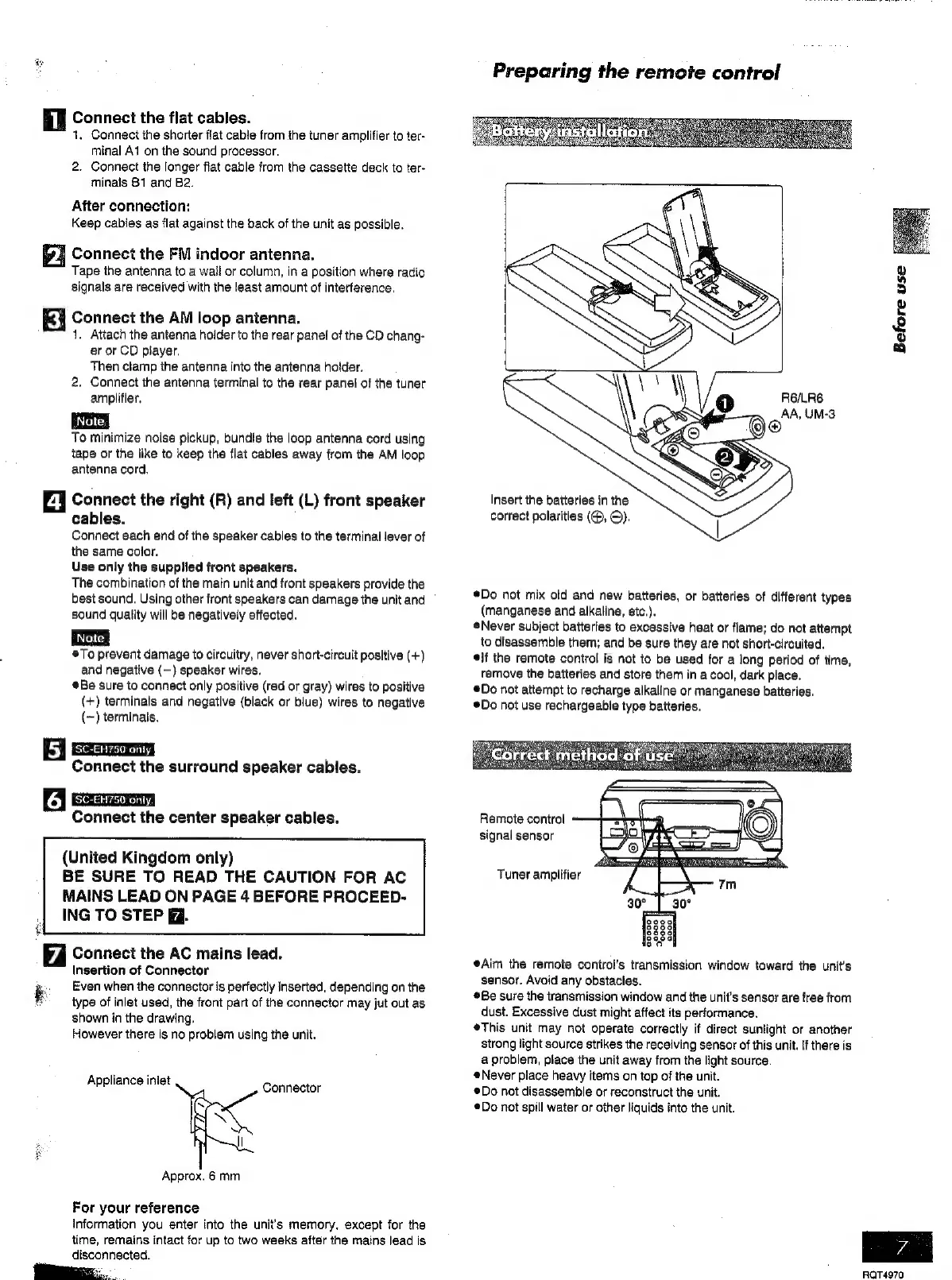

Bq Connect the flat cables.
1. Connect the shorter flat cable from the tuner amplifier to ter-
minal A1 on the sound processor,
2. Connect the longer flat cable from the cassette deck to ter-
minals B1 and B2.
After connection:
Keep cables as flat against the back of the unit as possible.
Connect the FM indoor antenna.
Tape the antenna to a wail or column, in a position where radio
signals are received with the least amount of interference.
3} Connect the AM loop antenna.
1. Attach the antenna holder to the rear panel of the CD chang-
er or CD player.
Then ctamp the antenna into the antenna holder.
2, Connect the antenna terminal to the rear panel of the tuner
amplifier,
To minimize noise pickup, bundle the loop antenna cord using
tape or the like to keep the flat cables away from the AM loop
antenna cord,
4 Connect the right (R) and left (L) front speaker
cables.
Connect each end of the speaker cables to the terminal lever of
the same color.
Use only the supplied front speakers.
The combination of the main unit and front speakers provide the
best sound. Using other front speakers can damage the unit and
sound quatity will be negatively effected.
®To prevent damage to circuitry, never short-circuit positive (+)
and negative (—) speaker wires,
@Be sure to connect only positive (red or gray) wires to positive
(+) terminals and negative (black or blue) wires to negative
(—) terminals.
5
Connect the surround speaker cables.
Connect the center speaker cables.
(United Kingdom only)
BE SURE TO READ THE CAUTION FOR AC
MAINS LEAD ON PAGE 4 BEFORE PROCEED-
ING TO STEP
¥4 Connect the AC mains lead.
Insertion of Connector
k Even when the connector is perfectly inserted, depending on the
* type of inlet used, the front part of the connector may jut out as
shown in the drawing,
However there is no problem using the unit.
Appliance inlet Connector
“N
~
ds II
Approx. 6 mm
For your reference
Information you enter into the unit's memory, except for the
time, remains intact for up to two weeks after the mains lead is
disconnected.
Preparing the remote control
g
3
M4
&
o
r
R6/LR6
AA, UM-3
®
Insert the batteries in the
correct polarities (®, ©).
©Do
not
mix
old
and
new
batteries,
or
batteries
of
different
types
(manganese
and
alkaline,
etc.).
Never subject batteries to excessive heat or flame; do not attempt
to disassemble them; and be sure they are not short-circuited.
jf
the
remote
control
is
not
to
be
used
for
a
long
period
of
time,
remove
the
batteries
and
store
them
in
a
cool,
dark
place.
®Do not attempt to recharge alkaline or manganese batteries.
©Do not use rechargeable type batteries.
Remote control
signal sensor
Tuner amplifier
eAim the remote control's transmission window toward the unit's
sensor. Avoid any obstacles.
®Be sure the transmission window and the unit's sensor are free from
dust. Excessive dust might affect its performance.
eThis unit may not operate correctly if direct suntight or another
strong light source strikes the receiving sensor of this unit. If there is
a problem, piace the unit away from the light source.
Never place heavy items on top of the unit.
Do not disassemble or reconstruct the unit.
©Do not spill water or other liquids into the unit.
RQT4970
