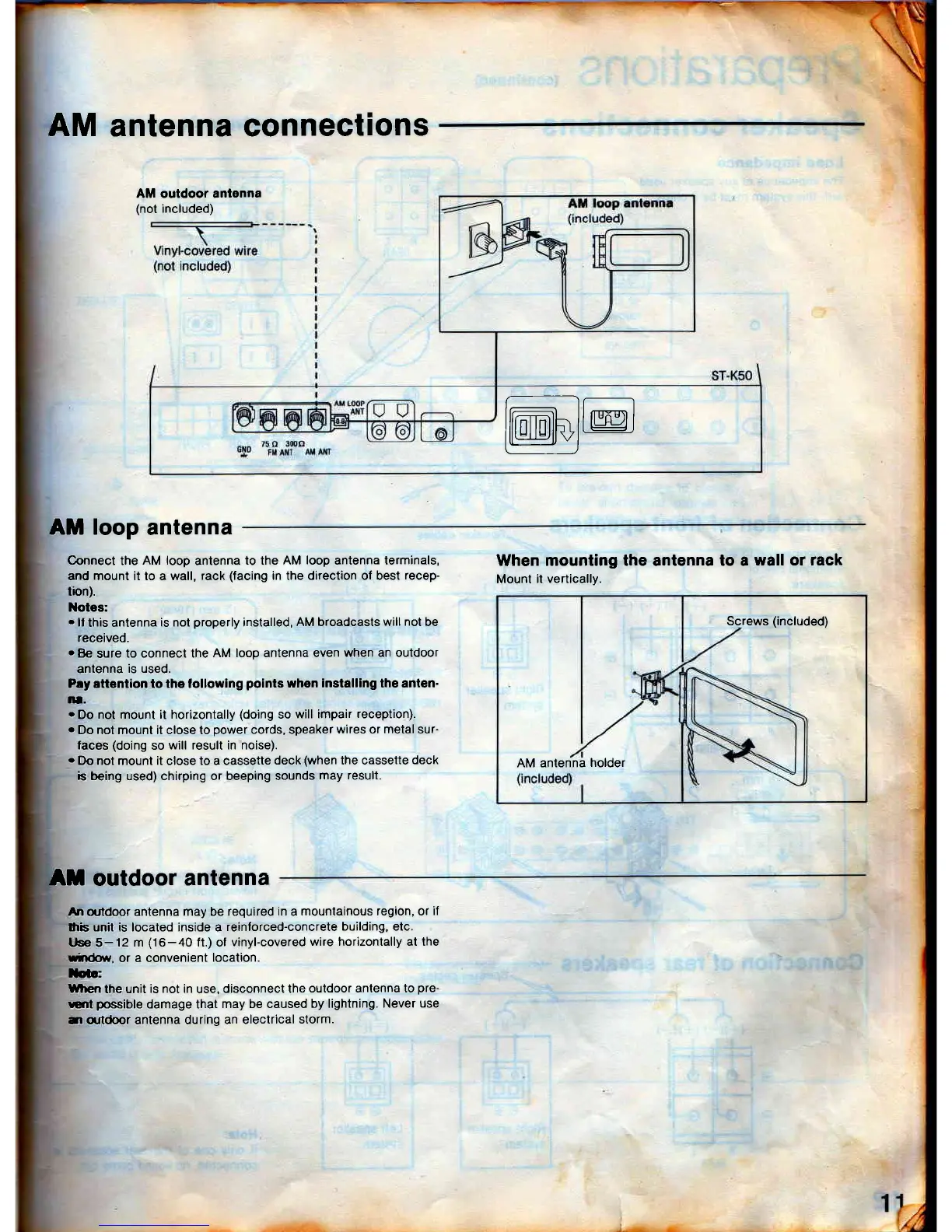

Technics SD-s2300 - AM Antenna Connections; AM Loop Antenna; AM Outdoor Antenna

AM
antenna connections
AM outdoor antenna
(not
included)
r__-l
ItmhllL@i
t.--l
AM loop
antenna
Connect
the
AM loop
antenna
to the AM
loop
antenna terminals,
and mount it to a wall,
rack
(facing
in the direction of best
recep-
tion).
Notes:
.
ll
this antenna
is not
properly
installed,
AM broadcasts will
not
be
received.
o
Be
sure
to connect the
AM loop antenna even
when an outdoor
anlenna
is used.
P.y attention to the lollowing
points
when
installing
lhe anten-
lrl-
.
Do
not mount il horizontally
(doing
so
will impair
reception).
o
Do not mount it close to
power
cords, speaker
wires or
metal
sur-
faces
(doing
so
will result in noise).
o
Do nol mount it close to a cassette
deck
(when
the cassette
deck
b
being used) chirping or beeping sounds
may result.
When
mounting the antenna to
Mount
it vertically.
a
wall or rack
AM antenna
holder
Screws
(included)
At outdoor antenna
An
outdoor antenna
may
be
required
in
a
mountainous region, or
if
$'rs unit is located inside a
reinlorced-concrete
building, etc.
t se 5-12
m
(16-40
ft.) ol
vinyl-covered
wire horizontally at the
rirdot,Y,
or a convenient
location.
Ioic:
When
the unit
is not in
use,
disconnect the
outdoor antenna to
pre-
crt
possible
damage that
may be caused
by lightning. Never
use
il
q.rtdoor
antenna during
an electrical
slorm.
