SH-8045

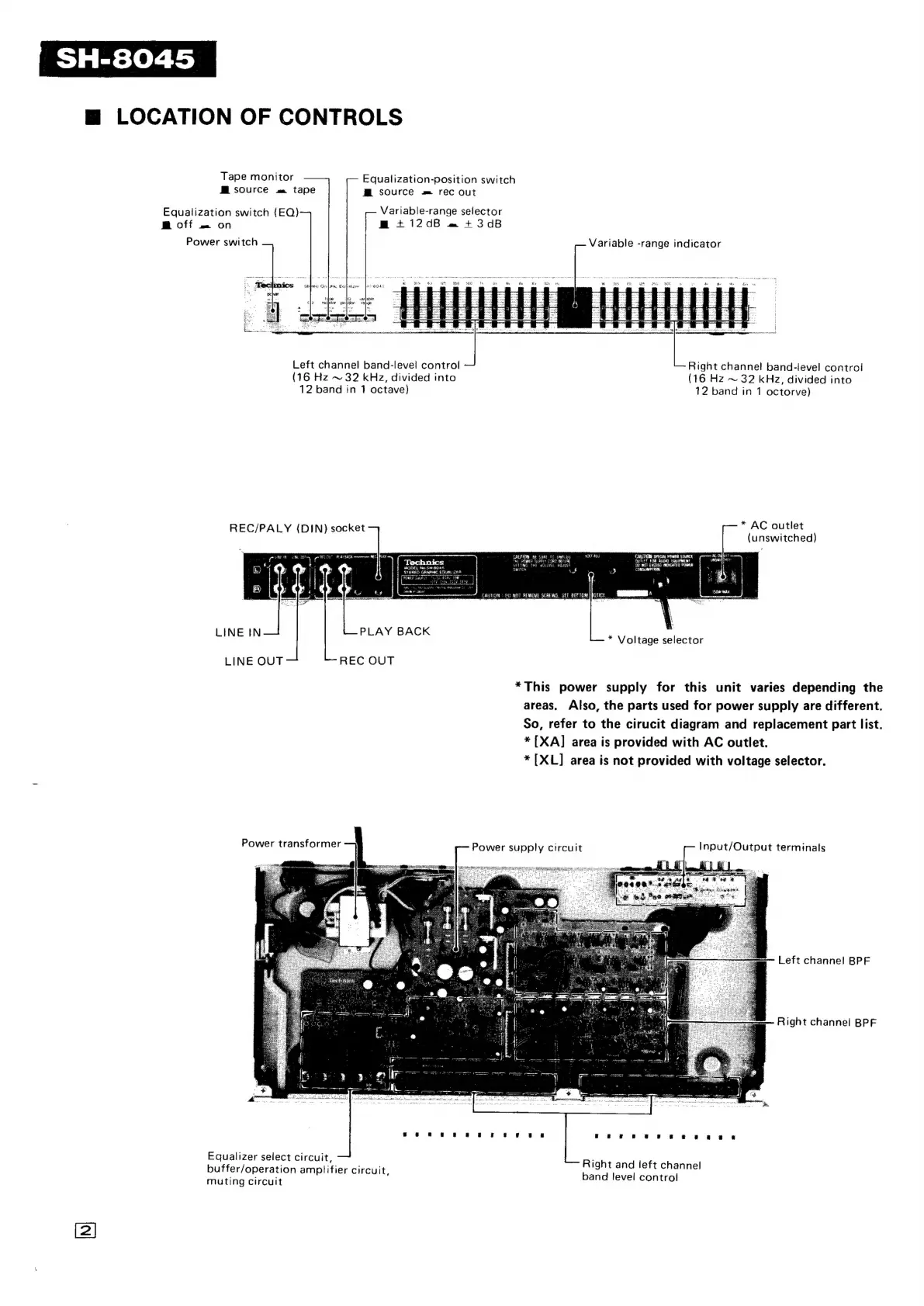

gm LOCATION OF CONTROLS
Equalization-position switch
M source m rec out
Tape monitor
Hi source mm tape
Variable-range selector
Equalization switch {EQ)
B+12dB m= +3dB
BB off = on
Power switch Variable -range indicator
Left channel band-leve! control Right channel band-level control
(16 Hz ~ 32 kHz, divided into (16 Hz ~ 32 kHz, divided into
12 band in 1 octave) 12 band in 1 octorve)
REC/PALY (DIN) socket * AC outlet
(unswitched)
3 4
LINE
IN
PLAY
BAC
*
Voltage
selector
LINE OUT REC OUT
*This power supply for this unit varies depending the
areas. Also, the parts used for power supply are different.
So, refer to the cirucit diagram and replacement part list.
* [XA] area is provided with AC outlet.
* [XL] area is not provided with voltage selector.
Power
transformer
Power
supply
circuit
Input/Output
terminals
Left channel BPF
Right channel BPF
ss
08
@
FF
8
©
f
FF
Fe
7
#
££
©
8#
Fe
&
hele
Ce
Equalizer
select
circuit
.
;
im
Righ
buffer/operation
amplifier
circuit,
Shite
en
muting circuit
