Technics SH-8045 E

m REPLACEMENT PARTS LIST......Cabinet, Chassis and Packing Parts
Notes:
1. Part numbers are indicated on most mechanical parts. Please use
this part number for parts orders.
2. Important safety notice:
Components indentified by A make have special characteristics
importanf for safety. When replacing any of these components,
use only manufacturer’s specified parts.
3. Bracketed indications Ref. No. columns specify the area.
Parts without these indications can be used for all areas.
Ref. No.
1
1
O | SGWH8045N
[KJ | SGWH8045KN
Front Panel Ass’y
(Silver)
Front Panel Ass’y
(Black)
CABINET and CHASSIS PARTS
(1)
(1)
2 SBC337-1 Button, Power Source (1)
3 SUS159 Spring, Push Switch (4)
4 SBC413 Button, Push Switch (4)
5 SUBK7 Coupling Rod (4)
Push Switch
6 SDUK4 Tube, Lamp (1)
, SBCK32 Knob, Band Level (24)
Control
8 SGXK43 Ornament, Slide (2)
Volume
9 SUBK6 Coupling Rod, (1)
Power Switch
10 O |SKCH8045N Cabinet (Silver) (1)
10 (KJ |SKCH8045KN [Cabinet (Black) (1)
11 [XA] SJS9221—1 Socket, AC Outlet (1)
only
12 AS |SJA88 AC Cord (1)
12[EK]A |RJA45YA AC Cord (1)
12 [XL] AS|QFC1208M AC Cord (1)
13 SHR127 Bushing, AC Cord (1)
13 [EK] SHR129 Bushing, AC Cord (1)
only
14 SJF3431—4N Terminal, Input & (2)
Output
15 SJS6513 Terminal, REC/PLAY (1)
(DIN)
16 SGPKH8045E ——s [Bottom Board, W/Feet (1)
16 [XA] SGPKH8045x ~=—- {Bottom Board, W/Feet (1)
only
16 [XL] SGPKH8045L_~—s [Bottom Board, W/Feet (1)
only
17 SKL245—2 Foot, Set (4)
18 SJT783 Terminal, Socket (3)
19 SJS5331 Socket (3 Pin) (1)
20 SJT3319 Connector (3 Pin) (1)
21 SJT783 Terminal, Socket (30)
22 SJS5047 Socket (15 Pin) (2)
23 SJT3027 Connector (15 Pin) (2)
24 SHR301 Clamper, Lead Wire (5)
25 [E,XA] |jSAMA65 over, Capacitor (1)
25 [EK,XL, ISMXK26 over, Capacitor (1)
EB. EF]
26 Except |SMN1635 Bracket, Voltage (1)
for [XL] Selector Switch
27 Except |SUV473 Cover, Voltage (1)
for [XL] Selector Switch
28 |SJT347 |Fuse Clip (6)
SCREWS
N1 O 5 |XTS3+68 Tapping, ®3x6 (6)
(Silver)
Ni [kj | XTS3+6BFZ Tapping, 3x6 (6)
(Black)
N2 S| XSN3+6S 3x6 (4)
N3 S| XSN2+4BV B2x4 (12)
N4 S$; XTB3+10BFZ Tapping, @ 3x 10 (9)
N5 XTBS3+8BFZ1 Tapping, 3x8 (2)
N6 $|XTB3+10BFN |Tapping, 3x 10 (3)
4. The ‘‘S'' mark is service standard parts and may differ from
production parts.
5. [K) -marked parts are used for black type only, while O-marked
parts are for silver type only.
6. Parts other than [{K} and Omarked are used for both black and
silver types.
7. The parenthesized numbers in the columns of description
stand for the quantity per set.
Black type model No. : SH-8045 (K)
Description
N7. O S|XTB4+8BFN
N7 [kK] S| XT84+8BFZ
Tapping, ® 4x8
(Silver)
Tapping, 4x8
(Black)
Tapping, ® 3x 16
Tapping, 43x 10
N8 S| XTB3+16BFZ
NQ S| XTNB+10B
WASHERS
N11 S| XWA3B
jN12 S| XWG3
PACKING PARTS
Spring, @3
Plain, @3
SPGK9O
SPGK89
SGK1413
SPSK38
SPSK39
SPP697
SPP647
te
Carton Box
Carton Box
Label, (Black type
only)
Pad, Right
Pad, Left
Polyethylene Bag,
(Silver)
Polyethylene Bag,
(Black)
ACCESSORIES
A1[E,EK, |SQFK10011
EF,EB]
Al [XA, SQFK10018
SJP2129=5
SJP5213—1
7
Instructions Book
Instructions Book
Pin Cord
Plug, Power Source
(4)
(4)
(2)
(2)
(4)
(2)
Accessories
Areas
* [E] is available in Switzerland and Scandinavia.
* [EK] is available in United Kingdom.
* [XA] is available in Southeast Asia, Oceania, Africa,
Middle Near East and Central South America.
* [XL] is available in Australia.
* [EF] is available in France..
* [EB] is available in Belgium.

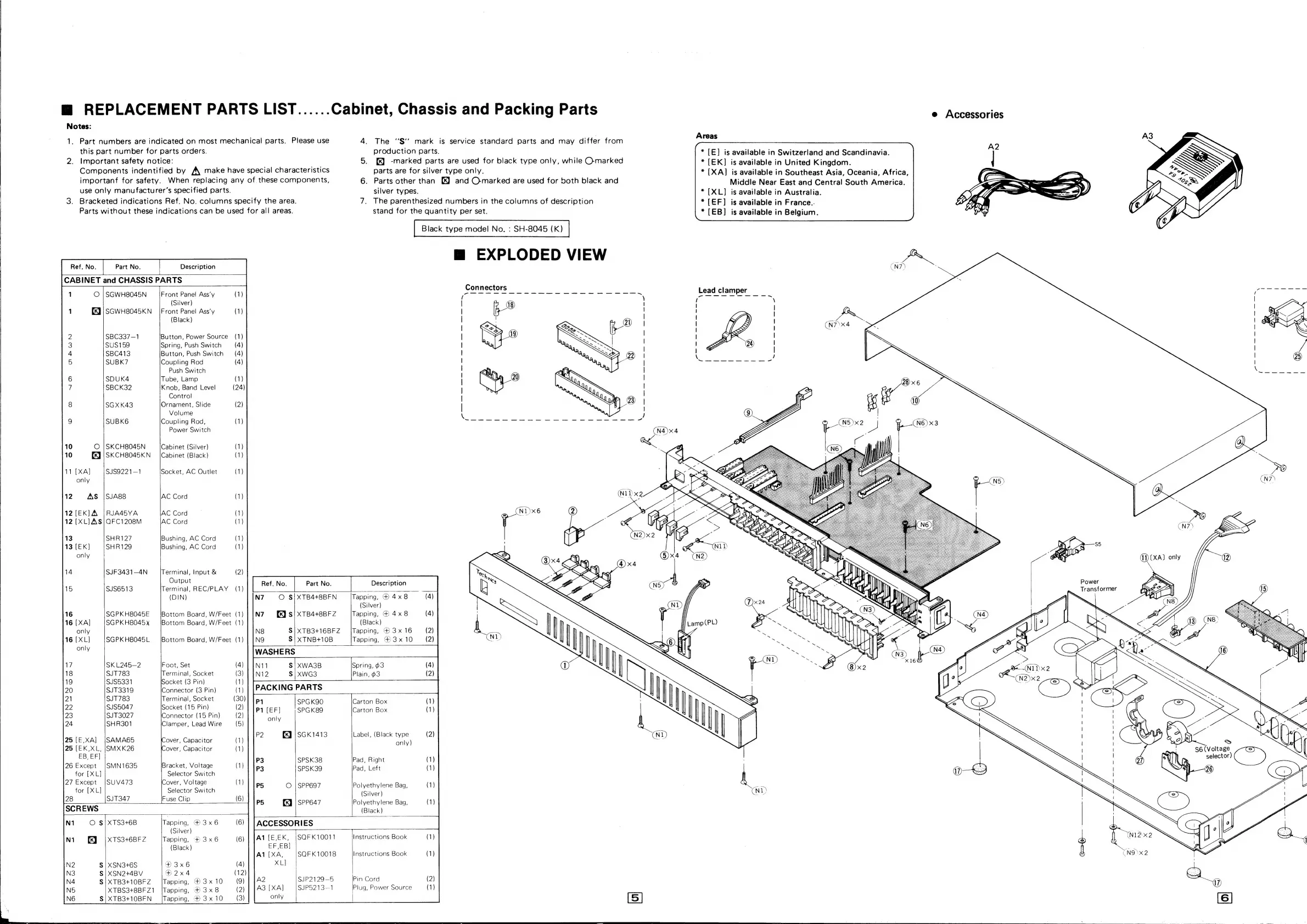

m EXPLODED VIEW
