Technics SH-8075 EH User Manual

SH-8075

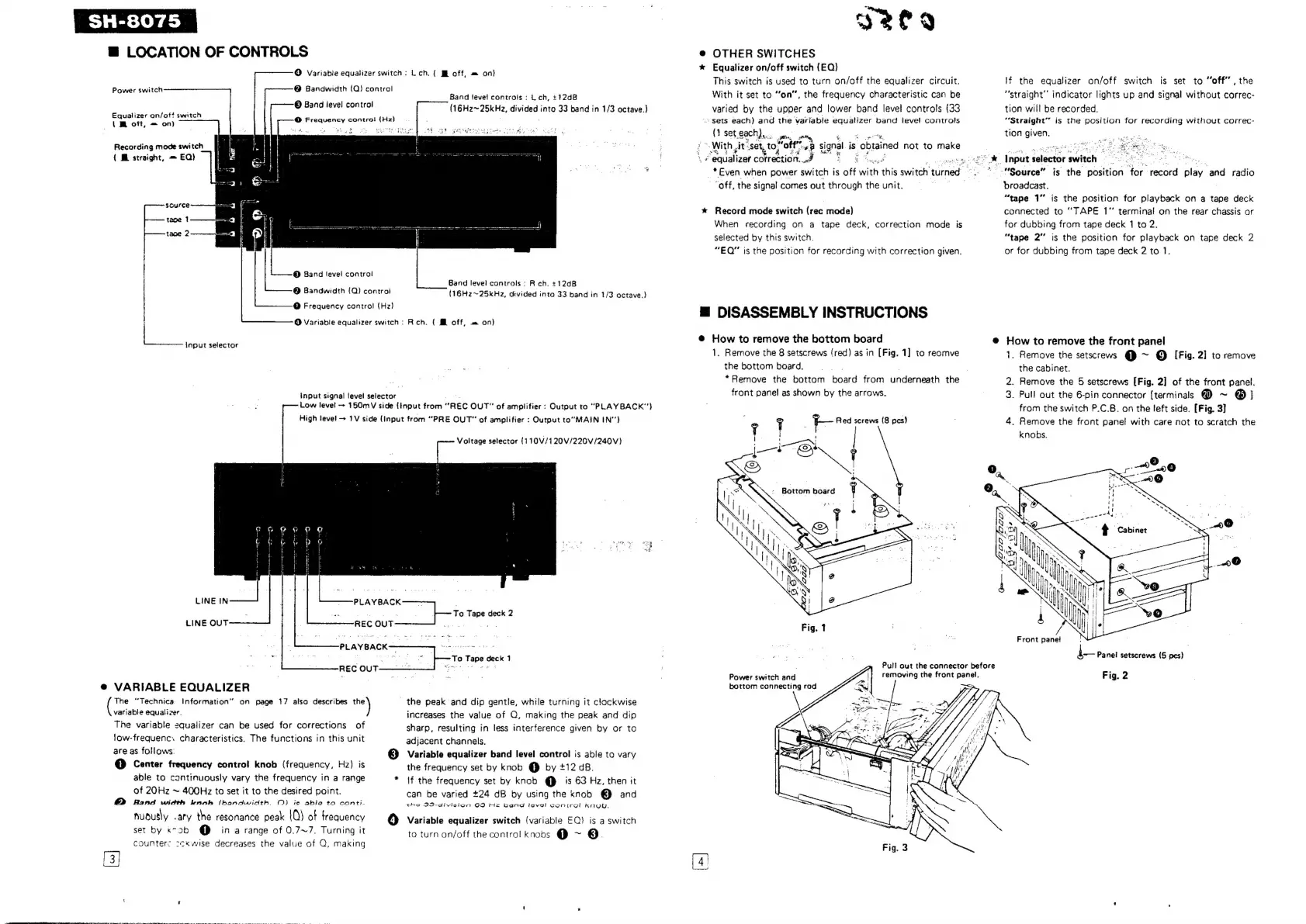

@ LOCATION OF CONTROLS
Power switch
© Band ievel control
Equalizer on/of* switch
| B oft, = on}
Recording mode switch
{ Mf straight, = EQ)
tape 7
tase 2
@ Sand level contro!
@ Bandwidth {Q) control
© Variable equalizer switch: Lch. { EE off, = on)
@ Bandwidth (Q) contral
Band jevel controls : L ch, +12d8
@ Frequency control {Hz)
Band level controls : R ch. +12dB
@ Frequency control (Hz)
@ Variable equalizer switch : Rich. ( M off, = on)
input selector
input signal level saleetec
@ VARIABLE EQUALIZER
os “Technica: Information” on page 17 also describes me)
variable equalizer.
The variable 2qualizer can be used for corrections of
low-frequenc. characteristics. The functions in this unit
are as follows:
@ Center frequency contro! knob (frequency, Hz) is
able to cantinuously vary the frequency in a range
Of 20Hz ~ 400Hz to set it to the desired point.
@ Band width knob fhandwidth. O) ie able to conti-
hudusly .aty the resonance peak {Q) of frequency
set by knob 6 @_ in a range of 0.7~7. Turning it
counters 7ckwise decreases the value of Q, making
H
9a te ri a a an an Ahn Sie ma To © iets A hab fs dee rh MN wate on
LINE IN ! ——PLAYBACK =
: ae Dba eh I To Tape deck 2
Pa REC OUT el cae sn 4
PLAYBACK—————y
=
-
Low level ~ 150m V side {Input from “REC OUT" of amplifier: Output to “"PLAYBACK"’)
High level > 1V side (Input from “PRE OUT" of amplifier : Output to“MAIN IN’)
Voltage setector (110V/120V/220V/240V)
= To Tape deck 1
the peak and dip gentle, while turning it clockwise
increases the value of Q, making the peak and dip
sharp, resulting in less interference given by or to
adjacent channels.
©) Variable equatizer band level control is able to vary
the frequency set by knob @ by +12 dB.
If the frequency set by knob @ is 63 Hz, then it
can be varied +24 dB by using the knob @ and
the 22-division GB Hz band terel conirel Kage.
4) Variable equalizer switch (variable £Q) is a switch
to turn on/off the control knobs @ ~ @.
(16H2~25kHz, divided into 33 band in 1/3 octave.)
(16Hz~25kHz, divided into 33 band in 1/3 octave.)
ook
Sa
S29
@® OTHER SWITCHES
* Equalizer on/off switch (EQ)
This switch is used to turn on/off the equalizer circuit.
With it set to “on”, the frequency characteristic can be
varied by the upper and lower band level controls (33
sets each) and the variable equalizer band level controls
(1 set gach)... hy Bas
* With Jit: ‘set, to, "off “a signal is. ‘obtained not to make
%
“off, the signal comes out through the unit.
* Record mode switch (rec mode)
When recording on a tape deck, correction mode is
selected by this switch.
“EQ” is the position for recording with correction given,
@ DISASSEMBLY INSTRUCTIONS
@ How to remove the bottom board
. Remove the 8 setscrews {red) as in [Fig. 1] to reomve
the bottom board.
*Remove the bottom board from andenesih the
front pane! as shown by the arrows.
a Red ‘< (8 pes)
pte
oi Input selectar switch : 1 ie,
“Source” is the position “for record say: and radio
‘broadcast.
% 2 > #
, “equalizer cotrection.4 flan a7
* Even when power switch is off with this switch turned yee
lf the equalizer on/off switch is set to “off’’, the
“straight” indicator lights up and signal without correc-
tion will be recorded.
“Straight” is the position for recording without correc-
tion sae
“tape 1” is the position for playback on a tape deck
connected to “TAPE 1° terminal on the rear chassis or
for dubbing from tape deck 1 to 2.
“tape 2” is the position for playback on tape deck 2
or for dubbing from tape deck 2 to 1.
How to remove the front panel
1. Remove the setscrews @ ~ @ [Fig. 2] to remove
the cabinet.
2. Remove the 5 setscrews [Fig. 2] of the front panel.
3. Pull out the 6-pin connector {terminals @ ~ @]
from the switch P.C.B. on the left side. [Fig. 3]
4. Remove the front panel with care not to scratch the
knobs.
Power switch and
bottom connecting rod
Pull out the connector before
removing the front panel.
Front panet
~— Panel setscrews (5 pes)
Fig. 2
