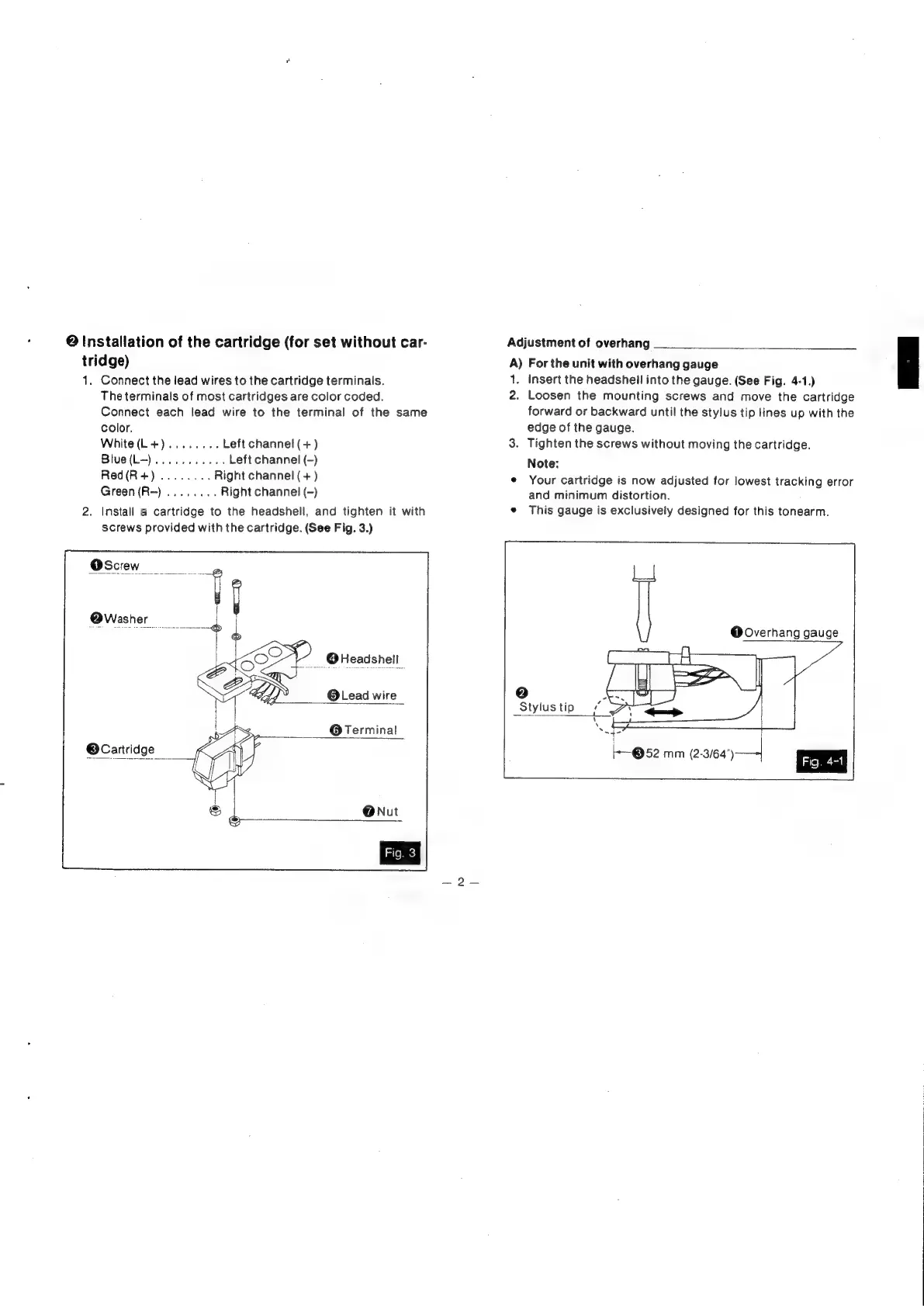

@ Installation of the cartridge (for set without car-
tridge)
1.
OCartridge
Connect the lead wires to the cartridge terminals.
The terminals of most cartridges are color coded.
Connect each lead wire to the terminal of the same
color.
White(L+)........ Left channel (+)
Blue (L~)........... Left channel (-)
Red(R+)........ Right channel (+)
Green(R-)........ Right channel (-)
Install a cartridge to the headshell, and tighten it with
screws provided with the cartridge. (See Fig. 3.)
___QHeadshell_
@Lead wire
@Termina!
Adjustment of overhang
A) For the unit with overhang gauge
1. Insert the headshell into the gauge. (See Fig. 4-1.)
2. Loosen the mounting screws and move the cartridge
forward or backward until the stylus tip lines up with the
edge of the gauge.
3. Tighten the screws without moving the cartridge.
Note:
e Your cartridge is now adjusted for lowest tracking error
and minimum distortion.
e This gauge is exclusively designed for this tonearm.
