Technics SL-5200 - Page 13

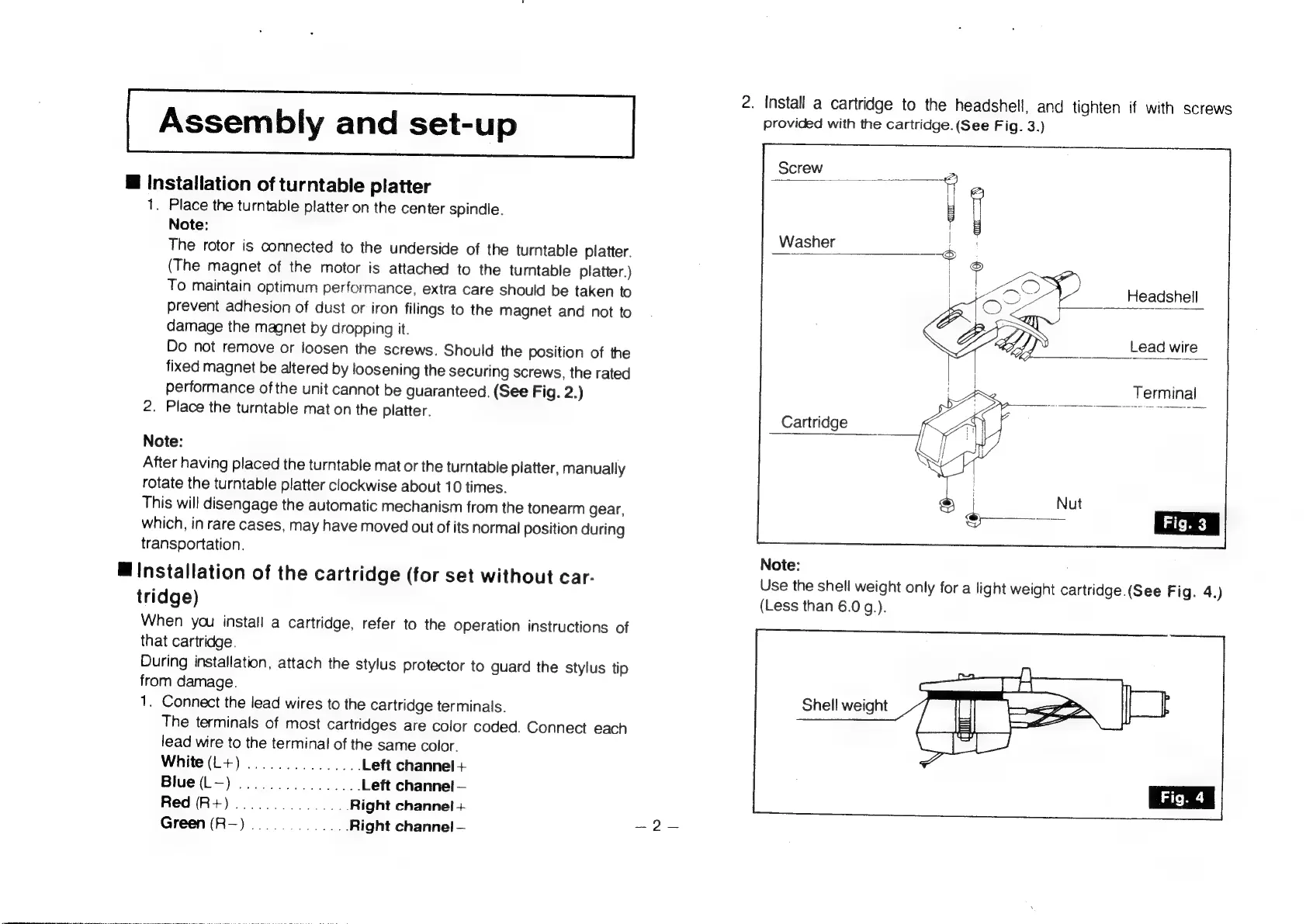

Assembly
and
set-up
@
Installation
of
turntable
platter
1.
Place
the
turntable
platter
on
the
center
spindle.
Note:
The
rotor
is
connected
to
the
underside
of
the
turntable
platter.
(The
magnet
of
the
motor
is
attached
to
the
turntable
platter.)
To
maintain
optimum
performance,
extra
care
should
be
taken
to
prevent
adhesion
of
dust
or
iron
filings
to
the
magnet
and
not
to
damage
the
magnet
by
dropping
it.
Do
not
remove
or
loosen
the
screws.
Should
the
position
of
the
fixed
magnet
be
altered
by
loosening
the
securing
screws,
the
rated
performance
ofthe
unit
cannot
be
guaranteed.
(See
Fig.
2.)
2.
Place
the
turntable
mat
on
the
platter.
Note:
After
having
placed
the
turntable
mat
or
the
turntable
platter,
manually
rotate
the
turntable
platter
clockwise
about
10
times.
This
will
disengage
the
automatic
mechanism
from
the
tonearm
gear,
which,
in
rare
cases,
may
have
moved
out
of
its
normal
position
during
transportation.
@
Installation
of
the
cartridge
(for
set
without
car-
tridge)
When
you
install
a
cartridge,
refer
to
the
operation
instructions
of
that cartridge.
During
installation,
attach
the
Stylus
protector
to
guard
the
stylus
tip
from damage.
1.
Connect
the
lead
wires
to
the
cartridge
terminals.
The
terminals
of
most
cartridges
are
color
coded.
Connect
each
lead
wre
to
the
terminal
of
the
same
color.
White
(L+)
200000000000...
Left
channel+
Blue
(L—-)
...............,
Left
channel
—
REQUIRE
eset
oosea
ae
Right
channel
+
Green
(R—-).....000.....
Right
channel
—
2.
Install
a
cartridge
to
the
headshell,
and
tighten
if
with
screws
provided
with
the
cartridge.
(See
Fig.
3.)
Washer
Headshell
Lead wire
Terminal
Cartridge
Note:
Use
the
shell
weight
only
for
a
light
weight
cartridge
(See
Fig.
4.)
(Less than 6.0 g.).
Shell weight
