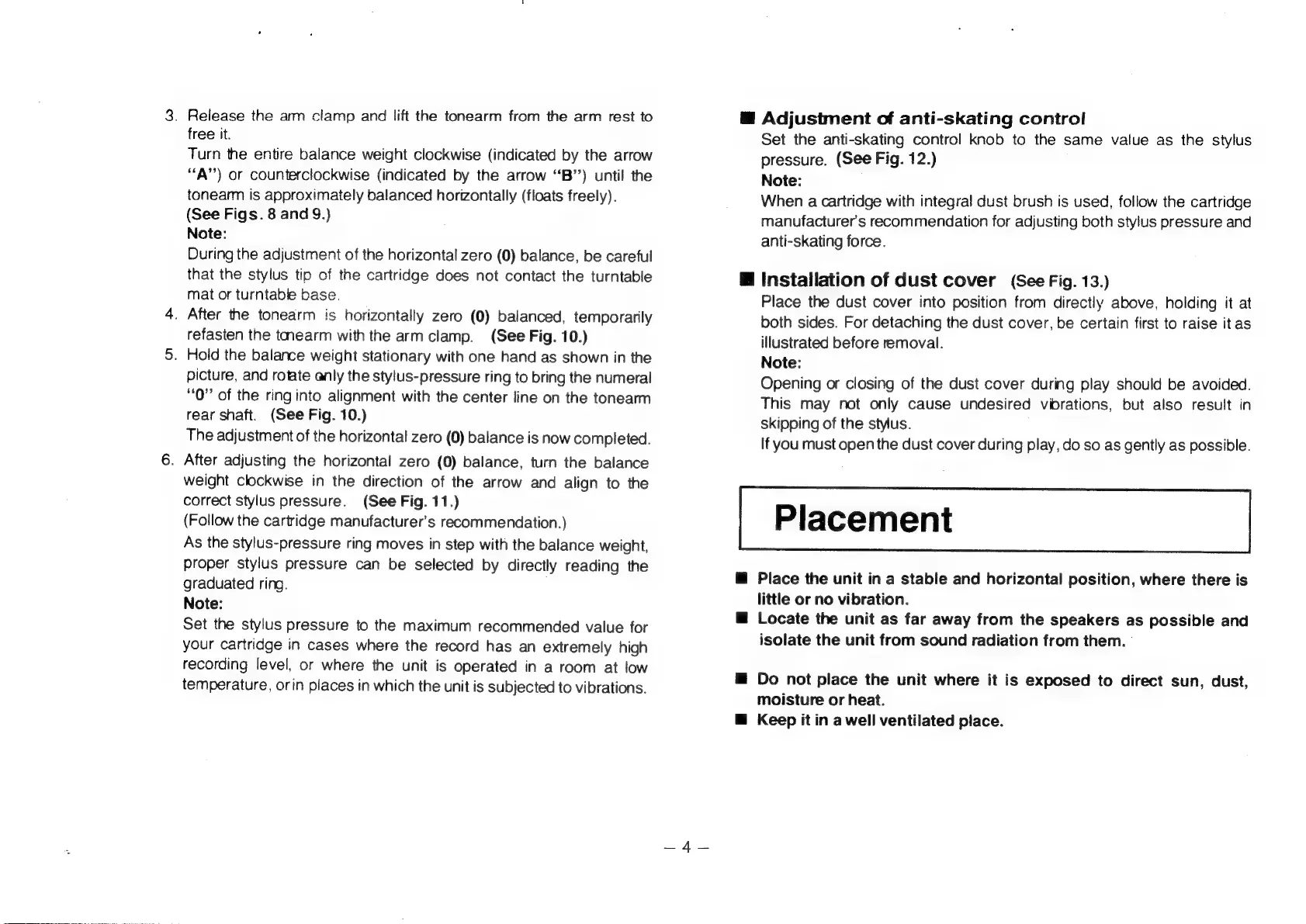

3. Release the arm clamo and lift the tonearm from the arm rest to
free it.
Turn the entire balance weight clockwise (indicated by the arrow
“A”) or counterclockwise (indicated by the arrow ‘“‘B’”’) until the
tonearm is approximately balanced horizontally (floats freely).
(See Figs. 8 and 9.}
Note:
During the adjustment of the horizontal zero (0) balance, be careful
that the stylus tip of the cartridge does not contact the turntable
mat or turntabe base.
4.
After
the
tonearm
is
horizontally
zero
(0)
balanced,
temporarily
refasten
the
tmearm
with
the
arm
clamp.
(See
Fig.
10.)
5.
Hold
the
balance
weight
stationary
with
one
hand
as
shown
in
the
picture,
and
rotate
a@nly
the
stylus-pressure
ring
to
bring
the
numeral
“0”
of
the
ring
into
alignment
with
the
center
line
on
the
tonearm
rear
shaft.
(See
Fig.
10.)
The
adjustment
of
the
horizontal
zero
(0)
balance
is
now
completed.
6.
After
adjusting
the
horizontal
zero
(0)
balance,
turn
the
balance
weight
clockwise
in
the
direction
of
the
arrow
and
align
to
the
correct
stylus
pressure.
(See
Fig.
11.)
(Follow the cartridge manufacturer's recommendation.)
As
the
stylus-pressure
ring
moves
in
step
with
the
balance
weight,
proper
stylus
pressure
can
be
selected
by
directly
reading
the
graduated
ring.
Note:
Set
the
stylus
pressure
to
the
maximum
recommended
value
for
your
cartridge
in
cases
where
the
record
has
an
extremely
high
recording
level,
or
where
the
unit
is
operated
in
a
room
at
low
temperature,
orin
places
in
which
the
unit
is
subjected
to
vibrations.
@ Adjustment of anti-skating controi
Set the anti-skating control knob to the same vaiue as the stylus
pressure. (See Fig. 12.)
Note:
When a cartridge with integral dust brush is used, follow the cartridge
manufacturer's recommendation for adjusting both stylus pressure and
anti-skating force.
@ Installation of dust cover (See Fig. 13.)
Place the dust cover into position from directly above, holding it at
both sides. For detaching the dust cover, be certain first to raise it as
illustrated before removal.
Note:
Opening or closing of the dust cover during play should be avoided.
This may not only cause undesired vibrations, but also result in
skipping of the stylus.
If you must open the dust cover during play, do so as gently as possible.
Placement
Place the unit in a stable and horizontal position, where there is
little or no vibration.
Locate the unit as far away from the speakers as possible and
isolate the unit from sound radiation from them.
Do not place the unit where it is exposed to direct sun, dust,
moisture or heat.
Keep it in a well ventilated piace.
