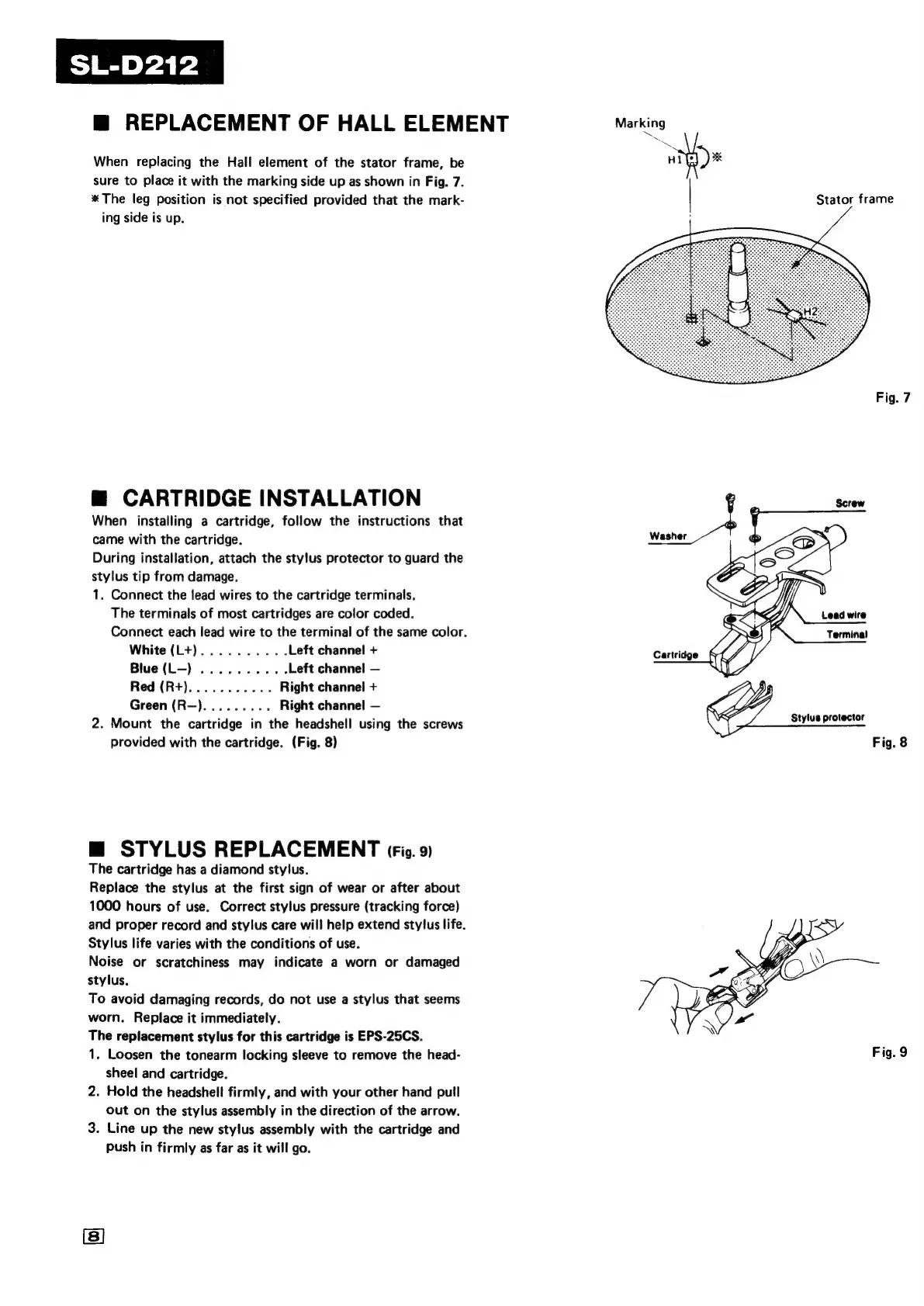

mM REPLACEMENT OF HALL ELEMENT
When replacing the Hall element of the stator frame, be
sure to place it with the marking side up as shown in Fig. 7.
* The leg position is not specified provided that the mark-
ing side is up.
@ CARTRIDGE INSTALLATION
When installing a cartridge, follow the instructions that
came with the cartridge.
During installation, attach the stylus protector to guard the
stylus tip from damage.
1. Connect the lead wires to the cartridge terminals.
The terminals of most cartridges are color coded.
Connect each lead wire to the terminal of the same color.
White (L+).......... Left channel +
Blue (L—-) .......... Left channel —
Red (R+)........... Right channel +
Green (R-)......... Right channel —
2. Mount the cartridge in the headshell using the screws
provided with the cartridge. (Fig. 8)
@ STYLUS REPLACEMENT trig. 9)
The cartridge has a diamond stylus.
Replace the stylus at the first sign of wear or after about
1000 hours of use. Correct stylus pressure (tracking force)
and proper record and stylus care will help extend stylus life.
Stylus life varies with the conditions of use.
Noise or scratchiness may indicate a worn or damaged
stylus.
To avoid damaging records, do not use a stylus that seems
worn. Replace it immediately.
The replacement stylus for this cartridge is EPS-25CS.
1. Loosen the tonearm locking sleeve to remove the head-
sheel and cartridge.
2. Hold the headshell firmly, and with your other hand pull
out on the stylus assembly in the direction of the arrow.
3. Line up the new stylus assembly with the cartridge and
push in firmly as far as it will go.
Marking
i
Ss
H1 y
| Stator frame
Fig. 7
Cartridge
Stylus protector
Fig. 8
Fig. 9
