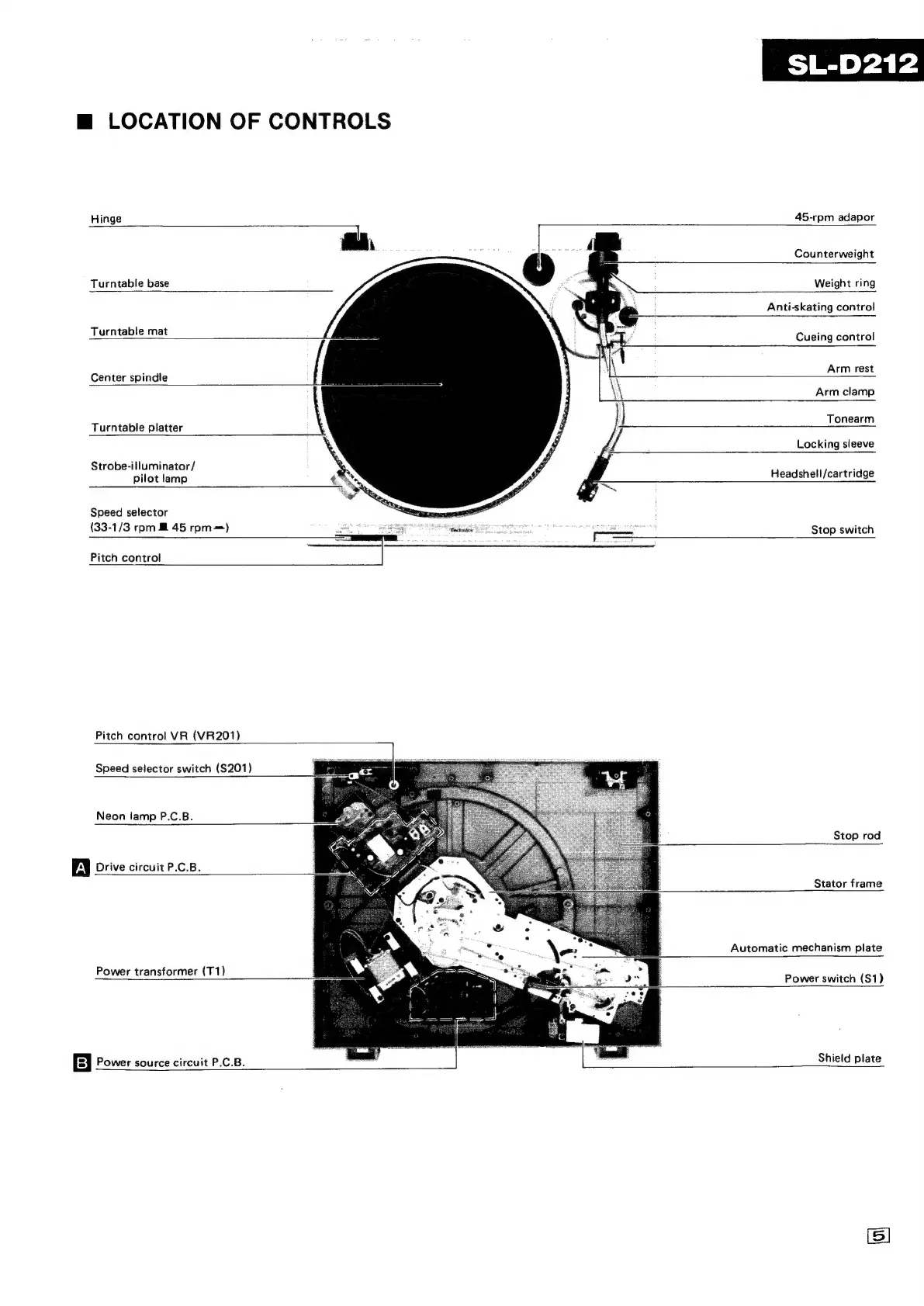

m LOCATION OF CONTROLS
Hinge 45-rpm adapor
a.
Counterweight
Turntable base Weight ring
Anti-skating control
Turntable mat
Cueing control
Arm rest
Center spindle
Arm clamp
Tonearm
Turntable platter
Locking sleeve
Strobe-illuminator/
pilot
lamp
Headshell/cartridge
Speed selector
(33-1/3 rom @ 45 rom-=)
Stop switch
Pitch control
Pitch control VR (VR201)
Speed selector switch ($201)
Neon lamp P.C.B.
Stop rod
Drive circuit P.C.B.
Stator frame
Automatic mechanism plate
Power transformer (T1)
Power switch (S1)
Shield plate
B | Power source circuit P.C.B.
