SL-D212

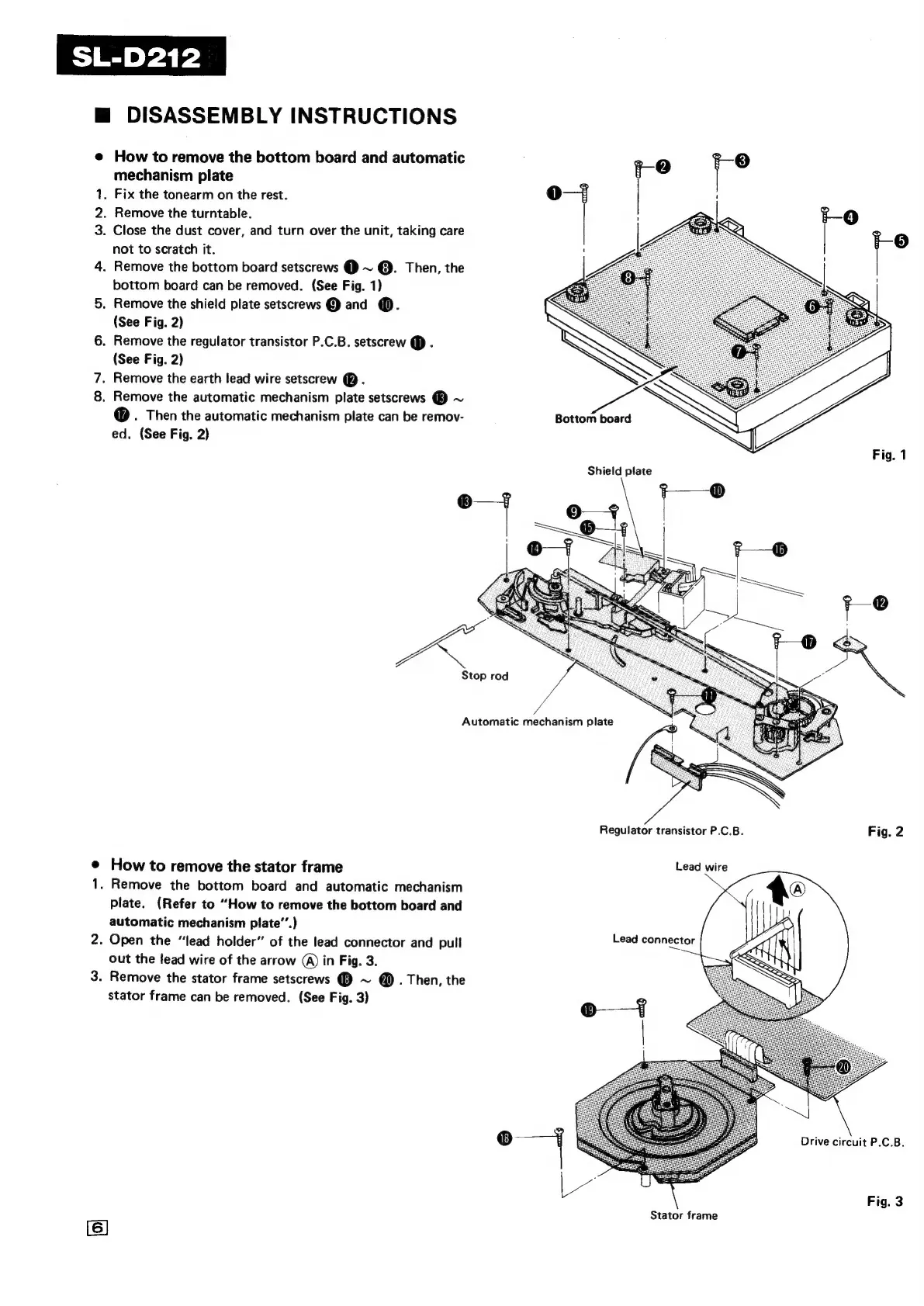

m DISASSEMBLY INSTRUCTIONS
—
GN
How to remove the bottom board and automatic
mechanism plate
. Fix the tonearm on the rest.
. Remove the turntable.
. Close the dust cover, and turn over the unit, taking care
not to scratch it.
. Remove the bottom board setscrews @ ~ ©. Then, the
bottom board can be removed. (See Fig. 1)
. Remove the shield plate setscrews @ and @.
(See Fig. 2)
. Remove the regulator transistor P.C.B. setscrew @.
(See Fig. 2)
. Remove the earth lead wire setscrew @.
. Remove the automatic mechanism plate setscrews @ ~
@ . Then the automatic mechanism plate can be remov-
ed. (See Fig. 2)
Bottom board
Shield plate
How to remove the stator frame
.
Remove
the
bottom
board
and
automatic
mechanism
plate. (Refer to “How to remove the bottom board and
automatic mechanism plate’’.)
. Open the “lead holder” of the lead connector and pull
Out the lead wire of the arrow () in Fig. 3.
.
Remove
the
stator
frame
setscrews
@
~
@).
Then,
the
stator
frame
can
be
removed.
(See
Fig.
3)
Regulator transistor P.C.B. Fig. 2
Lead wire
Drive circuit P.C.B.
Fig. 3
Stator frame
